Product Description

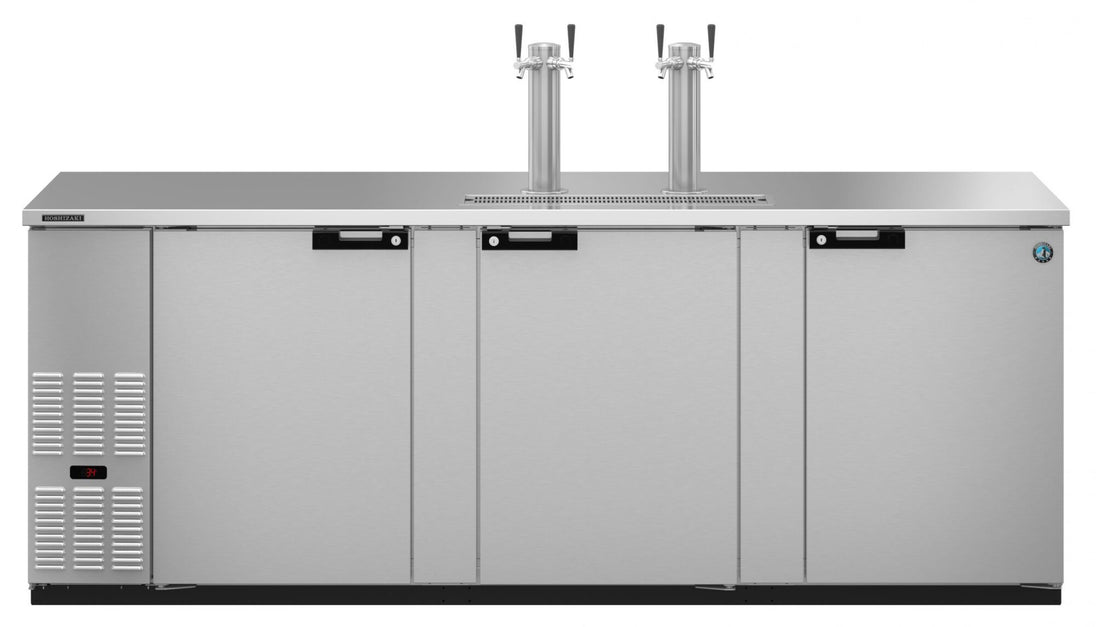

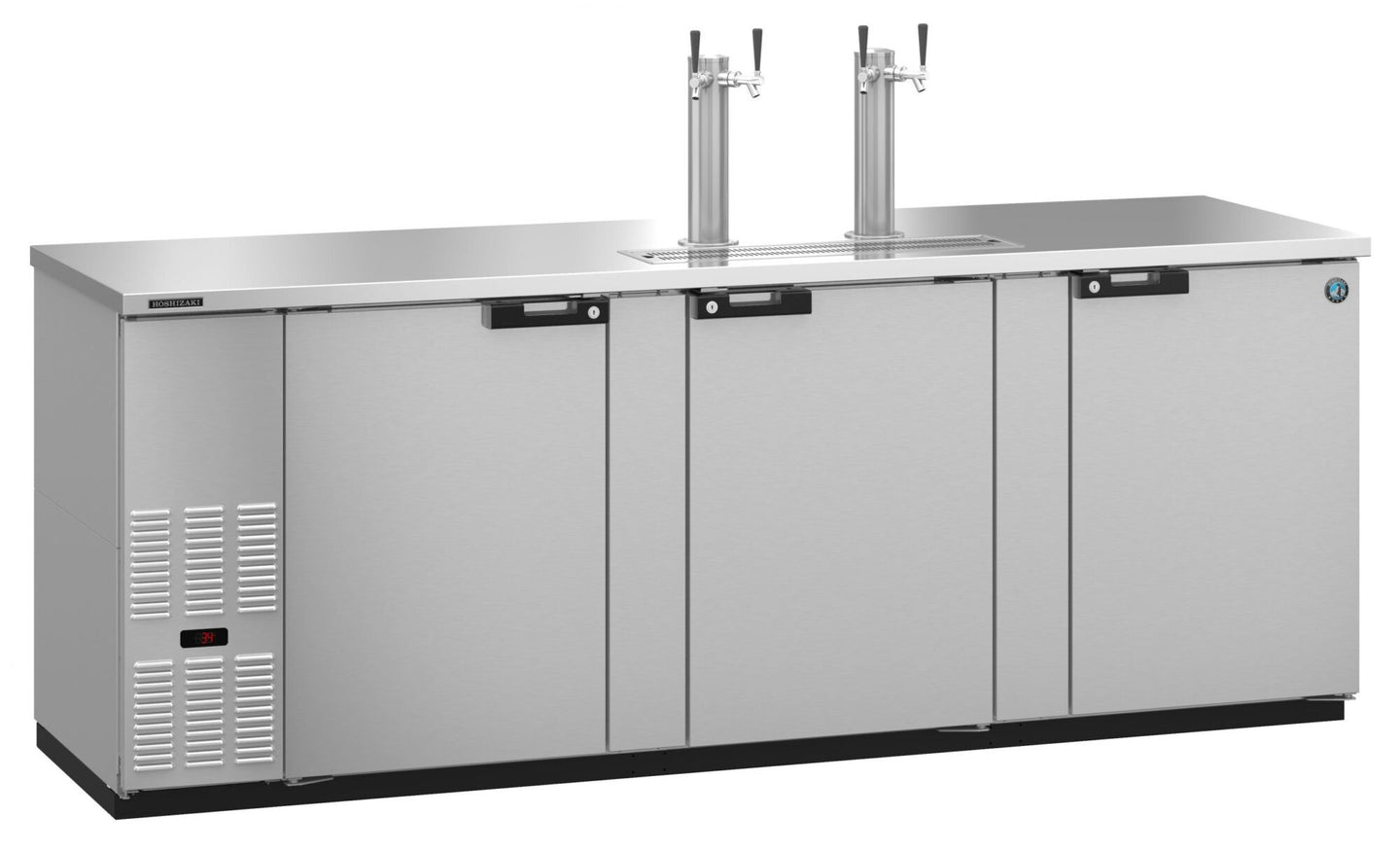

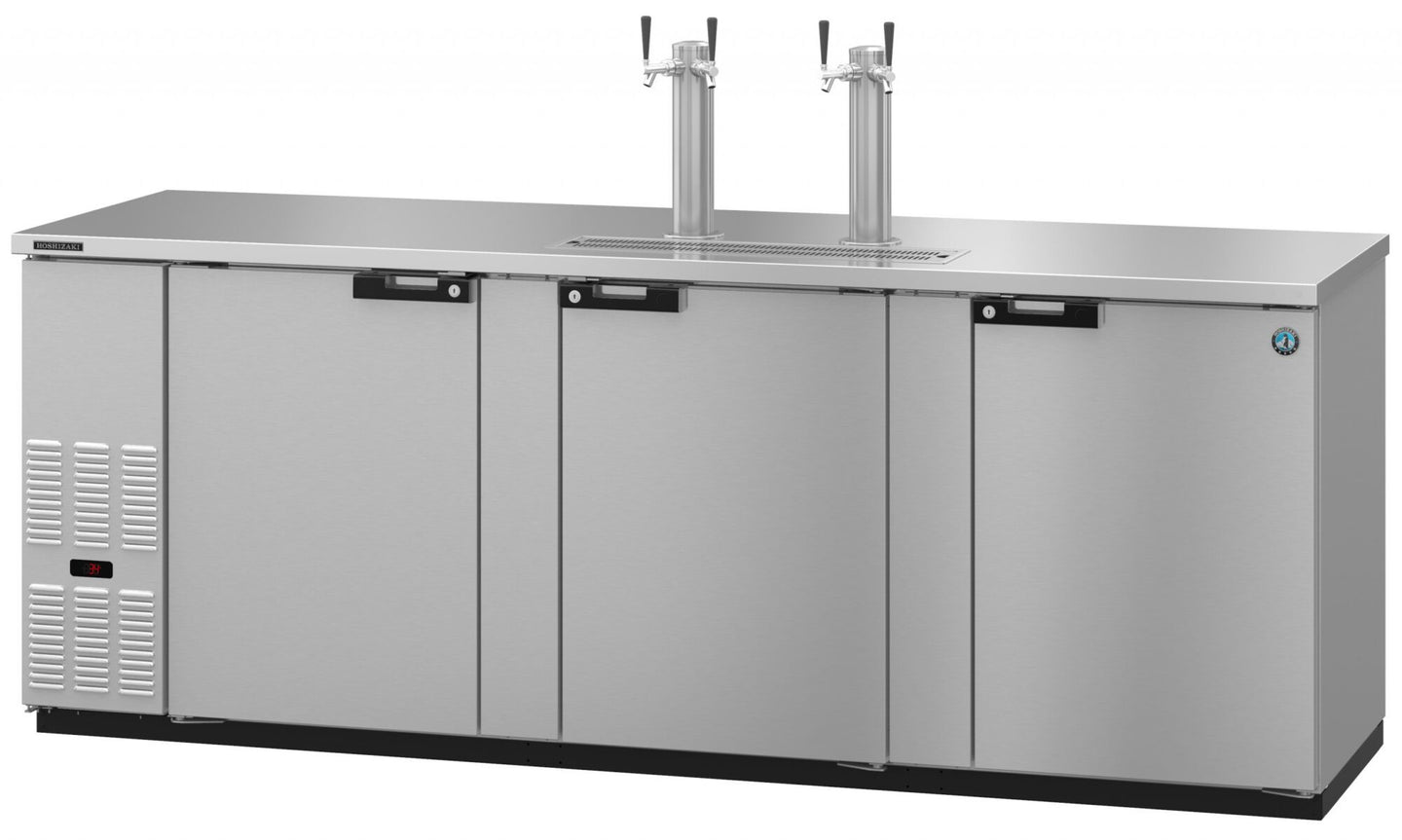

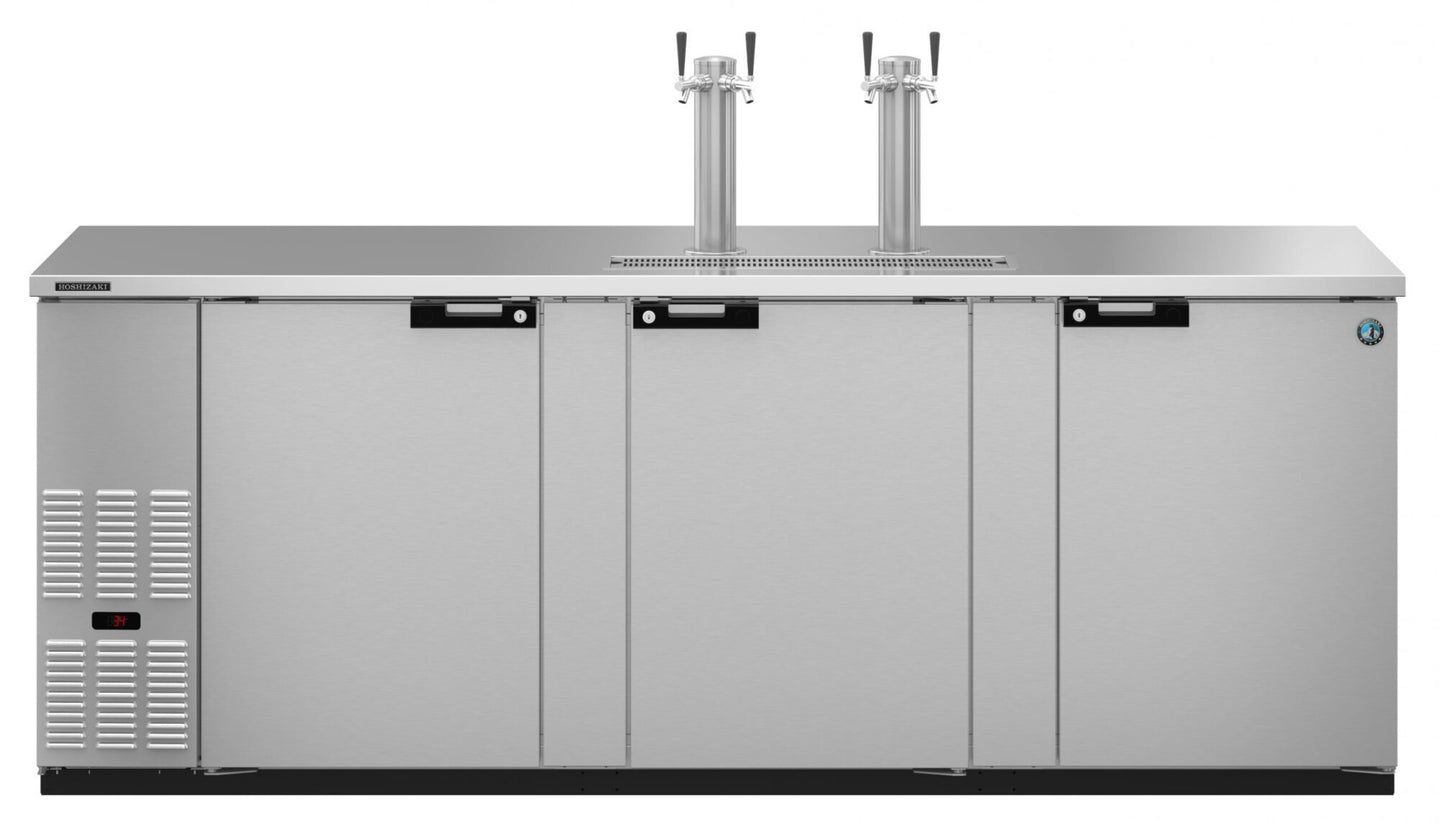

The Hoshizaki DD95-S is the stainless steel build of the largest cabinet in Hoshizaki's direct draw line: a three-section back bar cooler with 32.53 cubic feet of keg storage behind solid doors in a 95.5-inch body. It gives a high-volume bar five half barrels of capacity with the beer poured straight off the kegs.

Five Half Barrels or a Seventeen-Keg Rotation

The interior takes five 1/2 barrels, twelve slim 1/4 barrels, or seventeen 1/6 barrels, and will also run mixed loads across those formats. Seventeen sixtels in one cabinet is the figure that sets this size apart, letting a taproom hold an entire rotating list cold and tapped without a second box or a remote cooler.

Stainless Construction

The DD95-S differs from the black vinyl DD95 in its stainless steel exterior. On a cabinet approaching eight feet long the sides and ends are almost never fully concealed by bar millwork, so stainless is usually the right specification here — both for appearance and for tolerating repeated cleaning with commercial sanitizers.

Direct Draw and R290 Refrigeration

Kegs sit directly beneath the towers, so there is no trunk line to balance and no glycol chiller to maintain. Refrigeration is side-mounted and front-breathing, allowing the cabinet to install flush in a back bar run without rear service clearance despite its length. The system uses R290 natural hydrocarbon refrigerant and draws 2.5 amps from a standard 115V circuit through a 5-15P plug on an 8-foot cord.

Specifications

Model DD95-S
Configuration Three section, back bar direct draw, solid doors
Net capacity 32.53 cu ft
Keg capacity (5) 1/2 barrels, (12) slim 1/4 barrels, (17) 1/6 barrels, or mixed combinations
Exterior dimensions 95.5" W x 29" D x 36.88" H
Shipping weight 430 lbs
Crate dimensions 98.5" L x 31.25" D x 42.5" H
Electrical 115V/60/1, 2.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Refrigerant R290
Exterior finish Stainless steel
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD95-S with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
