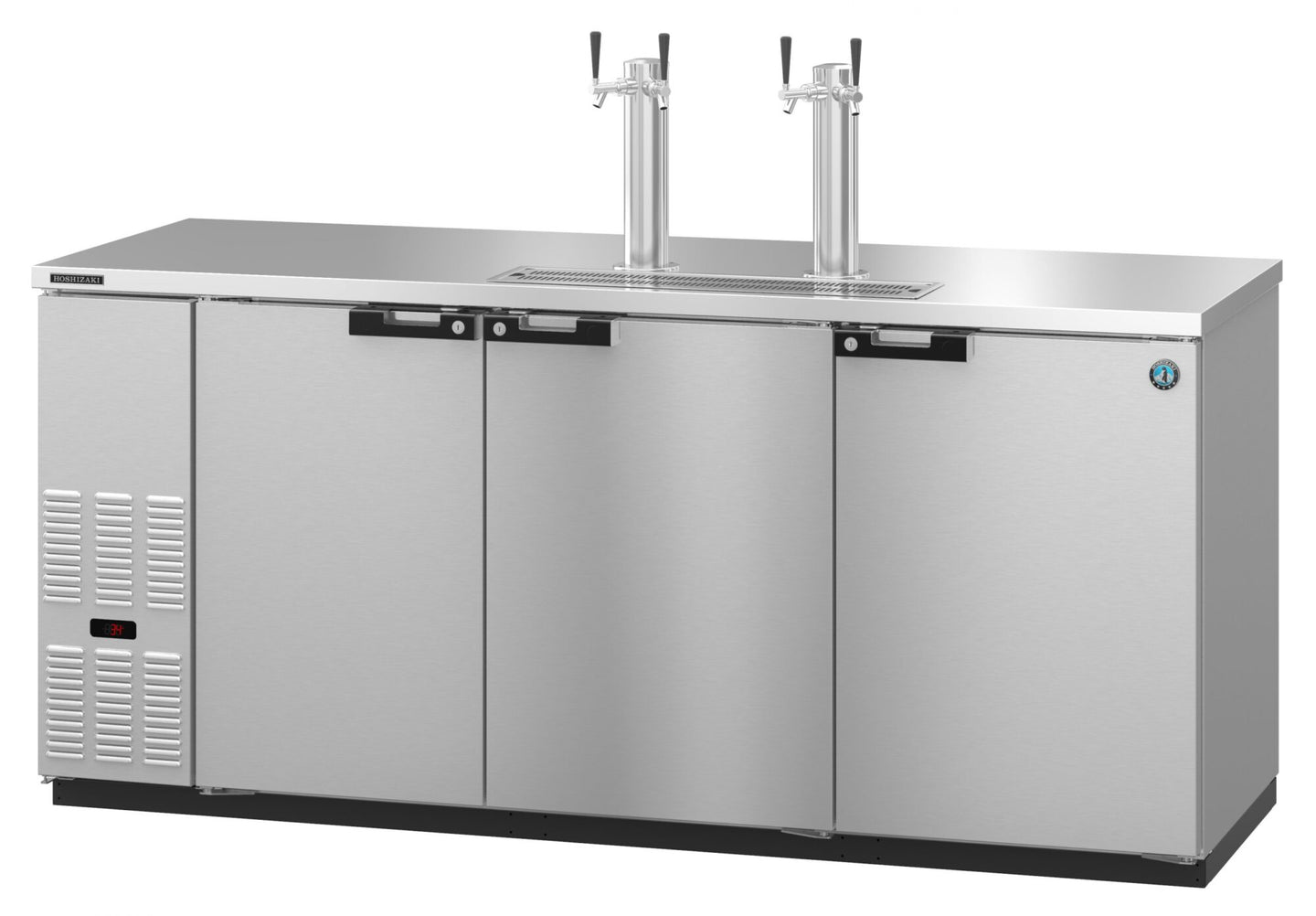

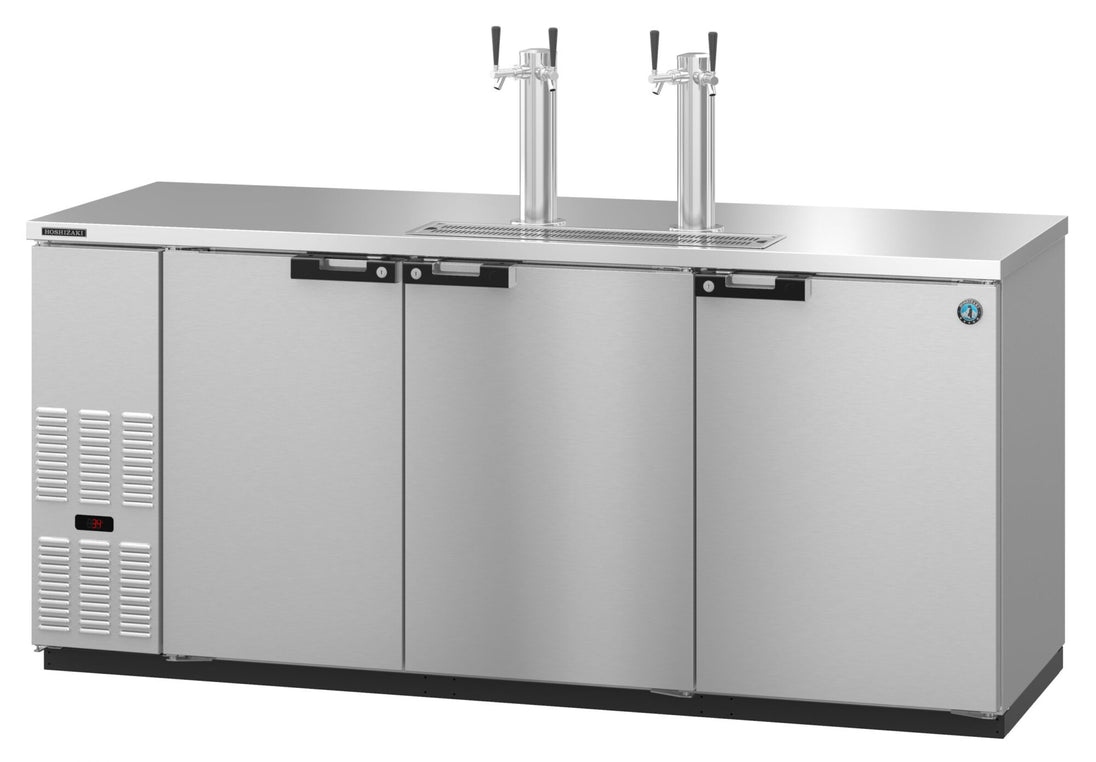

Hoshizaki DD80-S three section stainless steel back bar direct draw beer cooler with solid doors and draft towers

Product Description

The Hoshizaki DD80-S is the stainless steel build of Hoshizaki's three-section back bar direct draw cooler, holding 28.74 cubic feet of keg storage behind solid doors in an 80-inch cabinet. It gives a high-volume bar walk-in-scale keg capacity with the beer still poured directly off the kegs beneath the towers.

Keg Capacity Across Three Sections

The interior takes four 1/2 barrels, ten slim 1/4 barrels, fourteen 1/6 barrels, or mixed combinations. Because the cabinet is divided into three sections, the keg load can be organised deliberately rather than shuffled within one shared cavity, which matters when staff are changing kegs mid-service.

Stainless Construction

The DD80-S differs from the DD80 in its stainless steel exterior. On a cabinet this long the sides are rarely fully concealed, so the stainless finish is usually the practical choice for island bars, open service wells, and any installation exposed to guests or to regular sanitizer wipe-down.

Front-Breathing Refrigeration and R290

Refrigeration is side-mounted and breathes from the front, so even at 80 inches wide the unit installs flush into a back bar run with no rear clearance. The system uses R290 natural hydrocarbon refrigerant and draws 2.5 amps from a standard 115V circuit through a 5-15P plug on an 8-foot cord.

Specifications

Model DD80-S
Configuration Three section, back bar direct draw, solid doors
Net capacity 28.74 cu ft
Keg capacity (4) 1/2 barrels, (10) slim 1/4 barrels, (14) 1/6 barrels, or mixed combinations
Exterior dimensions 80" W x 29" D x 36.88" H
Shipping weight 385 lbs
Crate dimensions 82.5" L x 31.25" D x 42.5" H
Electrical 115V/60/1, 2.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Refrigerant R290
Exterior finish Stainless steel
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD80-S with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
