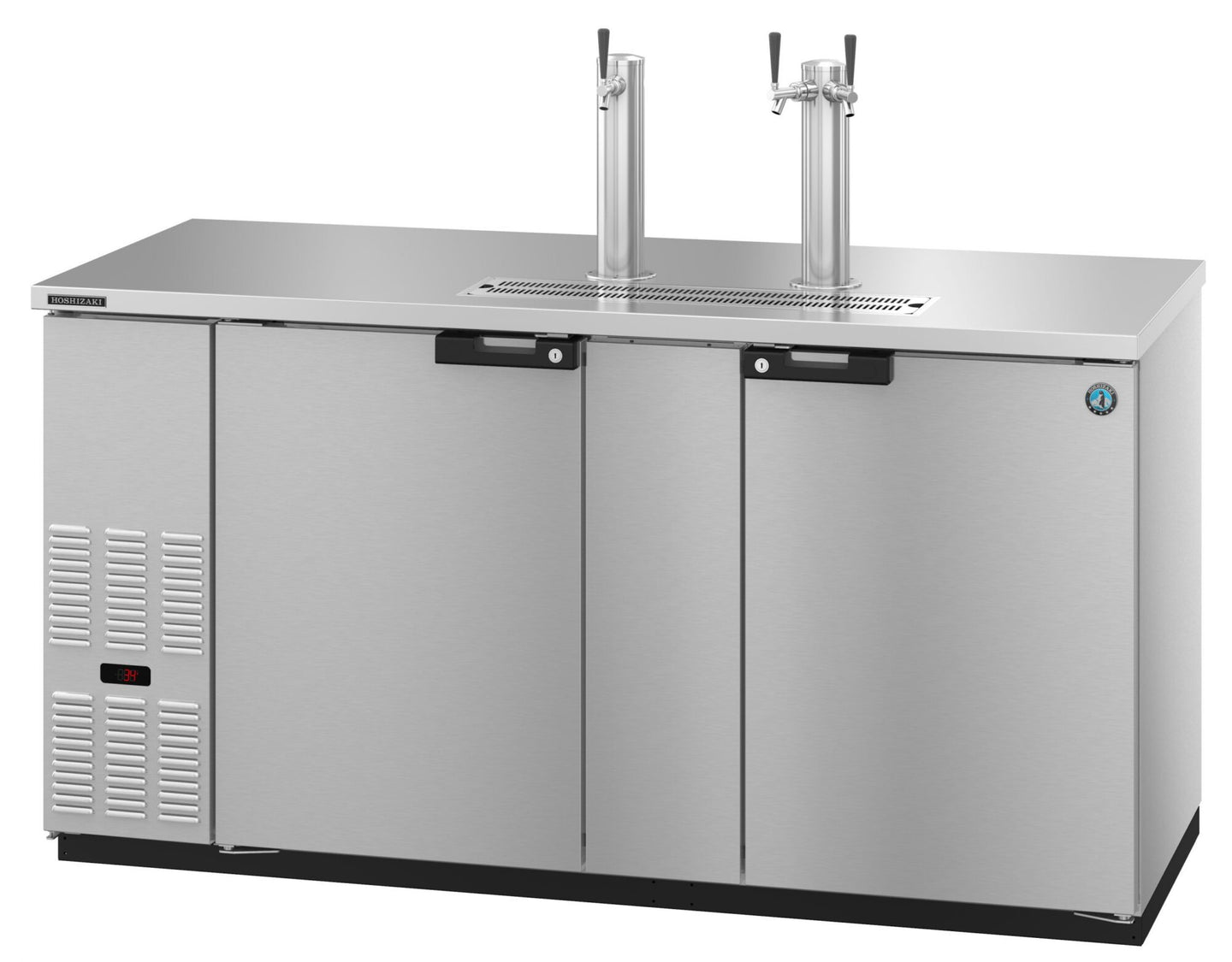

Hoshizaki DD69-S two section stainless steel back bar direct draw beer cooler with solid doors and draft towers

Product Description

The Hoshizaki DD69-S is the stainless steel build of Hoshizaki's 69.5-inch two-section back bar direct draw cooler, holding 21.8 cubic feet of keg storage behind solid doors. It is sized for bars that want a deep tap rotation in one cabinet and need an exterior finish that stands up to a visible, high-traffic installation.

Keg Capacity

The interior takes three 1/2 barrels, eight slim 1/4 barrels, twelve 1/6 barrels, or mixed combinations of those formats. The twelve-sixtel figure is the number that distinguishes this size class: it supports a genuinely broad craft rotation without a second cabinet or a remote keg room.

Stainless Construction

Where the DD69 uses black vinyl, the DD69-S is stainless steel. That is the deciding factor for island bars, open service wells, and any run where the cabinet sides face guests or take repeated cleaning with commercial sanitizers.

Direct Draw with Off-Cycle Defrost

Kegs sit directly under the towers, keeping the beer path short and removing the need for glycol chilling or long-line balancing. Defrost runs automatically on the off cycle, so no heater adds load and no defrost schedule has to be worked around service. The side-mounted, front-breathing refrigeration allows flush back bar installation, uses R290 natural hydrocarbon refrigerant, and draws 2.5 amps from a standard 115V circuit.

Specifications

Model DD69-S
Configuration Two section, back bar direct draw, solid doors
Net capacity 21.8 cu ft
Keg capacity (3) 1/2 barrels, (8) slim 1/4 barrels, (12) 1/6 barrels, or mixed combinations
Exterior dimensions 69.5" W x 29" D x 36.88" H
Shipping weight 360 lbs
Crate dimensions 72.5" L x 31.25" D x 42.5" H
Electrical 115V/60/1, 2.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Refrigerant R290
Defrost Automatic, off cycle
Exterior finish Stainless steel
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD69-S with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
