Product Description

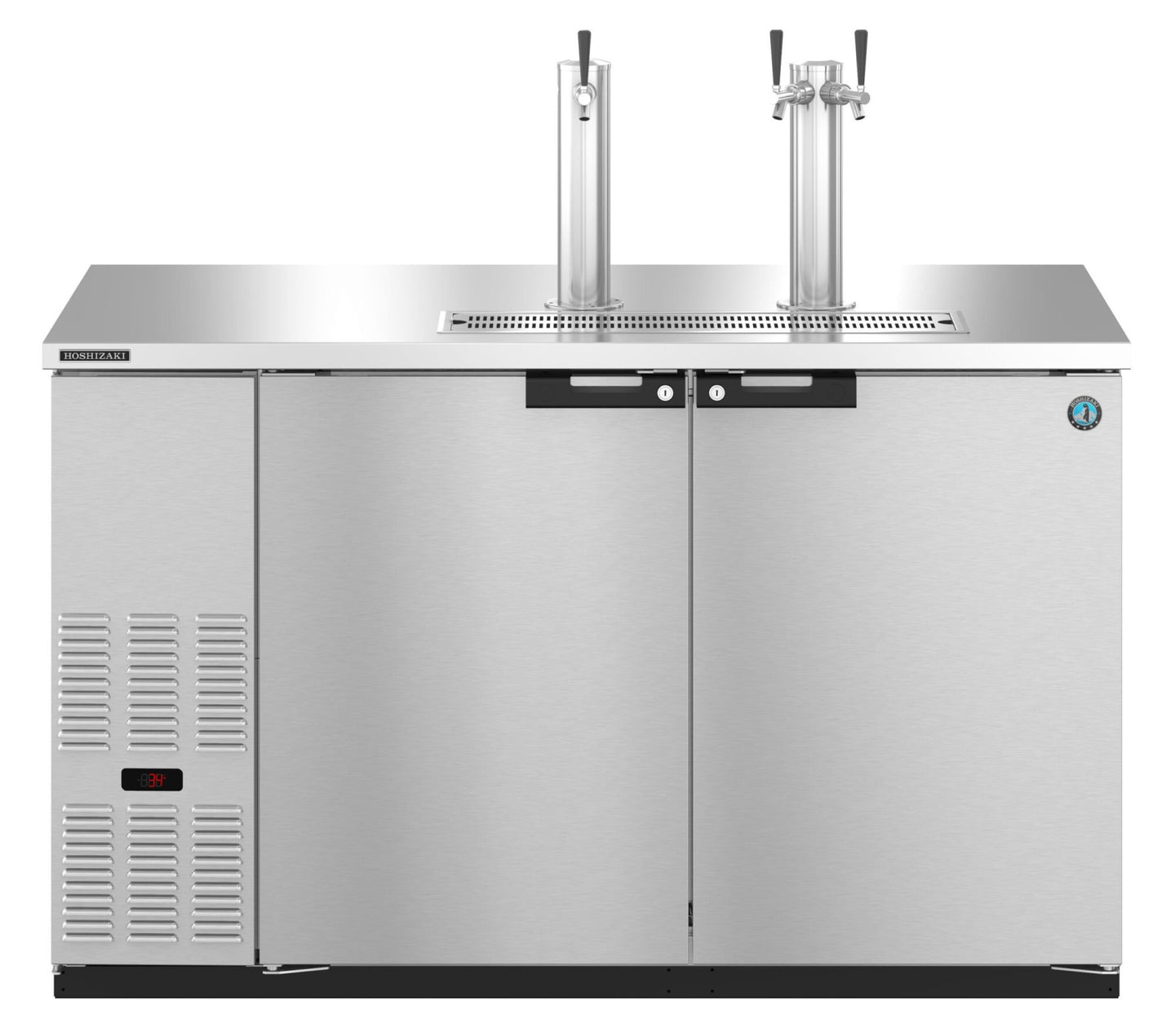

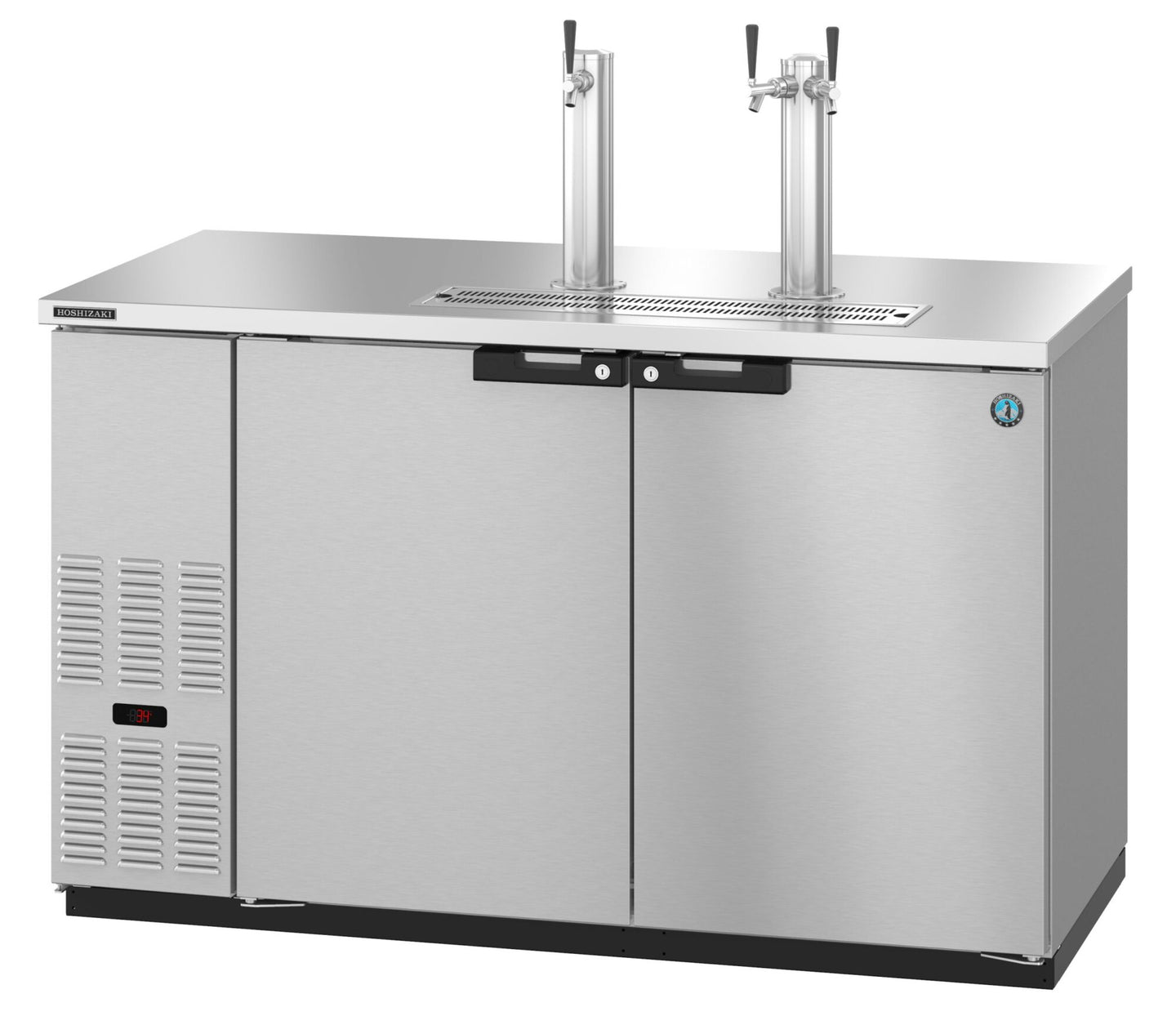

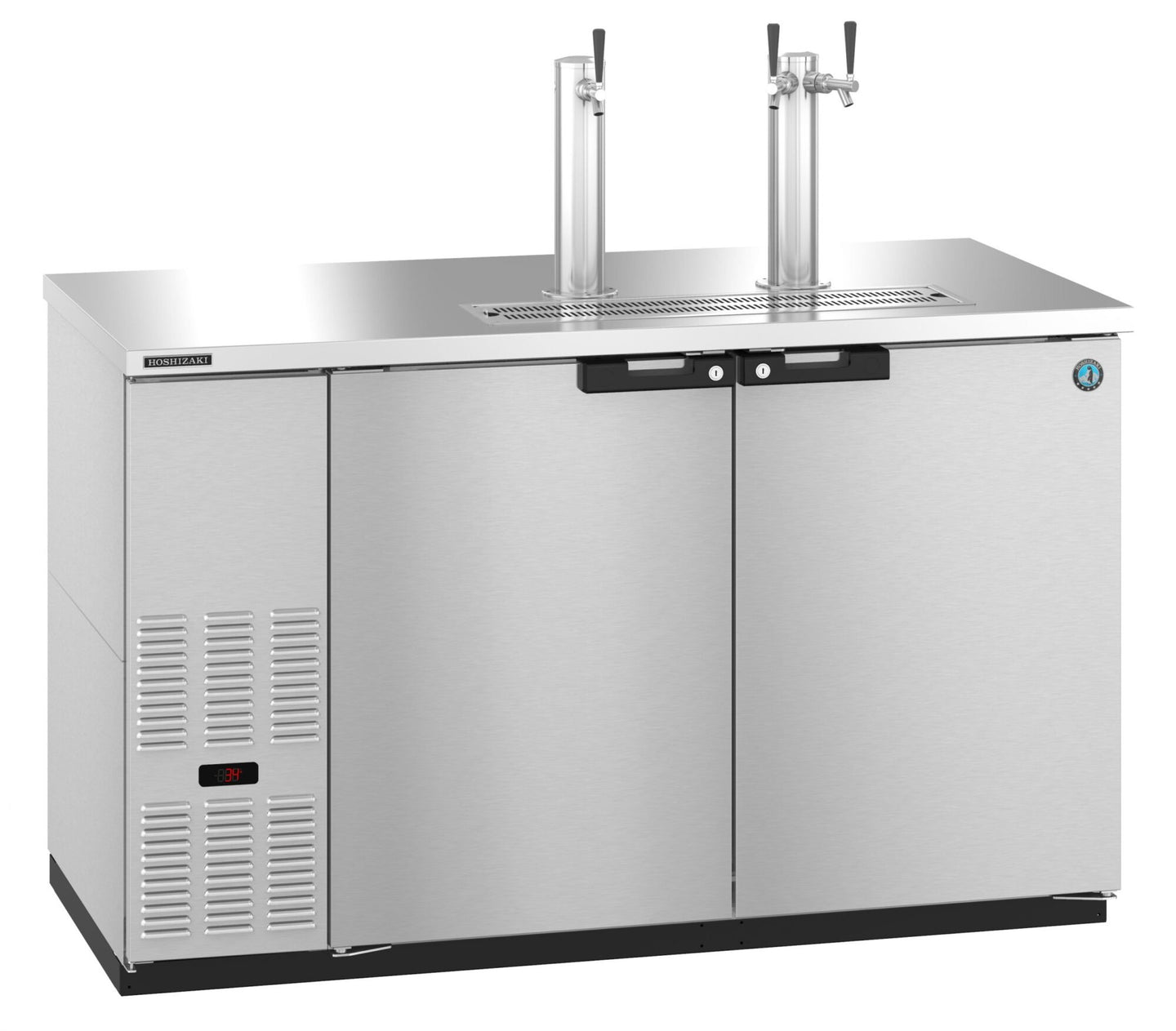

The Hoshizaki DD59-S is the stainless steel build of Hoshizaki's two-section back bar direct draw cooler. It holds 18.45 cubic feet of keg storage behind solid doors in a 59.5-inch cabinet and dispenses through dual insulated towers, so a bar can pour multiple draft lines without a remote keg room or glycol chiller.

Keg Capacity and Mixing Options

The cabinet holds three 1/2 barrels, and the interior also accommodates two 1/2 barrels with one 1/4 barrel, six slim 1/4 barrels, eight 1/6 barrels, or one 1/2 barrel with a slim 1/4 barrel and three 1/6 barrels. Running the small formats lets a bar keep a rotating craft list on tap alongside its volume sellers without adding a second cabinet.

Stainless Construction

Where the DD59 uses a black vinyl exterior, the DD59-S is stainless steel throughout the exterior, top, and interior. That makes it the right choice for island bars, open service wells, and any installation where the cabinet sides are visible to guests or subject to frequent wipe-down with commercial cleaners.

Direct Draw and R290 Refrigeration

Kegs sit directly beneath the towers, so beer travels only a short run to the faucet and does not need the line balancing a remote system demands. Refrigeration is side-mounted and front-breathing, permitting a flush back bar installation, and the system is charged with R290 natural hydrocarbon refrigerant. It runs on 115V at 2.5 amps through a 5-15P plug on an 8-foot cord.

Specifications

Model DD59-S
Configuration Two section, back bar direct draw, solid doors
Net capacity 18.45 cu ft
Keg capacity (3) 1/2 barrels, (2) 1/2 barrels + (1) 1/4 barrel, (6) slim 1/4 barrels, (8) 1/6 barrels, or (1) 1/2 barrel + (1) slim 1/4 barrel + (3) 1/6 barrels
Exterior dimensions 59.5" W x 29" D x 36.88" H
Shipping weight 345 lbs
Crate dimensions 62.5" L x 31.25" D x 42.5" H
Electrical 115V/60/1, 2.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Refrigerant R290
Exterior finish Stainless steel
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD59-S with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
