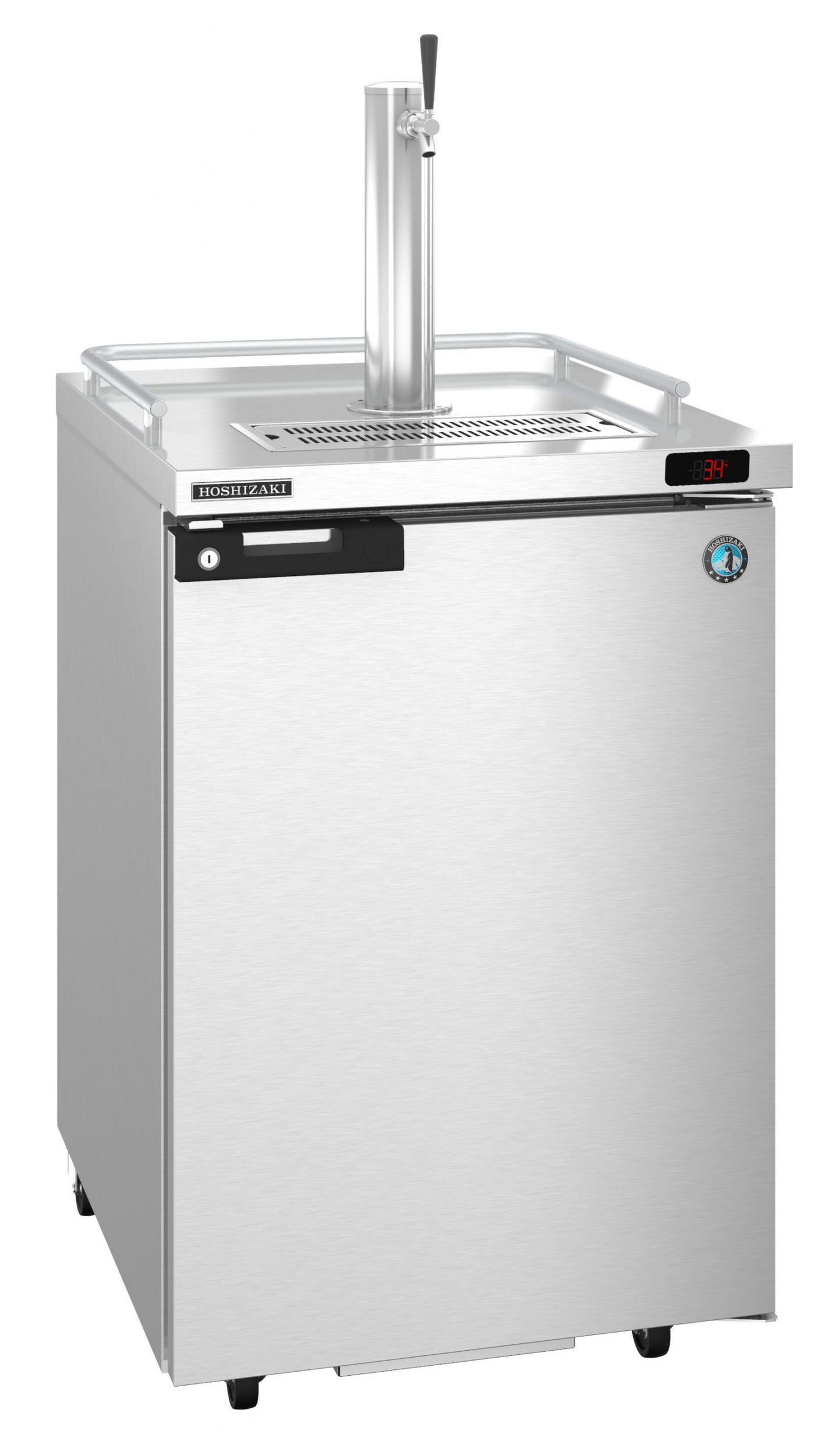

Hoshizaki DD24-S single section stainless steel back bar direct draw beer cooler with draft tower

Product Description

The Hoshizaki DD24-S is the stainless steel version of Hoshizaki's single-section back bar direct draw cooler. It stores 7.46 cubic feet of kegs behind a lockable solid swing door and pours through a polished stainless steel insulated tower fitted with a plated brass faucet, giving a bar full draft service from a cabinet under 25 inches wide.

Keg Capacity and Layout

The interior is sized around keg footprints rather than shelving. It takes one 1/2 barrel, one 1/4 barrel, two slim 1/4 barrels, or four 1/6 barrels, so the same box works as a single house-beer tap or as a compact four-keg rotating selection when back bar length is the limiting factor.

Stainless Exterior and Door Lock

Unlike the black vinyl DD24, the DD24-S is finished in stainless steel on the exterior as well as the top and interior, which matters when the cabinet is exposed on an island bar, a service well, or any run where guests see the sides. The swing door locks, making the unit practical for portable kegerator duty at events or in venues where the bar is left unattended between services.

Side-Mount Refrigeration and R290

Refrigeration is side-mounted and front-breathing, so the cabinet can be built flush into a back bar without rear service clearance. It runs on R290 natural hydrocarbon refrigerant, draws 1.5 amps from a standard 115V outlet through a 5-15P plug on an 8-foot cord, and is rated at 1.32 kWh per day.

Specifications

Model DD24-S
Configuration One section, back bar direct draw, solid door
Net capacity 7.46 cu ft
Keg capacity (1) 1/2 barrel, (1) 1/4 barrel, (2) slim 1/4 barrels, or (4) 1/6 barrels
Exterior dimensions 24.88" W x 30" D x 39.38" H
Shipping weight 175 lbs
Crate dimensions 34.5" L x 29" D x 45.5" H
Electrical 115V/60/1, 1.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Energy consumption 1.32 kWh/day
Refrigerant R290
Exterior finish Stainless steel
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD24-S with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
