Product Description

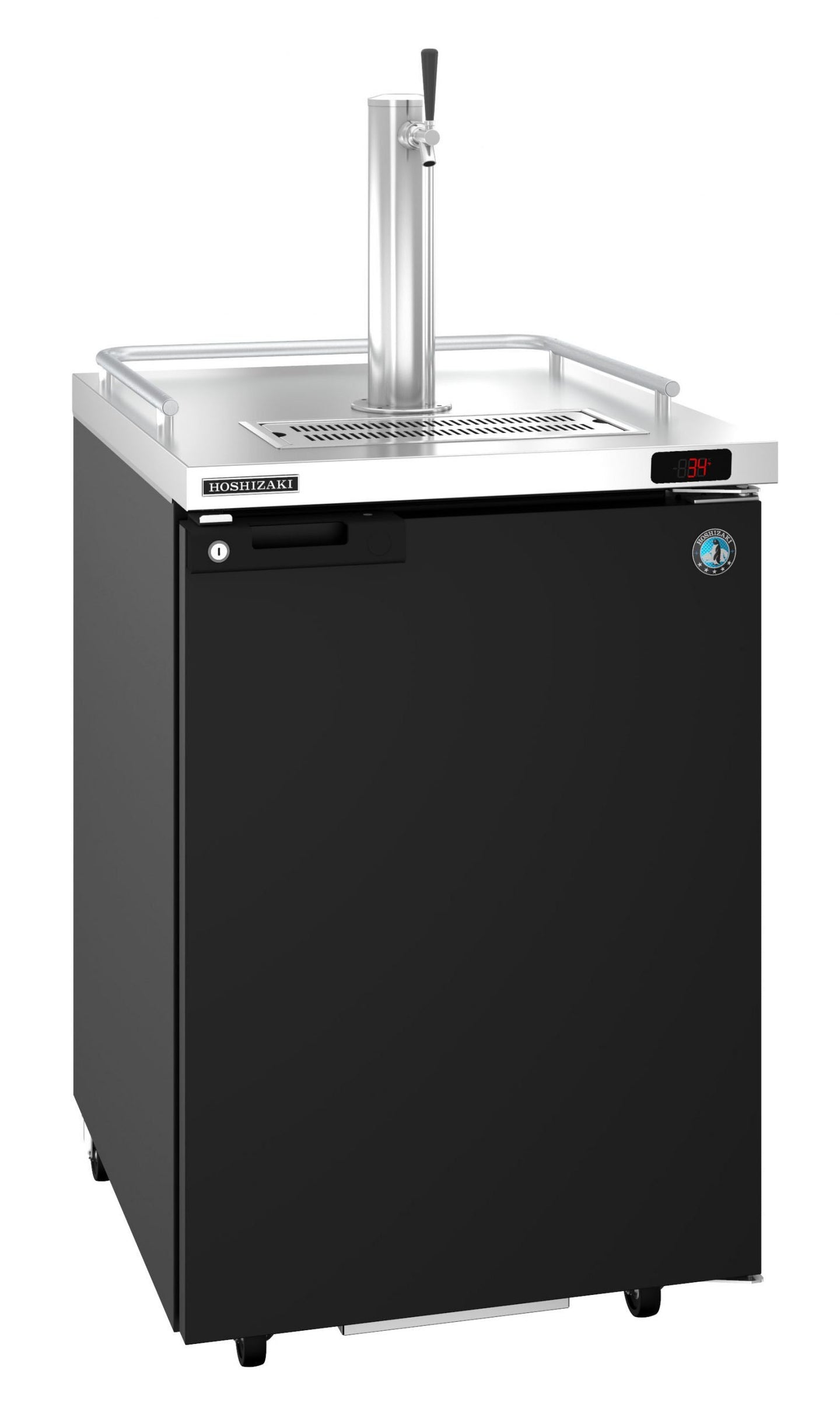

The Hoshizaki DD24 is a single-section back bar direct draw cooler that stores kegs and pours draft beer from one compact cabinet. It holds 7.46 cubic feet of refrigerated keg space behind a solid swing door and dispenses through a polished stainless steel insulated tower, letting a bar run draft service without dedicating a walk-in or remote keg room to it.

Keg Capacity and Layout

Keg count, not shelf space, is what decides whether a direct draw box fits an operation. The DD24 interior accepts one 1/2 barrel, one 1/4 barrel, two slim 1/4 barrels, or four 1/6 barrels. That range lets the same cabinet serve as a single-tap house-beer unit or as a four-keg rotating craft lineup where back bar length is tight.

Side-Mount Refrigeration and R290

The refrigeration system sits at the side of the cabinet and breathes from the front, so the unit can be set into a continuous back bar run without leaving rear service clearance. It charges with R290, a natural hydrocarbon refrigerant with far lower global warming potential than the R-134a used in earlier direct draw models. Draw is 1.5 amps on a standard 115V circuit with a 5-15P plug and an 8-foot cord, and rated consumption is 1.32 kWh per day.

Black Vinyl Exterior

The DD24 is finished in black vinyl with a stainless steel top and interior. It is the lower-cost finish in the pairing with the DD24-S, which is the same cabinet in full stainless steel; choose the DD24 where the unit sits behind a bar die and the exterior sides are not on display.

Specifications

Model DD24
Configuration One section, back bar direct draw, solid door
Net capacity 7.46 cu ft
Keg capacity (1) 1/2 barrel, (1) 1/4 barrel, (2) slim 1/4 barrels, or (4) 1/6 barrels
Exterior dimensions 24.88" W x 30" D x 39.38" H
Shipping weight 175 lbs
Crate dimensions 34.5" L x 29" D x 45.5" H
Electrical 115V/60/1, 1.5 amps
Cord and plug 8 ft cord, NEMA 5-15P
Energy consumption 1.32 kWh/day
Refrigerant R290
Exterior finish Black vinyl, stainless steel top
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the DD24 with a three-year parts and labor warranty on the entire machine and a five-year warranty on the compressor.
