Product Description

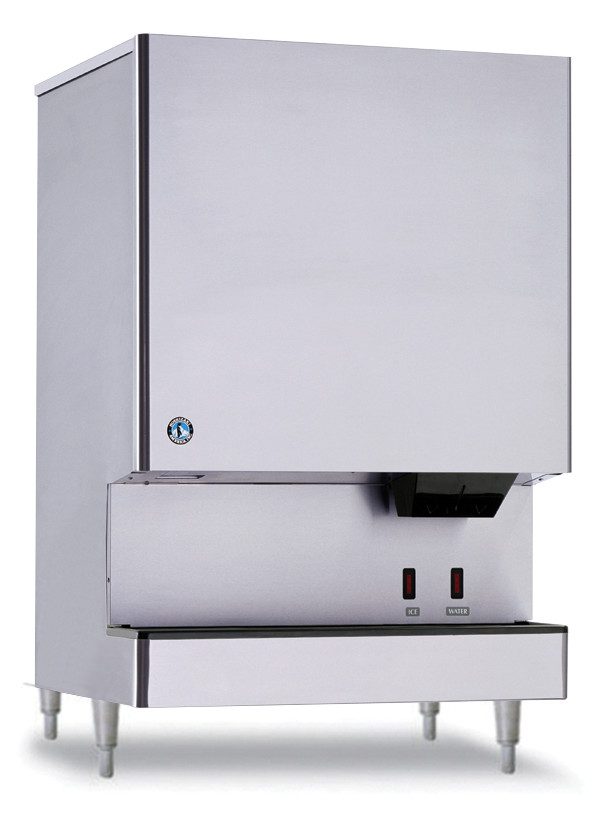

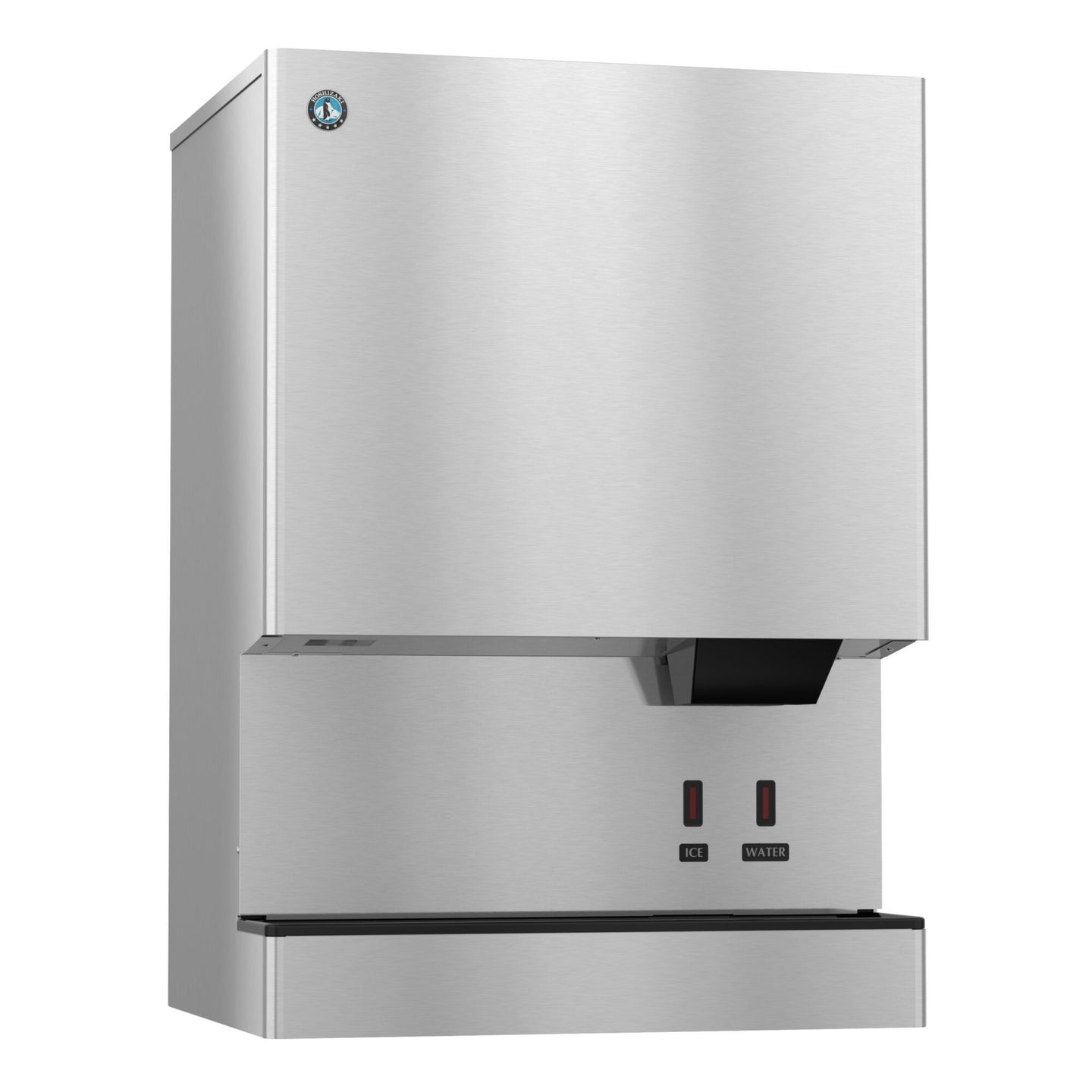

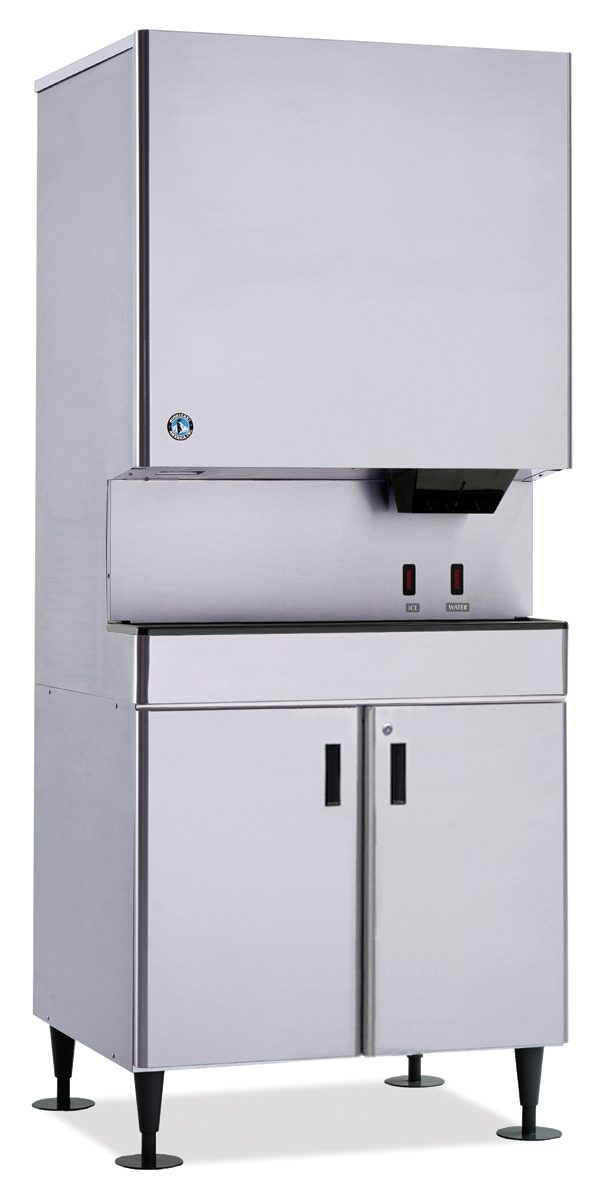

The DCM-751BWH-OS is a water-cooled cubelet icemaker and dispenser in one body, producing up to 782 lbs a day with 70 lbs of built-in storage. A hands-free LED remote sensor dispenses without anyone touching the machine, which is the reason units like this end up in hospitals, cafeterias and self-service beverage stations.

Hands-Free Dispensing

The remote sensor triggers on a cup rather than a lever or a button. Nothing is touched, so nothing is contaminated between users, and there is no paddle to break. In a self-service environment that is both a hygiene argument and a maintenance one.

Water-Cooled Condenser

Water cooling is the right choice where the machine sits in a hot equipment room or where discharged condenser heat would fight the building's air conditioning. It costs water, but it holds production far better than air cooling in high ambient conditions. Total water use, including what freezes, is 12 gallons per 100 lbs at 90/70, and energy use is 4.76 kWh per 100 lbs.

CleanCycle12 Maintenance

The machine runs an automatic CleanCycle12 flush every twelve hours. Auger-style cubelet machines live and die by scale control, and an automatic twelve-hour cycle keeps the evaporator from building up between manual services.

Specifications

Model DCM-751BWH-OS
Ice type Cubelet (nugget style)
Ice production Up to 782 lbs. per 24 hours
Built-in storage Up to 70 lbs. (3.2 cu. ft.)
Condenser Water-cooled
Exterior dimensions 34-1/16" W x 28-1/2" D x 48-1/16" H
Shipping weight 345 lbs.
Electrical 115v / 60 / 1, 17.3 amps, 20A max fuse / HACR breaker
Refrigerant R-404A, 1 lb. 2.7 oz. (530 g)
Energy consumption 4.76 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications AHRI Standard 820, NSF, UL Safety Health Effects, Georgia Made

Warranty

Three years parts and labor on the entire machine (serial numbers VxxxxxJ and after). Five years parts on the compressor and air-cooled condenser coil.
