Product Description

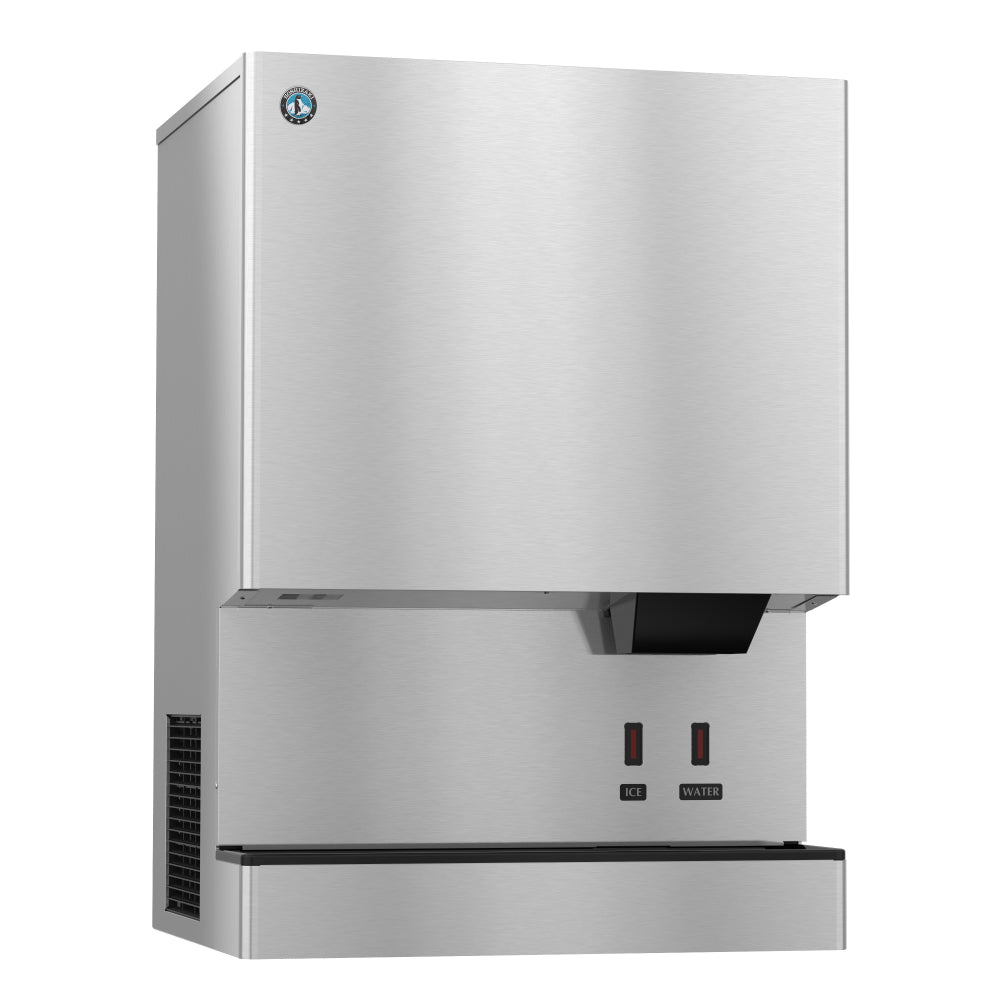

The Hoshizaki DCM-700BAK-OS is the hands-free Opti-Serve build of Hoshizaki's largest cubelet dispenser: 719 lb of ice a day, a 95 lb built-in bin, and sensor dispensing rather than a push button.

Touch-free at the busiest point

This is the configuration for the ice point that serves the most people in a building. Sensor dispensing removes the shared contact surface entirely, which is what infection-control reviews look for in hospital corridors, dialysis units and large serveries. The same sensor also means a user carrying a tray or pushing a cart can fill a cup without a free hand.

Production plus reserve

95 lb of stored ice absorbs a surge; 719 lb a day refills it fast enough that the surge does not have to be rationed. Smaller countertop models force a choice between the two — this one does not, which is why it ends up in the corridors and concourses that serve hundreds of people an hour.

Cubelet ice and self-cleaning

Cubelet is soft compressed flake ice in nugget form: chewable, void-free in a cup, and it takes on the flavour of the drink around it. The machine runs R290, a hydrocarbon refrigerant with very low global warming potential, on a 5.3 oz charge, drawing 11.2 amps and 4.87 kWh per 100 lb at 90/70. A self-cleaning cycle maintains the ice path between full services.

Specifications

Model DCM-700BAK-OS
Ice type Cubelet (small nugget)
Ice production 719 lb per 24 hours
Dispensing Hands-free sensor (Opti-Serve)
Condenser Air-cooled
Storage capacity 95 lb (3.2 cu ft)
Exterior dimensions 34-1/16" W x 28-1/2" D x 48-1/16" H
Electrical 115V/60/1, 11.2 amps, 20A max fuse/HACR breaker, NEMA 5-15 plug, 6 ft cord
Refrigerant R290, 5.3 oz
Energy consumption 4.87 kWh per 100 lb @ 90/70
Water consumption 12 gallons per 100 lb @ 90/70
Shipping weight 345 lb
Certifications AHRI Standard 820, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, plus five years parts on the compressor and air-cooled condenser coil.
