Product Description

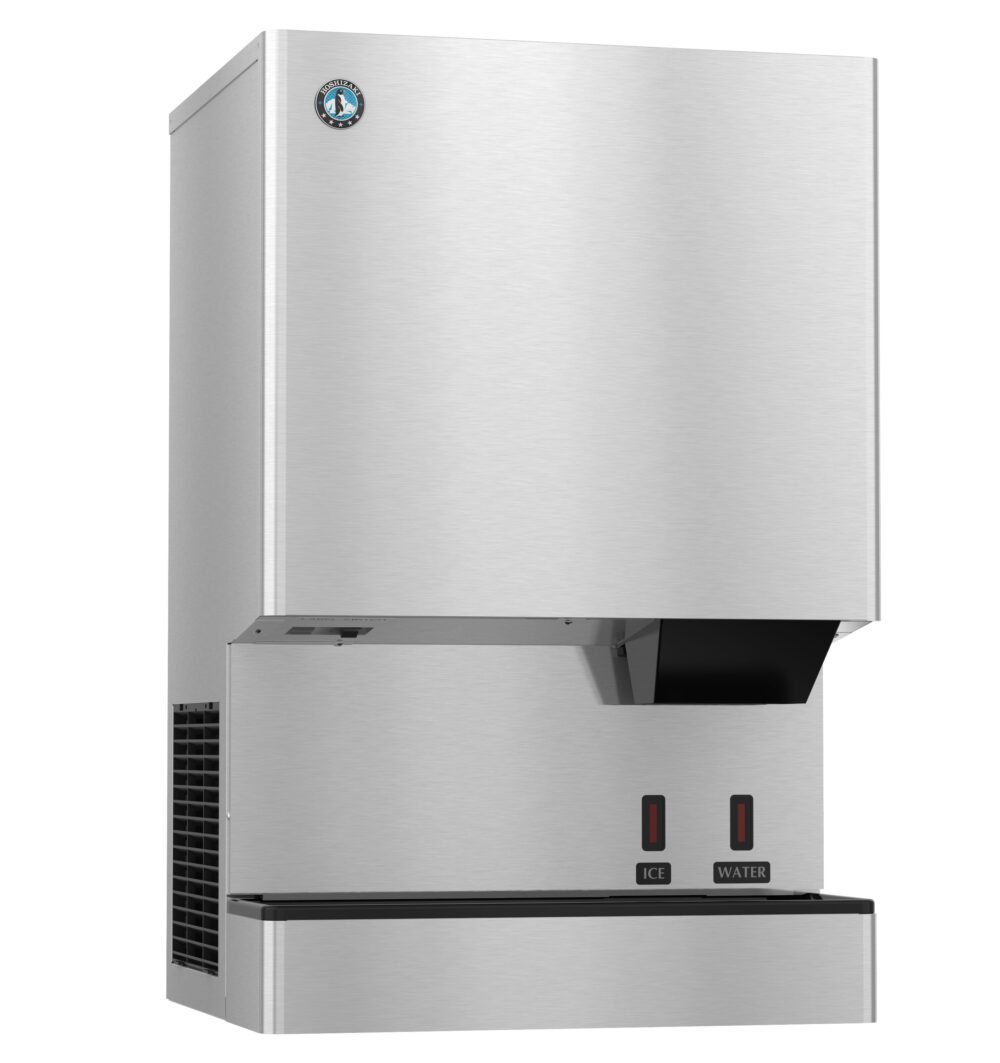

The Hoshizaki DCM-500BAK-OS is the hands-free Opti-Serve version of Hoshizaki's highest-output 26 inch countertop cubelet machine: 597 lb of ice a day, a 40 lb bin, and sensor dispensing instead of a push button.

Touch-free where the traffic is heaviest

Sensor dispensing matters most exactly where use is highest, because that is where a shared button gets touched most. This is the combination for a hospital cafeteria, a university dining hall or a stadium concourse: enough production to keep up with continuous use, and no contact surface between the user and their cup.

Cubelet ice

Cubelet is compressed flake ice in a soft mini nugget. It chews easily, fills a cup without air gaps so drinks need less liquid, and absorbs the flavour of the beverage around it. In patient care those properties are the reason it is specified; in quick service they are the reason customers come back for it.

R290 efficiency

Running R290, a hydrocarbon refrigerant with very low global warming potential, on a 4.7 oz charge, this machine draws 6.7 amps and 4.7 kWh per 100 lb at 90/70. The R-404A generation it replaces drew 12.9 amps. A self-cleaning cycle maintains the ice path between full services. Air-cooled and cord-connected on a NEMA 5-15 plug behind a 20A breaker.

Specifications

Model DCM-500BAK-OS
Ice type Cubelet (small nugget)
Ice production 597 lb per 24 hours
Dispensing Hands-free sensor (Opti-Serve)
Condenser Air-cooled
Storage capacity 40 lb (1.3 cu ft)
Exterior dimensions 26" W x 22-1/2" D x 40" H
Electrical 115V/60/1, 6.7 amps, 20A max fuse/HACR breaker, NEMA 5-15 plug
Refrigerant R290, 4.7 oz
Energy consumption 4.7 kWh per 100 lb @ 90/70
Water consumption 12 gallons per 100 lb @ 90/70
Shipping weight 255 lb
Certifications AHRI Standard 820, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, plus five years parts on the compressor and air-cooled condenser coil.
