Product Description

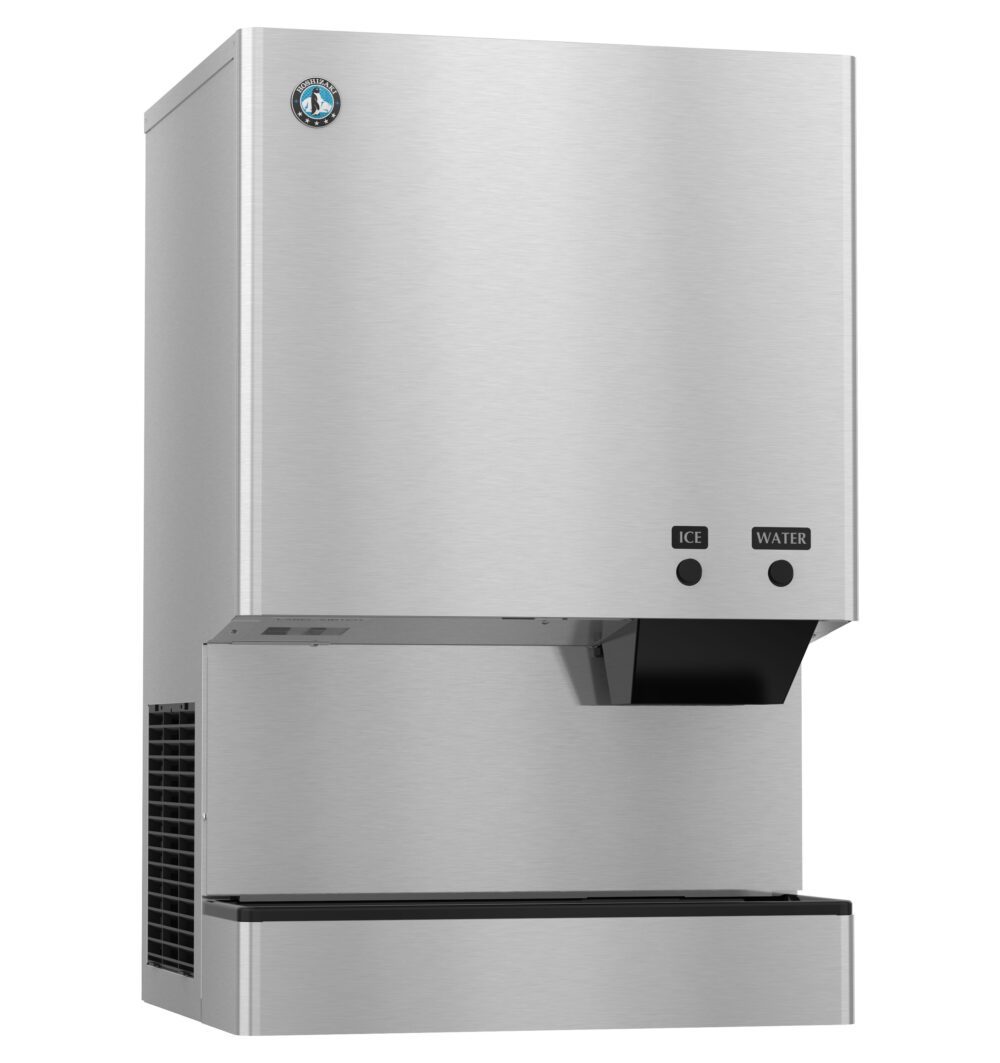

The Hoshizaki DCM-300BAK makes and dispenses 343 lb of cubelet ice a day into a 40 lb built-in bin, in a 26 inch wide countertop cabinet. The step up from the 16-5/8 inch DCM-271BAK is really about the bin: four times the reserve, for locations where demand arrives in waves rather than a steady trickle.

The 40 lb bin

A 10 lb bin works where users come one at a time. A 40 lb bin is what you need when a shift change, a class break or a lunch rush puts twenty people at the dispenser inside five minutes. The machine holds enough to absorb the surge and refills through the quiet stretch afterwards, instead of metering out ice as fast as it can freeze it.

Cubelet ice

Cubelet is compressed flake ice in a soft mini-nugget form. It chews rather than cracks, packs into a cup without air gaps so drinks fill with less liquid, and takes on the flavour of whatever it is sitting in. Healthcare, education and quick-service operators all specify it for those reasons.

R290 and self-cleaning

The machine runs R290, a low-GWP hydrocarbon refrigerant, on a 4.8 oz charge, drawing 7.6 amps and 6 kWh per 100 lb at 90/70. A self-cleaning cycle handles the ice path between full services. It is air-cooled and cord-connected on a NEMA 5-15 plug behind a 20A breaker.

Specifications

Model DCM-300BAK
Ice type Cubelet (mini nugget)
Ice production 343 lb per 24 hours
Condenser Air-cooled
Storage capacity 40 lb
Exterior dimensions 26" W x 22-1/2" D x 40" H
Electrical 115V/60/1, 7.6 amps, 20A max fuse/HACR breaker, NEMA 5-15 plug
Refrigerant R290, 4.8 oz
Energy consumption 6 kWh per 100 lb @ 90/70
Water consumption 12 gallons per 100 lb @ 90/70
Shipping weight 220 lb
Certifications AHRI Standard 820, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, plus five years parts on the compressor and air-cooled condenser coil.
