Product Description

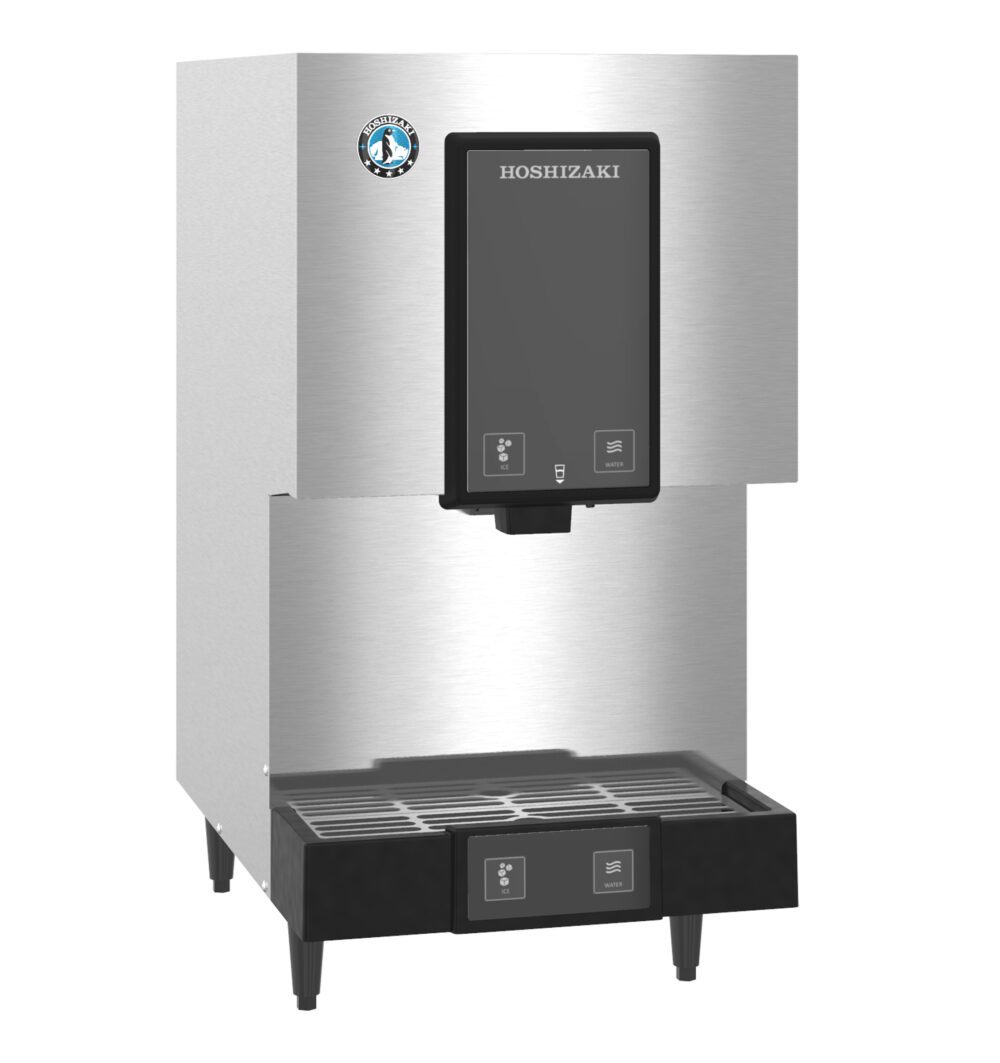

The Hoshizaki DCM-271BAK makes and dispenses its own cubelet ice: 286 lb a day from a countertop cabinet 16-5/8 inches wide, with push-button ice and water. It is a complete ice point in a footprint that fits a nurses' station, a cafeteria beverage rail or a hotel lobby without rebuilding the counter.

Cubelet ice

Cubelet is Hoshizaki's mini nugget: soft, chewable, and made of compressed ice flakes rather than a frozen block. It absorbs the flavour of whatever it is sitting in, packs into a cup without leaving voids, and is easy to chew, which is why healthcare and quick-service operators specify it and why customers ask for it by name. It is also gentle on blenders and displaces well in a cup, so a drink fills with less liquid.

Maker and dispenser in one

Because the machine makes and dispenses, there is no separate head above a bin and no scoop. The 10 lb storage bin is small on purpose: the machine keeps up with demand rather than banking a reserve, and the ice never sits long enough to fuse. That also means the ice stays enclosed from evaporator to cup, which is the hygiene case for a self-serve area.

R290 and self-cleaning

The BAK generation runs R290, a low-GWP hydrocarbon refrigerant, on a 5.3 oz charge, drawing 6.4 amps and 5.3 kWh per 100 lb at 90/70. A self-cleaning cycle handles routine sanitation of the ice path between full services. The dispensing area is ADA compliant and the unit is cord-connected on a NEMA 5-15 plug.

Specifications

Model DCM-271BAK
Ice type Cubelet (mini nugget)
Ice production 286 lb per 24 hours
Condenser Air-cooled
Storage capacity 10 lb (0.3 cu ft)
Exterior dimensions 16-5/8" W x 24-1/4" D x 31-3/4" H
Electrical 115V/60/1, 6.4 amps, 15A max fuse/HACR breaker, NEMA 5-15 plug
Refrigerant R290, 5.3 oz
Energy consumption 5.3 kWh per 100 lb @ 90/70
Water consumption 12 gallons per 100 lb @ 90/70
Shipping weight 154 lb
Certifications ADA Compliant, AHRI Standard 820, Natural Refrigerant, NSF, UL Safety Health Effects, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine, plus five years parts on the compressor and air-cooled condenser coil.
