Product Description

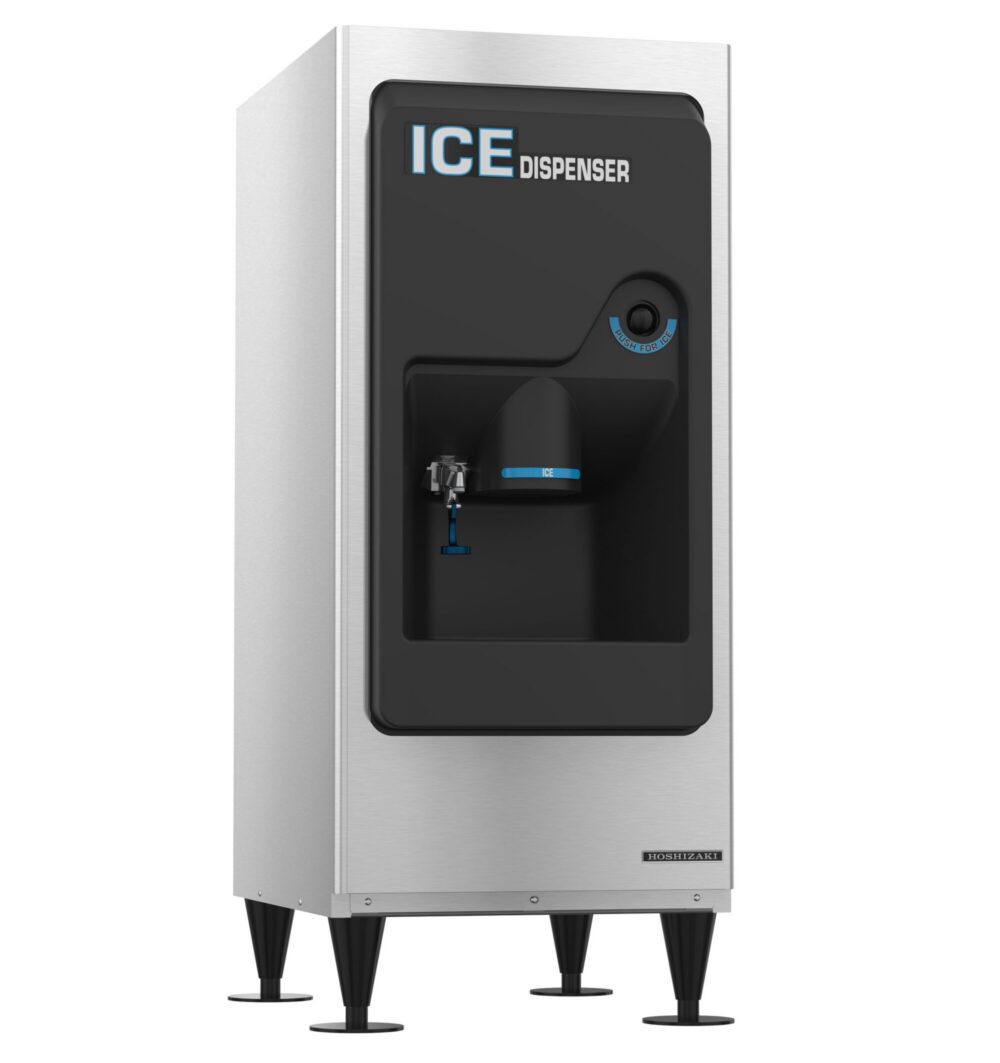

The Hoshizaki DBW-130H is the ice-and-water version of Hoshizaki's 22 inch hotel dispenser, holding 130 lb of ice and adding a water lever alongside the push-button ice dispense. It is sized for guest floor alcoves and delivers ice at up to 20 lb per minute.

Water as well as ice

Adding water to a guest floor dispenser changes what the alcove does. Guests filling a bottle or a glass no longer have to use the bathroom tap, and the hotel gets a visible amenity out of a machine it was installing anyway. The water lever is separate from the ice button, so neither operation blocks the other.

Enclosed ice

Ice is stored behind a sealed liner and delivered into the container rather than sitting open for guests to scoop. On a guest-accessible floor that is the whole point: one person reaching in with a room bucket cannot compromise the reservoir. The dispensing area is ADA compliant, which is generally a requirement on guest floors.

Installation

This is a dispenser and requires an ice machine mounted above it. It is hardwired rather than cord-connected, drawing 1.4 amps at 115V, so the location needs an electrical connection as well as water and drain.

Specifications

Model DBW-130H
Ice storage capacity 130 lb (3.7 cu ft)
Dispensing rate 20 lb per minute
Dispenses Ice (push button) and water (lever)
Exterior dimensions 22" W x 30" D x 53" H
Electrical 115V/60/1, 1.4 amps, hardwired (no cord or plug)
Shipping weight 195 lb
Certifications ADA Compliant, ETL Sanitation Listed, UL Safety, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine.
