Product Description

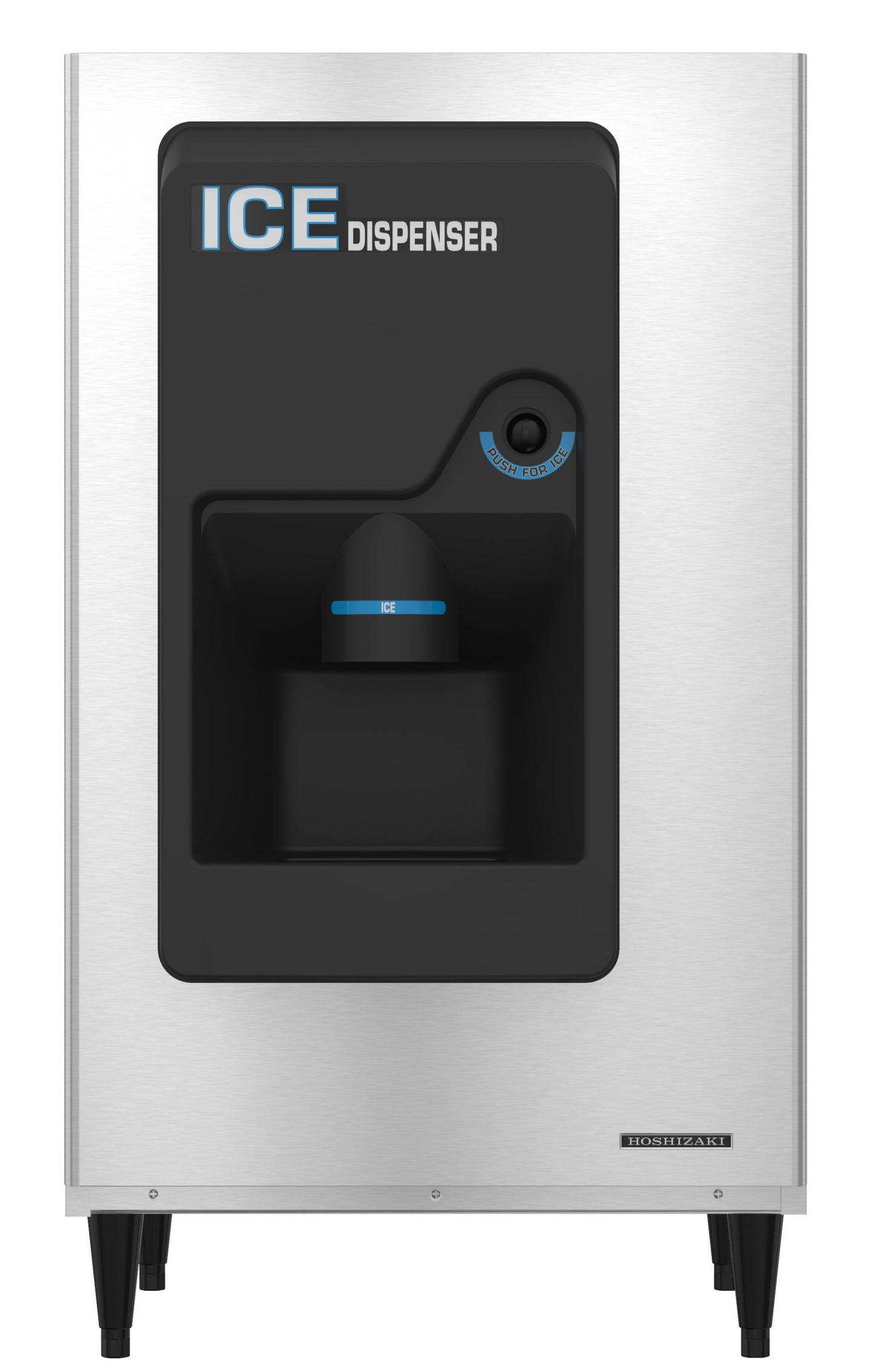

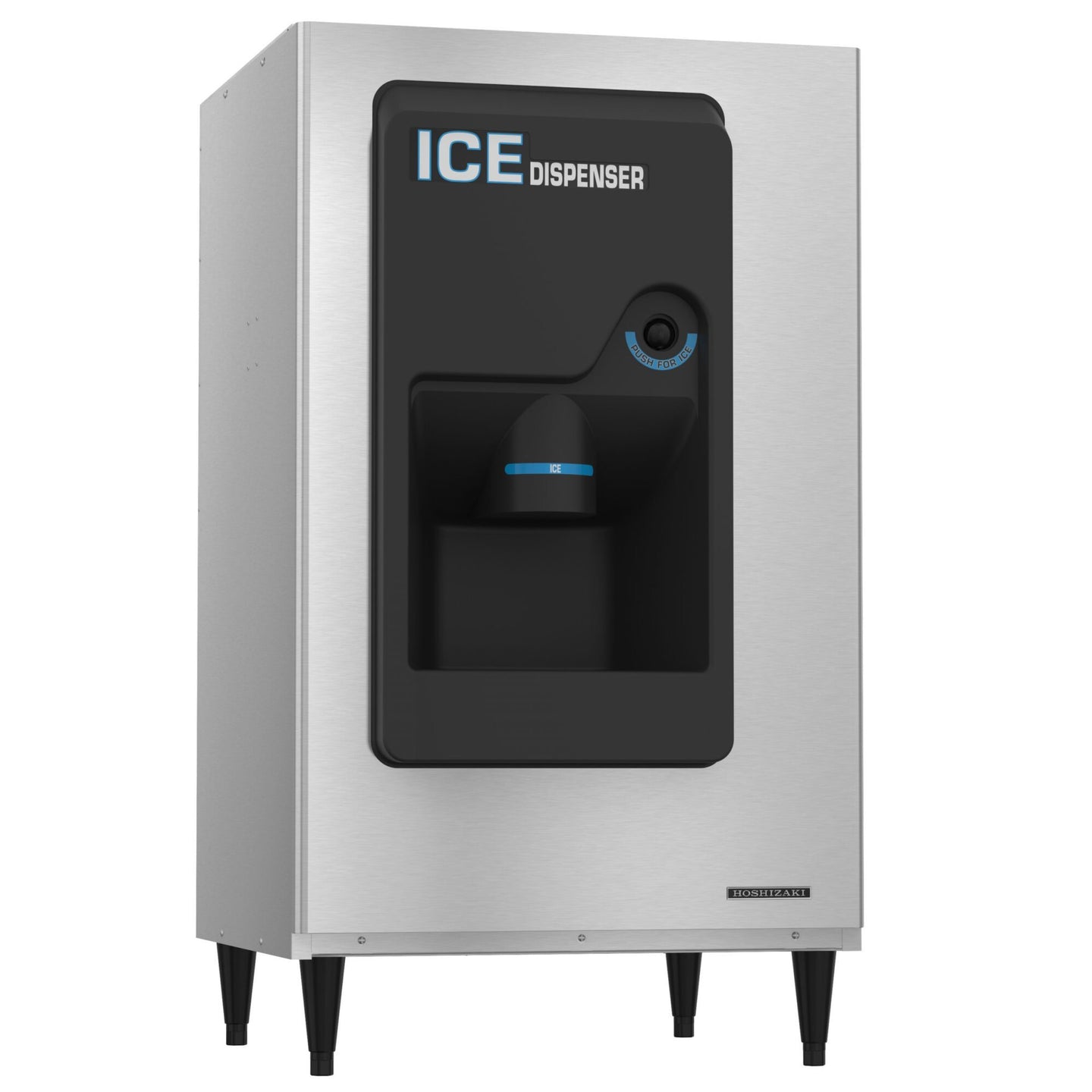

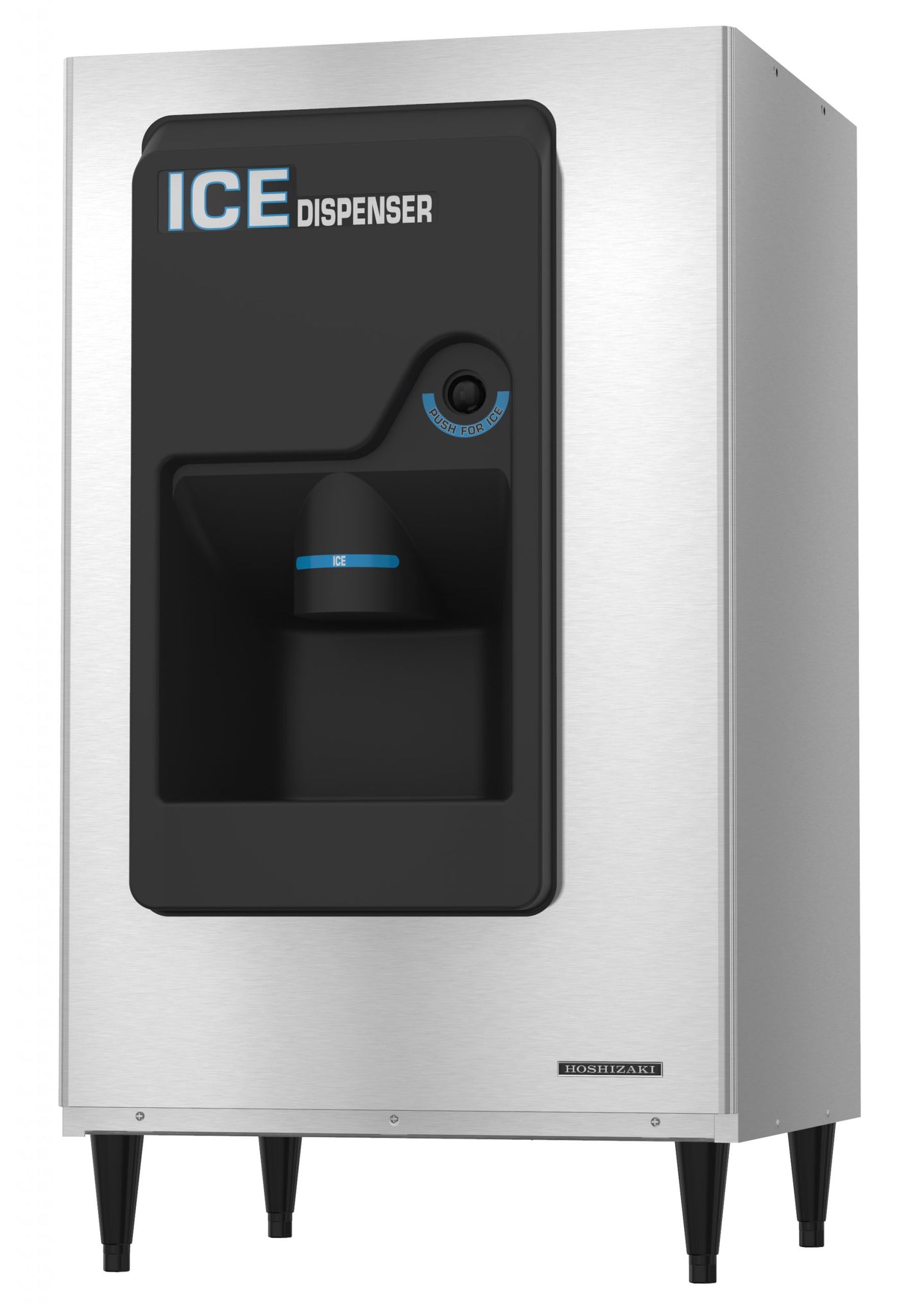

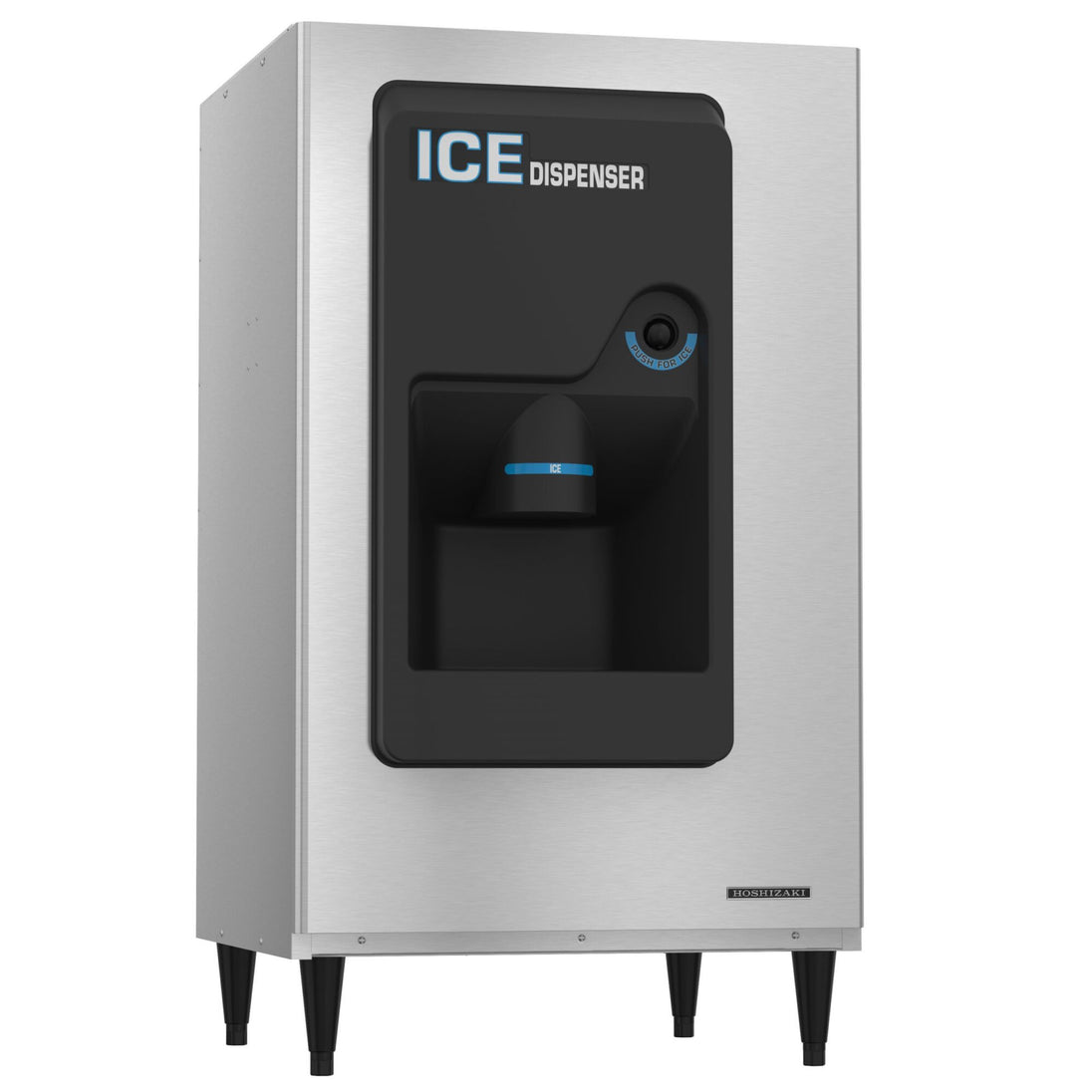

The Hoshizaki DB-200H is a 30 inch floor-standing ice dispenser holding 200 lb of ice, built for hotel guest floors, hospital wards and institutional corridors where the reserve has to survive a full evening of traffic without a staff refill.

Reserve over dispensing speed

Compared with the narrower DB-130H, this model trades dispensing rate for capacity: 13 lb per minute against 20, but 200 lb of storage against 130. That is the right trade on a busy floor. A large reservoir means the dispenser rides out the evening peak on stored ice while the machine above catches up, where a smaller bin would run dry and leave guests looking at an empty chute.

Enclosed ice and antimicrobial protection

Ice is stored behind a seamless bin liner with foamed-in-place polyurethane insulation, and the cabinet carries Hoshizaki's H-GUARD Plus antimicrobial protection. Because the ice never sits open to a guest corridor, one person's room bucket cannot contaminate the whole reservoir the way it can with an open bin. The dispensing area is ADA compliant.

Installation

This is a dispenser and needs an ice machine above it. It is hardwired rather than cord-connected, drawing 1.4 amps at 115V with a 60 W dispensing gear motor, and has a 3/4 inch FPT drain. Allow for an electrical connection at the location.

Specifications

Model DB-200H
Ice storage capacity 200 lb (5.72 cu ft)
Dispensing rate 13 lb per minute
Exterior dimensions 30" W x 30" D x 53" H
Electrical 115V/60/1, 1.4 amps, hardwired (no cord or plug)
Dispensing gear motor 60 W
Drain 3/4" FPT
Exterior Stainless steel
Shipping weight 220 lb
Certifications UL Listed, ETL Sanitation Listed, ADA Compliant, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine.
