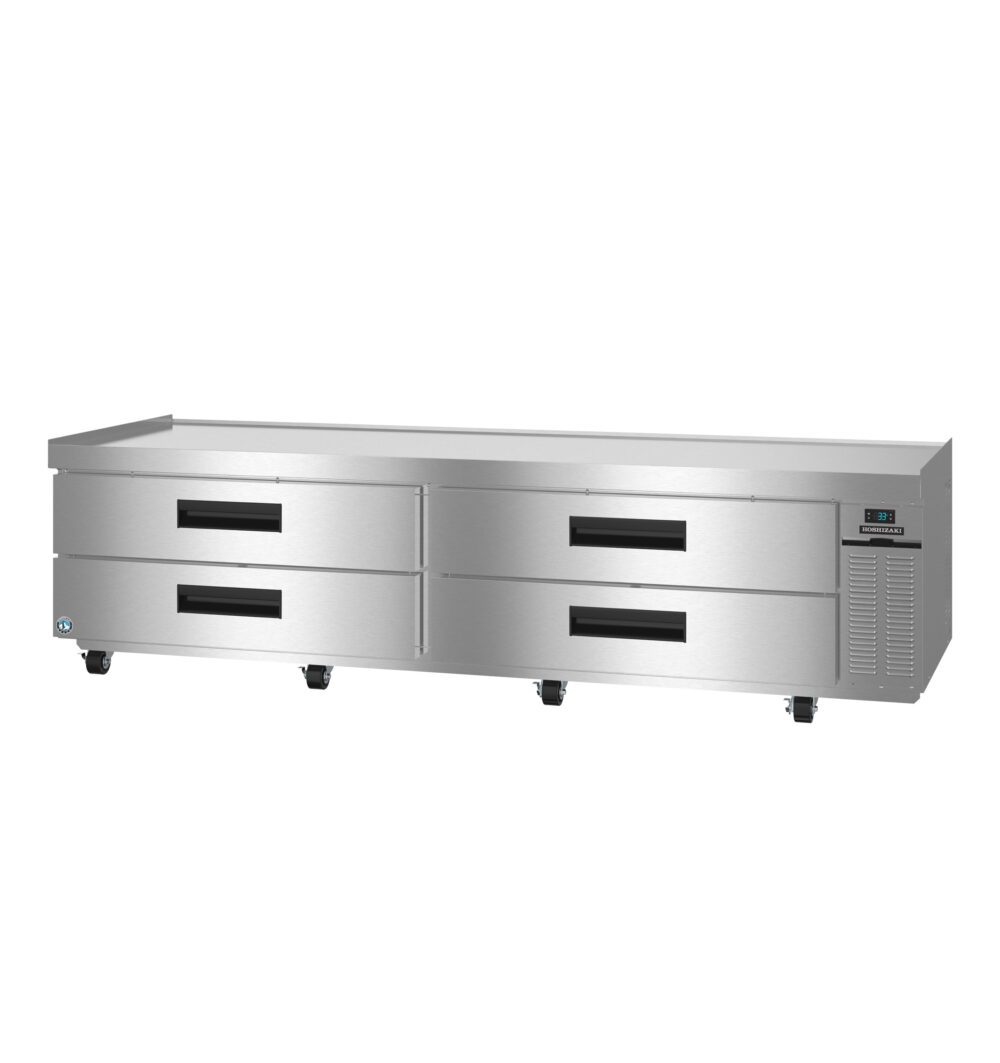

Hoshizaki CR98B Steelheart Series two section refrigerated chef base with four stainless drawers

Product Description

The Hoshizaki CR98B is a Steelheart Series two-section refrigerated chef base, 98 inches wide with four stainless steel drawers and 22.78 cubic feet of cold storage under an equipment-rated top. The condenser is mounted on the right.

Twelve Full-Size Pans Under One Cook Line

Every one of the four drawers takes three 12 by 20 by 6 inch pans, so the CR98B carries twelve full-size pans of working stock — uniformly, unlike the 85 inch model which splits three-and-two between its halves. For a station that runs the same product across its whole width, that even layout is the reason to step up to 98 inches rather than specify the CR85B.

Right-Side Condenser

The coil sits on the right. A chef base lives underneath live cooking equipment, so its condenser must draw ambient room air rather than recirculating its own discharge; the correct hand is whichever faces open floor rather than a wall or an adjacent appliance. The CR98B-L reverses it for lines where the right side is blocked.

ENERGY STAR Qualified on R290

At better than eight feet wide the CR98B still runs from one standard 115 volt circuit, drawing 3 amps through a NEMA 5-15 plug on a 10 foot cord behind a 15 amp maximum fuse or HACR breaker. It is ENERGY STAR qualified and charged with R290 natural refrigerant.

Specifications

Model CR98B
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (3) 12" x 20" x 6" deep per drawer
Condenser Right side
Storage Capacity 22.78 cu ft
Exterior Dimensions 98"W x 32-1/4"D x 26"H
Shipping Weight 639 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
