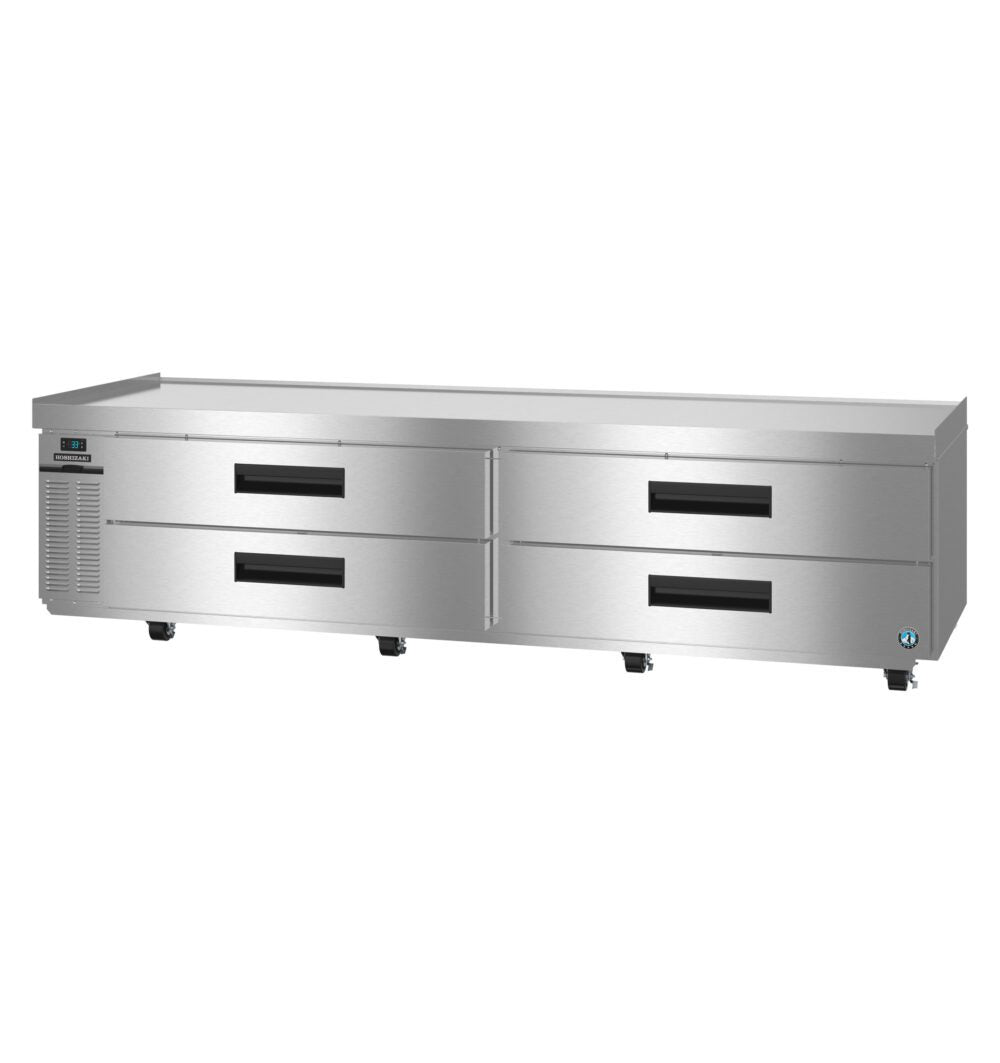

Hoshizaki CR98B-L Steelheart Series two section refrigerated chef base with four stainless drawers and left condenser

Product Description

The Hoshizaki CR98B-L is a Steelheart Series two-section refrigerated chef base, 98 inches wide with four stainless steel drawers and 22.78 cubic feet of cold storage under an equipment-rated top. The condenser is mounted on the left.

Left-Hand Condenser for Blocked Right-Side Runs

This is the mirrored build of the CR98B. A chef base works beneath live cooking equipment, so its coil has to pull ambient room air rather than recirculate its own discharge — the condenser side must face open floor, not a wall or a neighbouring appliance. At eight feet wide with a full equipment battery on top, getting that hand right at specification time is considerably cheaper than discovering it afterwards.

Twelve Full-Size Pans, Evenly Divided

All four drawers take three 12 by 20 by 6 inch pans each, giving twelve full-size pans of working stock with no imbalance between halves. That even layout distinguishes the 98 inch base from the 85 inch model, which splits three-and-two, and suits a line running the same product across its whole width.

ENERGY STAR Qualified on R290

The CR98B-L is ENERGY STAR qualified and charged with R290 natural refrigerant. It runs from a single standard 115 volt circuit, drawing 3 amps through a NEMA 5-15 plug on a 10 foot cord behind a 15 amp maximum fuse or HACR breaker.

Specifications

Model CR98B-L
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (3) 12" x 20" x 6" deep per drawer
Condenser Left side
Storage Capacity 22.78 cu ft
Exterior Dimensions 98"W x 32-1/4"D x 26"H
Shipping Weight 639 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
