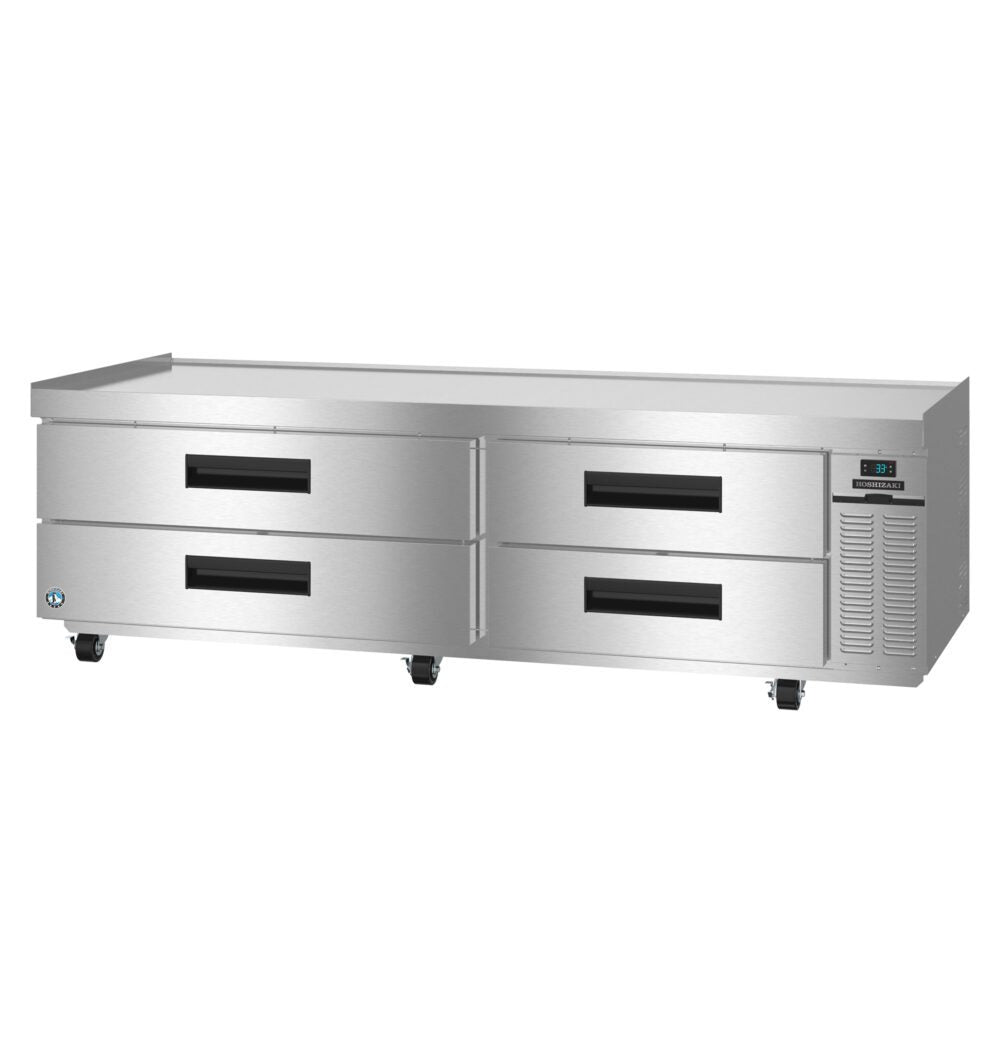

Hoshizaki CR85B Steelheart Series two section refrigerated chef base with four stainless drawers

Product Description

The Hoshizaki CR85B is a Steelheart Series two-section refrigerated chef base, 85 inches wide with four stainless steel drawers and 19.25 cubic feet of cold storage under an equipment-rated top. The condenser is mounted on the right.

Asymmetric Drawer Layout for Uneven Stations

The CR85B does not divide its pan capacity evenly. The left drawers each take three 12 by 20 by 6 inch pans while the right drawers take two, which suits a line where one half of the cook surface consumes noticeably more product than the other — a fryer bank beside a griddle, for instance. Specifying the base to the station rather than the other way round is the practical reason to choose 85 inches over two smaller units.

Right-Side Condenser

The coil sits on the right. A chef base spends its service life beneath live cooking equipment, so the condenser has to draw ambient room air rather than its own discharge; the correct hand is whichever faces open floor rather than a wall or an adjacent appliance. The CR85B-L is the mirrored build.

ENERGY STAR Qualified on R290

At seven feet wide the CR85B still runs on a single standard 115 volt circuit, drawing 3 amps through a NEMA 5-15 plug on a 10 foot cord behind a 15 amp maximum fuse or HACR breaker. It is ENERGY STAR qualified and charged with R290 natural refrigerant.

Specifications

Model CR85B
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (3) 12" x 20" x 6" deep per left drawer, (2) per right drawer
Condenser Right side
Storage Capacity 19.25 cu ft
Exterior Dimensions 85"W x 32-1/4"D x 26"H
Shipping Weight 567 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
