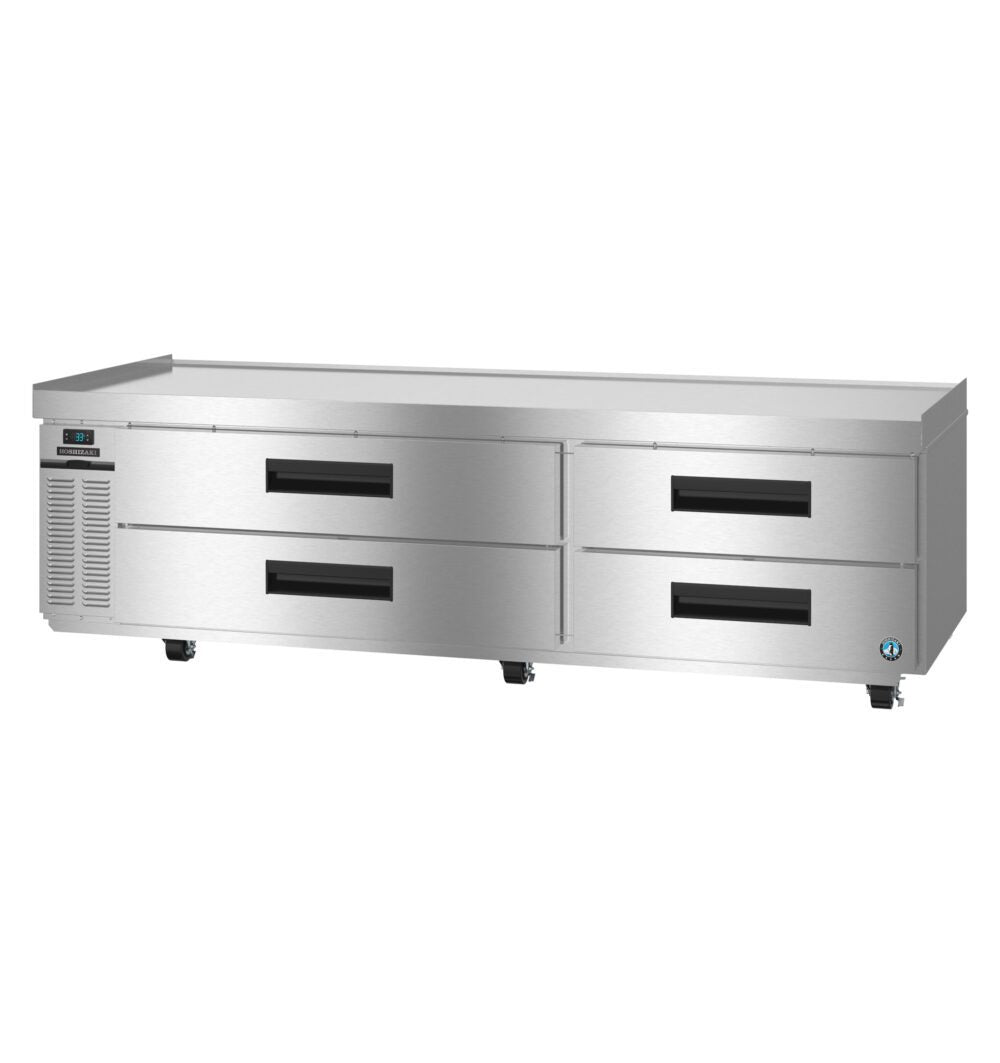

Hoshizaki CR85B-L Steelheart Series two section refrigerated chef base with four stainless drawers and left condenser

Product Description

The Hoshizaki CR85B-L is a Steelheart Series two-section refrigerated chef base, 85 inches wide with four stainless steel drawers and 19.25 cubic feet of cold storage under an equipment-rated top. The condenser is mounted on the left.

Left-Hand Condenser for Blocked Right-Side Runs

This is the mirrored build of the CR85B. Because a chef base works underneath live cooking equipment, its coil must pull ambient room air rather than recirculate its own discharge, so the condenser side needs to face open floor instead of a wall or a neighbouring appliance. On a unit this wide the placement is not a detail — seven feet of equipment above it makes correcting the hand after installation impractical.

Asymmetric Drawer Layout

Pan capacity is deliberately uneven: the left drawers each take three 12 by 20 by 6 inch pans, the right drawers two. That suits a line where one half of the cooking surface turns over more product than the other, and it is the main reason to specify a single 85 inch base rather than pairing two smaller units.

ENERGY STAR Qualified on R290

The CR85B-L is ENERGY STAR qualified and charged with R290 natural refrigerant. Despite its width it runs on one standard 115 volt circuit, drawing 3 amps through a NEMA 5-15 plug on a 10 foot cord behind a 15 amp maximum fuse or HACR breaker.

Specifications

Model CR85B-L
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (3) 12" x 20" x 6" deep per left drawer, (2) per right drawer
Condenser Left side
Storage Capacity 19.25 cu ft
Exterior Dimensions 85"W x 32-1/4"D x 26"H
Shipping Weight 567 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
