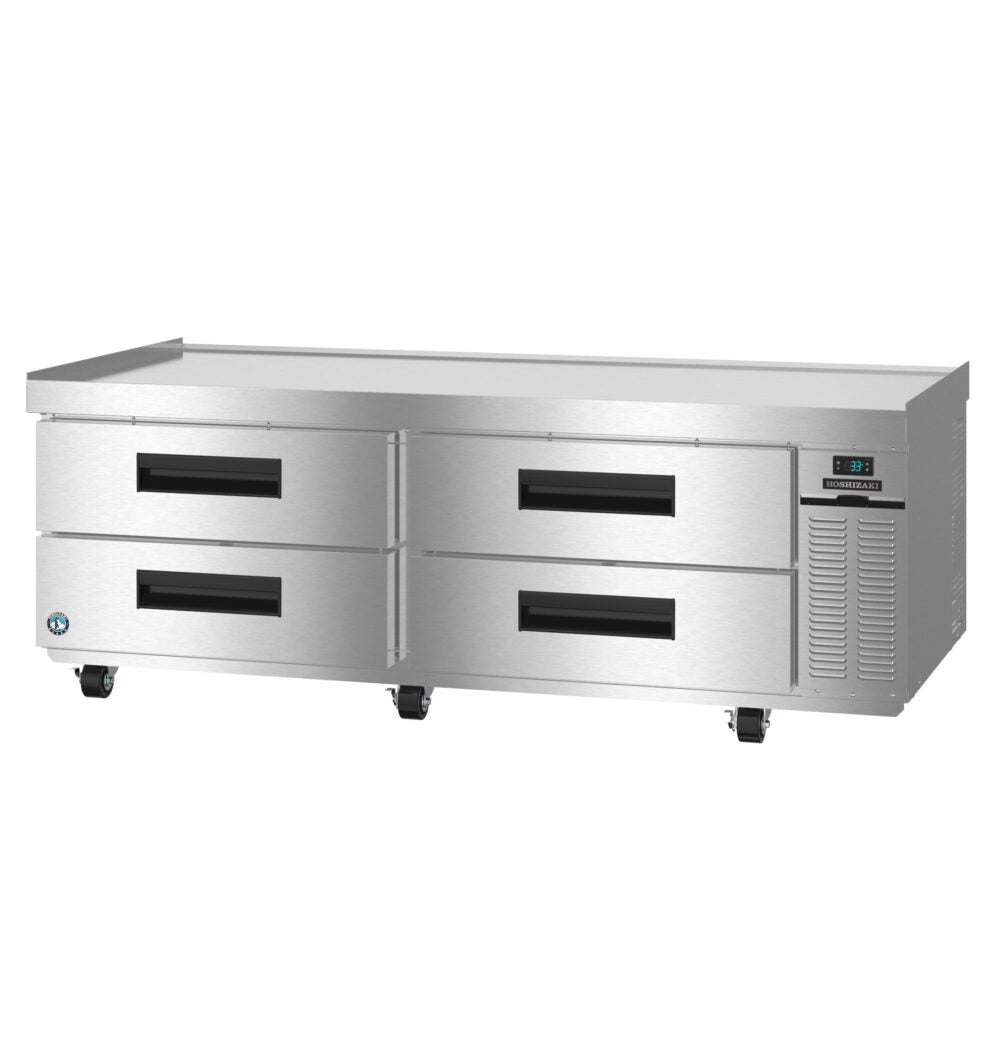

Hoshizaki CR72B Steelheart Series two section refrigerated chef base with four stainless drawers

Product Description

The Hoshizaki CR72B is a Steelheart Series two-section refrigerated chef base, 72-1/2 inches wide with four stainless steel drawers and 15.69 cubic feet of cold storage beneath an equipment-rated top. The condenser is mounted on the right.

Two Refrigerated Sections Under One Cooking Surface

Splitting 72 inches into two sections gives the CR72B four drawers instead of two, each holding a pair of 12 by 20 by 6 inch pans — eight full-size pans of working stock directly under the equipment that consumes it. Two sections also means the cold air is delivered where it is used rather than travelling the whole length of a single cavity, which matters on a base this wide.

Right-Side Condenser

The coil sits on the right. Because a chef base runs underneath live cooking equipment, the condenser has to draw ambient room air rather than its own discharge, so the correct hand is whichever one faces open floor instead of a wall or an adjacent appliance. The CR72B-L is the mirrored build for lines where the right side is blocked.

ENERGY STAR Qualified on R290

The CR72B is ENERGY STAR qualified and charged with R290 natural refrigerant. It draws 3 amps from a standard 115 volt circuit through a NEMA 5-15 plug on a 10 foot cord, behind a 15 amp maximum fuse or HACR breaker — the same electrical footprint as the much smaller single-section models.

Specifications

Model CR72B
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (2) 12" x 20" x 6" deep per drawer
Condenser Right side
Storage Capacity 15.69 cu ft
Exterior Dimensions 72-1/2"W x 32-1/4"D x 26"H
Shipping Weight 500 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
