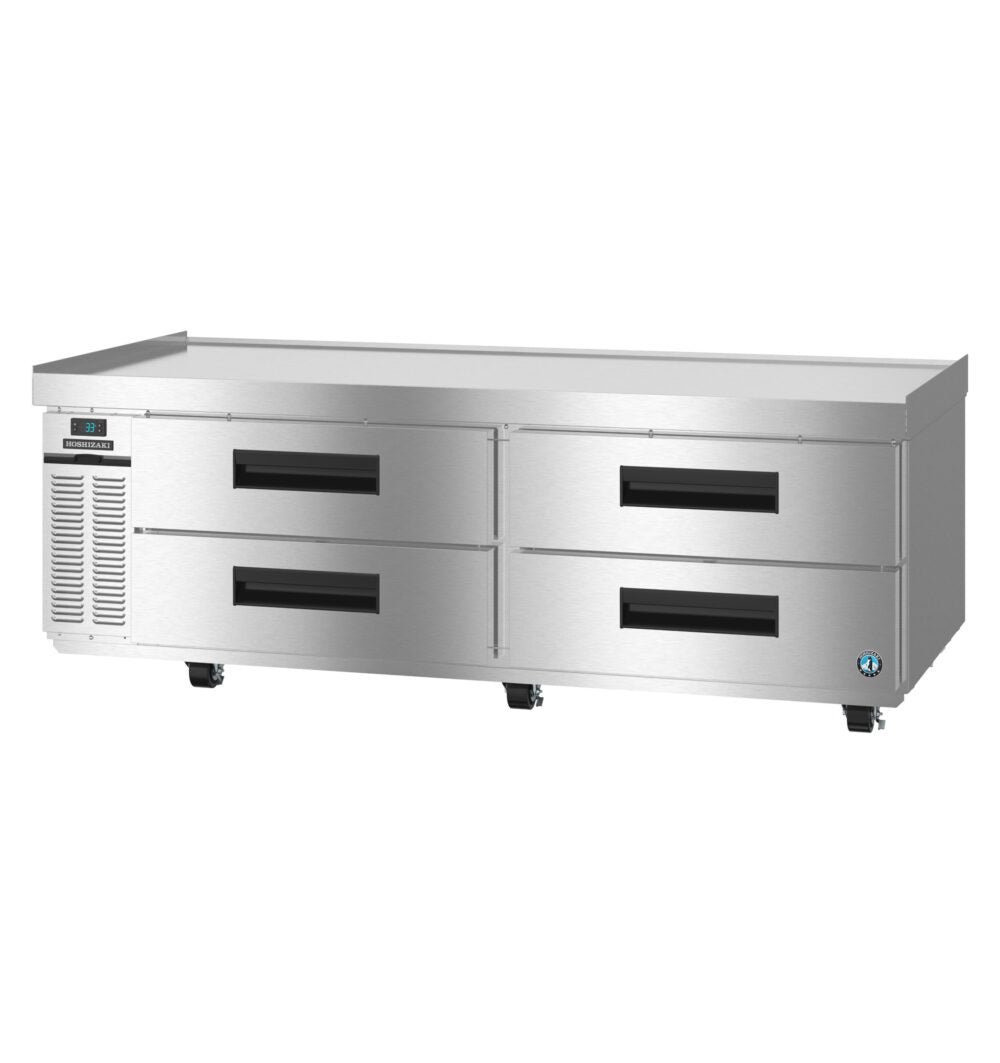

Hoshizaki CR72B-L Steelheart Series two section refrigerated chef base with four stainless drawers and left condenser

Product Description

The Hoshizaki CR72B-L is a Steelheart Series two-section refrigerated chef base, 72-1/2 inches wide with four stainless steel drawers and 15.69 cubic feet of cold storage beneath an equipment-rated top. The condenser is mounted on the left.

Left-Hand Condenser for Blocked Right-Side Runs

This is the mirrored build of the CR72B. A chef base sits under live cooking equipment, so its coil must pull ambient room air rather than recirculate its own discharge — the condenser side has to face open floor rather than a wall or a neighbouring appliance. Specifying the -L version keeps that airflow intact when the layout puts the obstruction on the right.

Four Drawers Across Two Sections

Two independently served sections give the CR72B-L four drawers rather than two, each taking a pair of 12 by 20 by 6 inch pans — eight full-size pans of working stock sitting directly beneath the equipment that draws on it. Two sections also put the cold air where it is used instead of moving it the full width of one long cavity.

ENERGY STAR Qualified on R290

The CR72B-L is ENERGY STAR qualified and charged with R290 natural refrigerant. It draws 3 amps from a standard 115 volt circuit through a NEMA 5-15 plug on a 10 foot cord, behind a 15 amp maximum fuse or HACR breaker.

Specifications

Model CR72B-L
Series Steelheart
Type Refrigerated chef base prep table
Sections Two
Drawers 4 stainless steel
Pan Capacity (2) 12" x 20" x 6" deep per drawer
Condenser Left side
Storage Capacity 15.69 cu ft
Exterior Dimensions 72-1/2"W x 32-1/4"D x 26"H
Shipping Weight 500 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Plug NEMA 5-15P
Power Cord 10 ft
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
