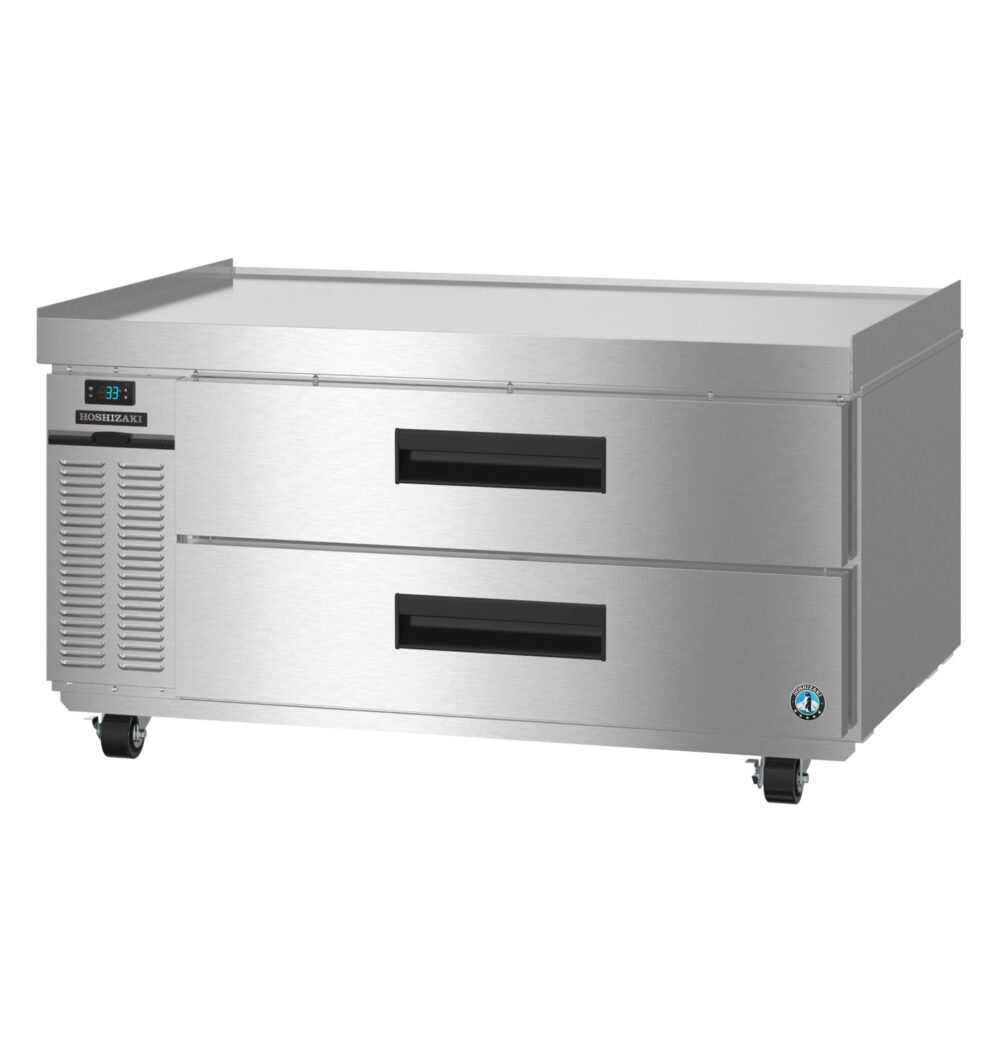

Hoshizaki CR49B-L Steelheart Series refrigerated chef base with two stainless drawers and left condenser

Product Description

The Hoshizaki CR49B-L is the left-condenser build of the Steelheart Series 49 inch refrigerated chef base, with two stainless steel drawers and 9.74 cubic feet of cold storage under an equipment-rated top.

Left-Hand Coil Placement

Mechanically this is the CR49B with the condenser moved to the left. The choice is an installation decision rather than a performance one: the coil needs to face open floor. A base butted against a wall or neighbouring equipment on its condenser side will draw in its own hot discharge and lose the temperature margin it needs while sitting under live cooking equipment.

Refrigerated Drawers Under the Cooking Top

Two stainless drawers hold product directly beneath the appliance that consumes it, replacing the trip to a reach-in with a waist-height pull. At 49 inches the top carries a two-appliance station on one uninterrupted surface.

ENERGY STAR Qualified at 1.07 kWh per Day

The unit is ENERGY STAR qualified with published consumption of 1.07 kWh per day, charged with R290 natural refrigerant, and draws 3 amps on a 115-volt circuit through a NEMA 5-15 connector and 10-foot cord.

Specifications

Model CR49B-L
Series Steelheart
Type Single-section refrigerated chef base prep table
Drawers 2 stainless steel
Condenser Left side
Storage Capacity 9.74 cu ft
Exterior Dimensions 49"W x 32-1/4"D x 26"H
Shipping Weight 339 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 3 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Energy Consumption 1.07 kWh/day
Refrigerant R290
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
