Product Description

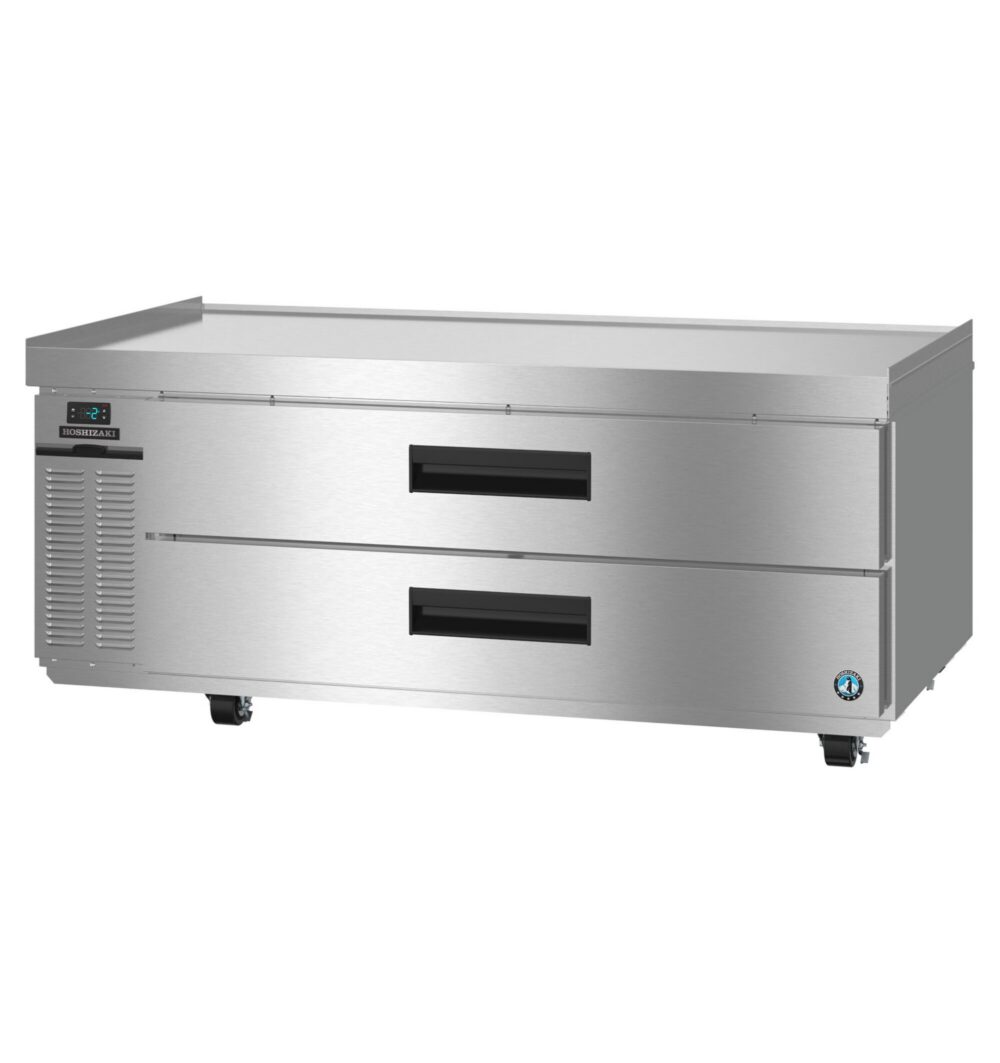

The Hoshizaki CF60B-L is the left-condenser build of the 60-inch Steelheart® Series chef base freezer. It carries 12.82 cubic feet of frozen storage across two stainless steel drawers, under a top rated to support the griddles, charbroilers and fryers that sit on it.

Left Condenser, Same Cabinet

Mechanically the CF60B-L matches the standard CF60B; the difference is that the condenser and its service access move to the left side. On a cookline where the right side is boxed in by a wall or an adjacent unit, the -L is the only version that will breathe properly. Specifying condenser side up front is cheaper than discovering the problem on installation day.

Frozen Storage Where the Cooking Happens

Sixty inches of width yields 12.82 cubic feet, and each drawer accepts three 12" x 20" x 6" deep pans or three 1/6 size pans at 6" deep. Because the cabinet is only 26 inches tall, it functions as the equipment stand and the freezer at once, which is the whole point of a chef base: fewer steps per cover during service.

R290 and ENERGY STAR

A 2.4 oz charge of R290 natural refrigerant does the cooling. Hydrocarbon refrigerants sit outside the HFC phase-down and carry negligible global warming potential, so the platform is not on a regulatory clock. The unit is ENERGY STAR® qualified at 5.5 kWh per day.

Specifications

Model CF60B-L
Type Single section chef base prep table freezer, left condenser
Storage capacity 12.82 cu ft
Exterior dimensions 60" W x 32.25" D x 26" H
Shipping weight 392 lbs
Electrical 115V / 60 Hz / 1 phase, 4 amps
Plug NEMA 5-15P
Max fuse / HACR breaker 15A
Refrigerant R290, 2.4 oz charge
Energy consumption 5.5 kWh/day
Certifications ENERGY STAR® qualified, ETL Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the CF60B-L with 7 years parts, 7 years labor and 7 years on the compressor.
