Product Description

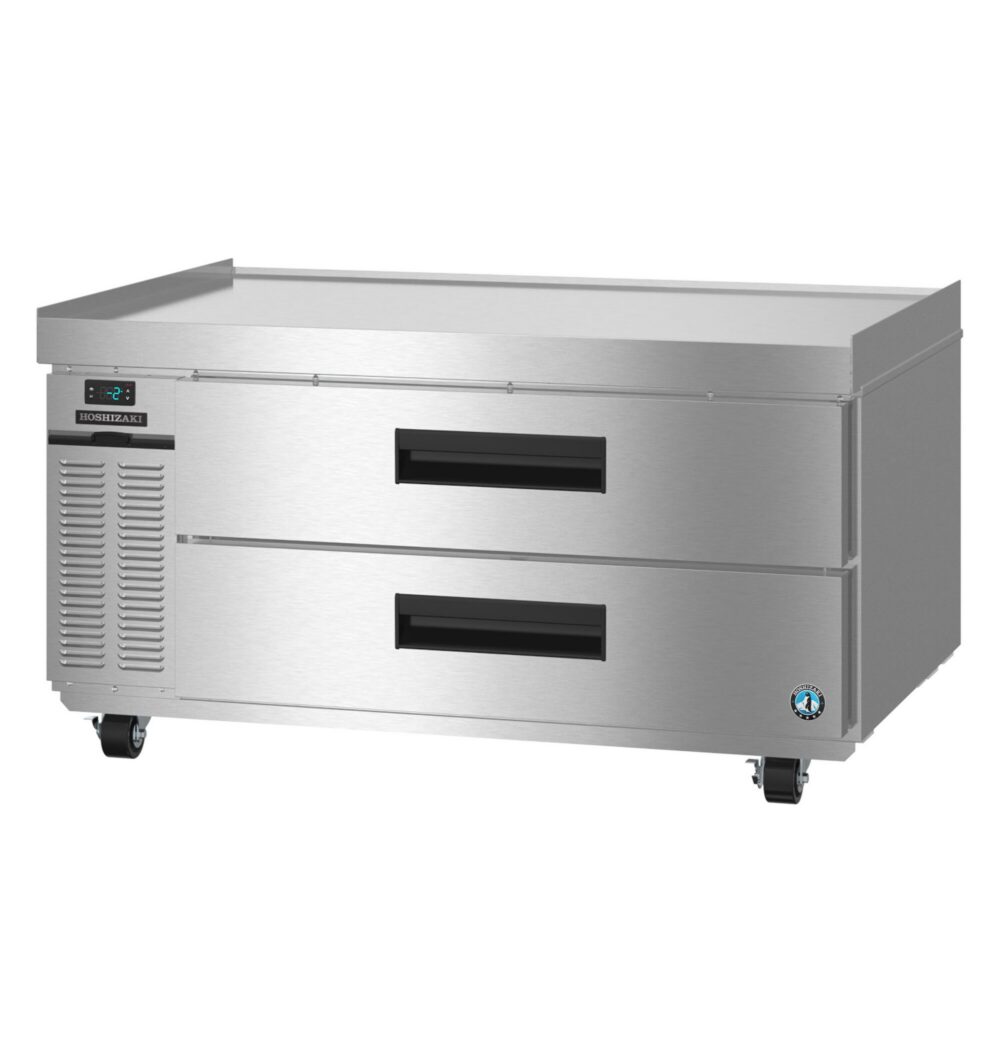

The Hoshizaki CF49B-L is the left-condenser version of the 49-inch Steelheart® Series chef base freezer. It provides 9.74 cubic feet of frozen storage in two stainless steel drawers beneath a work-rated top designed to carry countertop cooking equipment, all in a cabinet only 26 inches tall.

Why the Condenser Side Matters

The CF49B-L is mechanically identical to the CF49B except that its condenser sits on the left. On a fixed cookline that single detail decides whether the unit can be installed at all: the condenser side is the side that needs unobstructed airflow and service access. Specifying the -L lets a kitchen butt the cabinet against a wall or adjacent equipment on the right without choking the refrigeration system.

A Freezer That Doubles as Equipment Support

The reinforced stainless top is rated to take the weight and radiant heat of a griddle, charbroiler or fryer battery, so frozen product lives directly under the cooking surface instead of across the kitchen. Each drawer takes two 12" x 20" x 6" deep pans or three 1/6 size pans at 6" deep, keeping portioned product inside the cook's reach through a rush.

R290 Refrigeration and ENERGY STAR Rating

A 2.4 oz charge of R290 hydrocarbon refrigerant handles cooling. R290 is a natural refrigerant with very low global warming potential, which keeps the unit clear of the regulatory phase-down affecting synthetic blends. The CF49B-L is ENERGY STAR® qualified at 4.11 kWh per day.

Specifications

Model CF49B-L
Type Single section chef base prep table freezer, left condenser
Storage capacity 9.74 cu ft
Drawer capacity (2) 12" x 20" x 6" deep pans or (3) 1/6 size pans 6" deep
Exterior dimensions 49" W x 32.25" D x 26" H
Shipping weight 339 lbs
Electrical 115V / 60 Hz / 1 phase, 4 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290, 2.4 oz charge
Energy consumption 4.11 kWh/day
Certifications ENERGY STAR® qualified, ETL Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the CF49B-L with 7 years parts, 7 years labor and 7 years on the compressor.
