Product Description

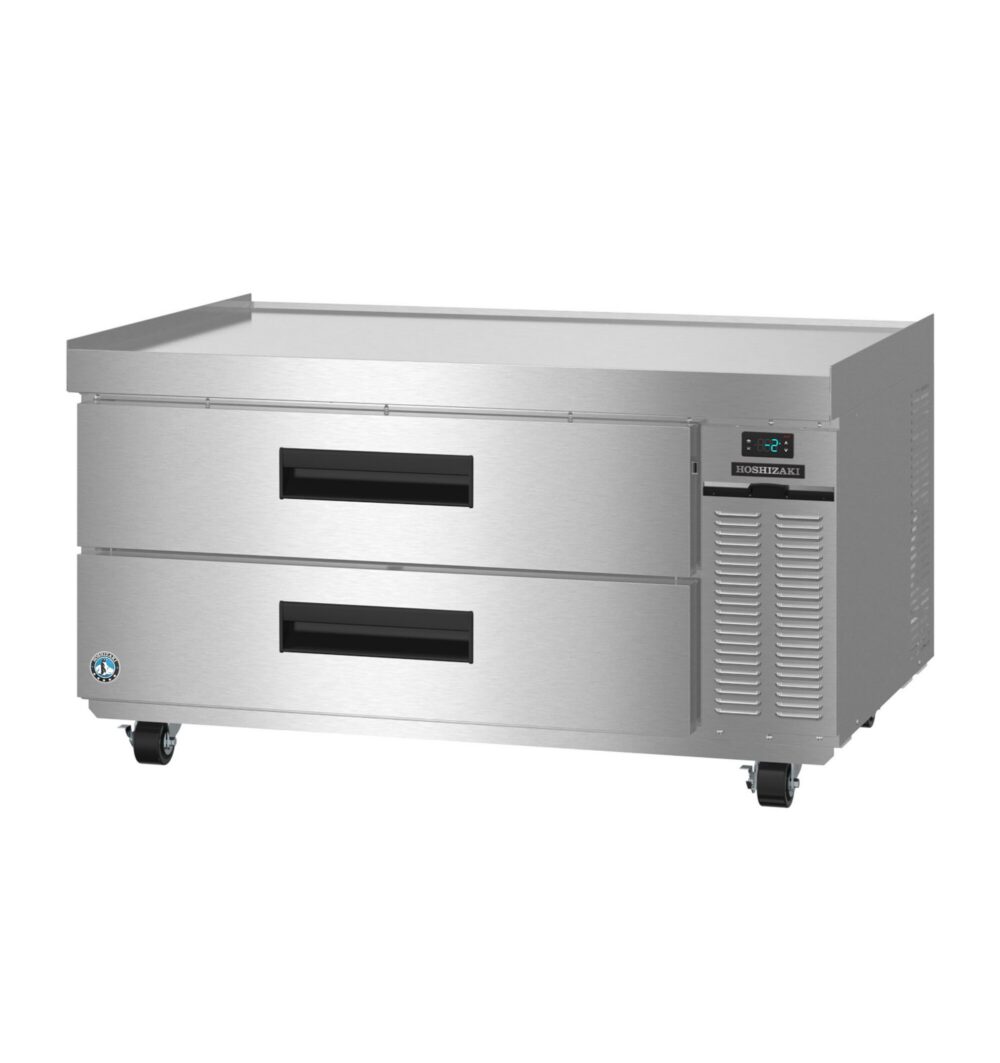

The Hoshizaki CF49B is a 49-inch chef base freezer from the Steelheart® Series, engineered to sit directly beneath a charbroiler, griddle or fryer while holding frozen product in two stainless steel drawers below. It packs 9.74 cubic feet of frozen storage into a 26-inch-tall footprint, turning otherwise dead space under the cookline into usable inventory.

Built to Carry Cooking Equipment

A chef base is only as good as the top it presents. The CF49B uses a reinforced stainless steel deck sized to take the weight and heat of countertop cooking equipment, so the freezer becomes structural rather than something to work around. Each drawer holds two 12" x 20" x 6" deep pans, or three 1/6 size pans at 6" deep, which keeps portioned proteins within arm's reach of the person working the line.

Right-Side Condenser for Placement Flexibility

The CF49B places its condenser on the right. That matters when the unit is dropped into a fixed cookline run, because it determines which side needs breathing room and service clearance. Hoshizaki builds the same cabinet with a left-side condenser as the CF49B-L, so a kitchen can specify airflow direction to suit the wall, not the other way around.

Natural Refrigerant, ENERGY STAR Qualified

Refrigeration is handled by R290 hydrocarbon with a 2.4 oz charge — a natural refrigerant with negligible global warming potential and no phase-down exposure under refrigerant regulation. The unit is ENERGY STAR® qualified and draws 4.11 kWh per day, which is a meaningful figure for a cabinet that runs continuously under a hot line.

Specifications

Model CF49B
Type Single section chef base prep table freezer, right condenser
Storage capacity 9.74 cu ft
Drawer capacity (2) 12" x 20" x 6" deep pans or (3) 1/6 size pans 6" deep
Exterior dimensions 49" W x 32.25" D x 26" H
Shipping weight 339 lbs
Electrical 115V / 60 Hz / 1 phase, 4 amps
Plug NEMA 5-15P, 10 ft cord
Max fuse / HACR breaker 15A
Refrigerant R290, 2.4 oz charge
Energy consumption 4.11 kWh/day
Certifications ENERGY STAR® qualified, ETL Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the CF49B with 7 years parts, 7 years labor and 7 years on the compressor.
