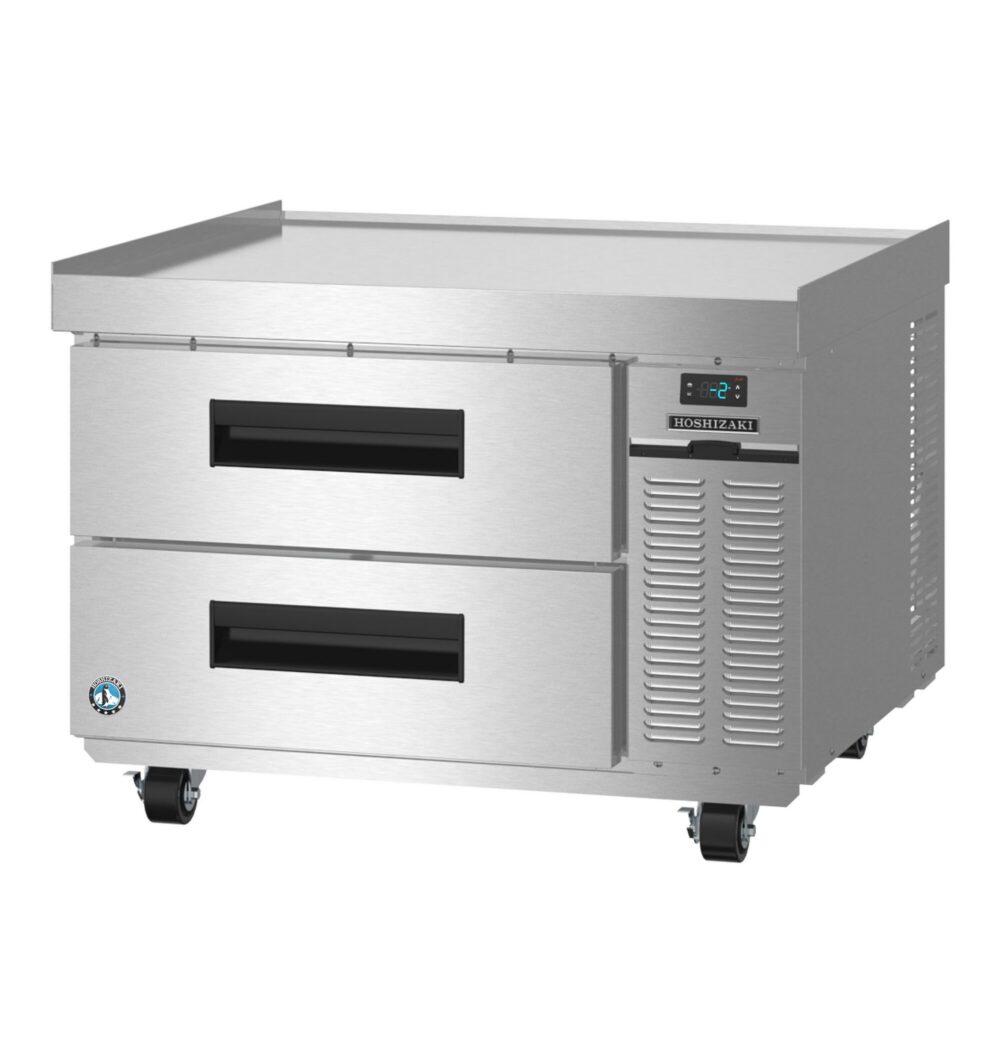

Hoshizaki CF36B 36 inch stainless steel chef base freezer with right side condenser

Product Description

The Hoshizaki CF36B is a stainless steel chef base freezer — a low-profile, 26-inch-high frozen cabinet built to carry cooking equipment on its top while holding 6.3 cubic feet of product frozen underneath. The condenser sits on the right side of this model, which is what determines where it can go in a line.

What a Chef Base Does

A chef base is not an undercounter freezer with a strong lid. It is engineered so that a charbroiler, griddle or range sits directly on top and runs, while the cabinet below holds frozen product without the equipment heat working its way in. That puts frozen product directly under the cook rather than several steps away at a reach-in, which is the whole point on a tight line. Hoshizaki specifies this model for that duty, with a top rated to support cooking equipment.

Right or Left Condenser

The CF36B places its condenser on the right side. The CF36B-L is the identical cabinet with the condenser on the left. This is not a cosmetic choice — the condenser needs to breathe, so which side it sits on decides whether the unit can be placed against a wall, at the end of a run, or beside another appliance. Settle the handedness against the actual floor plan before ordering, because it cannot be changed in the field.

Efficiency and Refrigerant

The CF36B is ENERGY STAR® qualified and listed at 3.37 kWh per day, drawing 4 amps from a standard 115V circuit with a NEMA 5-15P plug. Cooling is by R290 natural hydrocarbon refrigerant with a charge of just 2.4 ounces — very low global warming potential and clear of HFC phase-down schedules.

Specifications

Model CF36B
Configuration One section chef base freezer, right side condenser
Capacity 6.3 cu ft
Exterior Dimensions 36.5" W x 32.25" D x 26" H
Shipping Weight 294 lbs
Electrical 115V / 60 Hz / 1 phase
Amperage 4 amps, 15 A max fuse / HACR breaker
Plug NEMA 5-15P, 10 ft cord
Energy Consumption 3.37 kWh/day
Refrigerant R290, 2.4 oz
Certifications ENERGY STAR® Qualified, ETL Listed (US & C), ETL Sanitation Listed, Georgia Made Certified, Natural Refrigerant

Warranty

Hoshizaki covers the CF36B under its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
