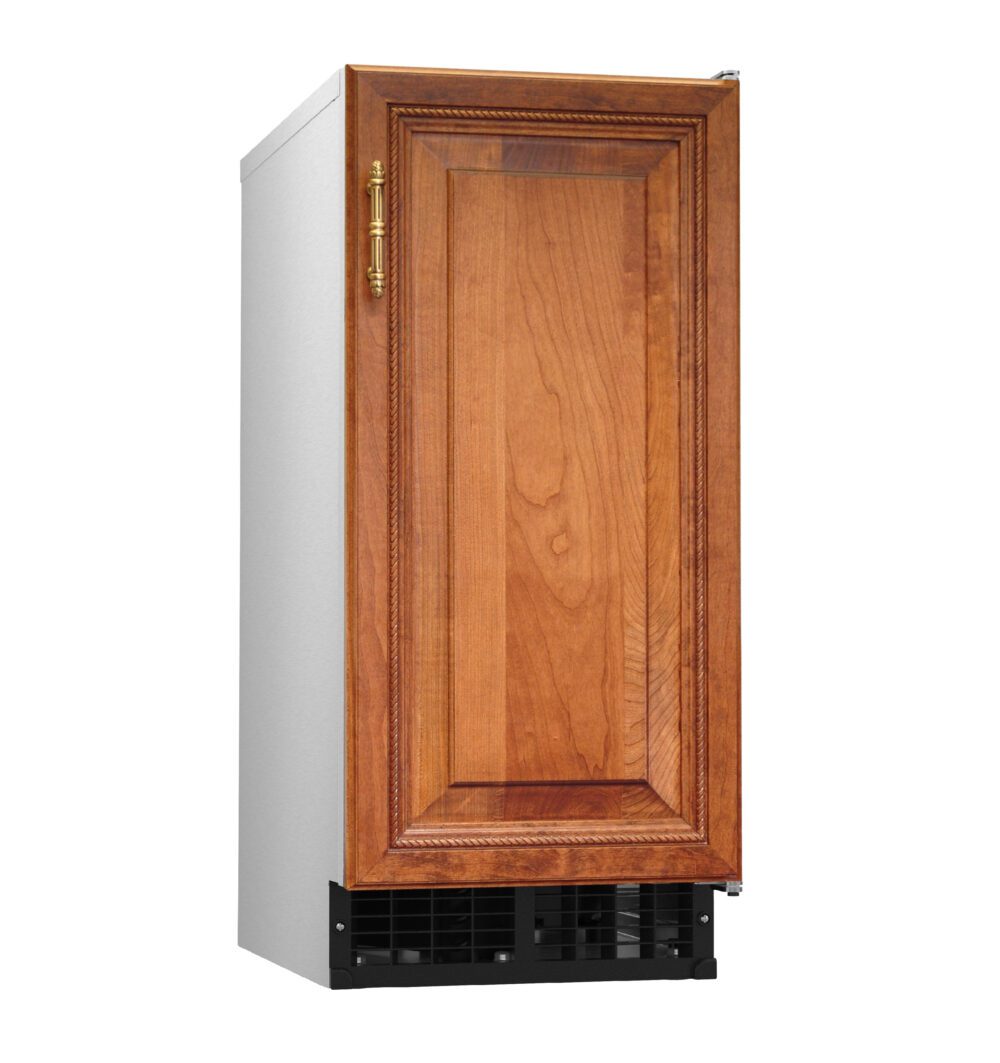

Hoshizaki C-80BAK-DS undercounter cabinet-ready cubelet ice machine, right side view

Product Description

The C-80BAK-DS is a compact undercounter cubelet ice machine built to disappear into custom millwork. Under 34 inches tall and just under 15 inches wide, it makes 92 lbs of soft chewable cubelet ice a day with 27 lbs of built-in storage, which covers a service bar, a nurse station or a hotel pantry without a separate bin.

Cubelet Ice in a Cabinet-Ready Body

Cubelet is the ice people chew. It cools fast because of the surface area, displaces well in a cup, and is the standard choice in healthcare and in beverage programs built around frozen and blended drinks. The DS designation is the cabinet-ready build: the machine is designed to be enclosed in custom cabinetry, so it can be specified into a millwork run rather than sitting as a visible appliance.

Natural Refrigerant and Outdoor Rating

The unit runs R290, a natural hydrocarbon refrigerant with a very low global warming potential, and carries a 1.9 oz charge. It is UL approved for outdoor use, which is unusual at this size and opens up patio bars and poolside service where most undercounter ice machines are not rated to sit.

Power and Consumption

Standard 115v on a NEMA 5-15 plug and a 6 ft cord, drawing 2.8 amps, so it goes on an ordinary circuit. Energy use is 8.5 kWh per 100 lbs and water use 12 gallons per 100 lbs at 90/70 conditions, and the machine is ENERGY STAR qualified.

Specifications

Model C-80BAK-DS
Ice type Cubelet (nugget style)
Ice production 92 lbs. per 24 hours
Built-in storage 27 lbs.
Condenser Air-cooled
Exterior dimensions 14.875" W x 22.625" D x 33.5" H
Shipping weight 134 lbs.
Electrical 115v / 60 / 1, 2.8A, 15A max fuse
Cord and plug 6 ft. cord, NEMA 5-15
Refrigerant R290, 1.9 oz. (53.86 g)
Energy consumption 8.5 kWh per 100 lbs. at 90/70
Water consumption 12 gal. potable water per 100 lbs. at 90/70
Certifications ENERGY STAR, NSF, UL (approved for outdoor use), Natural Refrigerant, Georgia Made

Warranty

Two years parts and labor on the entire machine. One year on the optional drain pump.
