Product Description

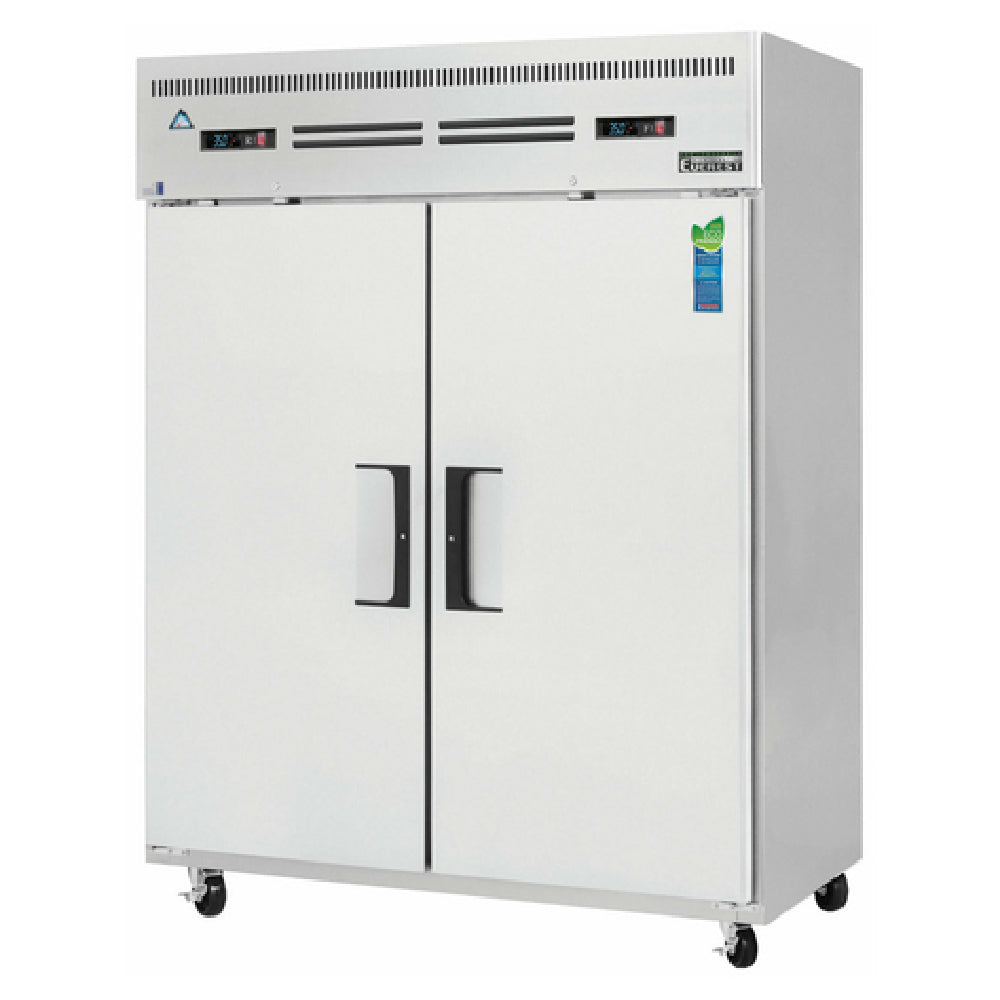

The Everest ESWRF2 is a wide-body dual-temperature reach-in holding 26 cubic feet of refrigeration and 26 cubic feet of freezer — 52 cubic feet in total — in a cabinet 59 inches across. It offers the largest even split in Everest's top-mount dual-temp range, giving each temperature zone more room than a standard 49-inch cabinet does without adding a third door or a second machine. Six epoxy coated wire shelves are supplied on height-adjustable stainless clips.

26 and 26 in a 59-inch cabinet

The extra nine inches of width over a standard two-section cabinet go into both compartments equally, so each side gains roughly four cubic feet. That is enough to matter when the load is full-size sheet pans or bulk cases that would sit awkwardly in a narrower section. An insulated wall runs between the compartments so the freezer side does not drag the refrigerated side below setpoint, and each section has its own multi-function digital controller with an LED readout.

Independent circuits on a single receptacle

Two separate refrigeration circuits serve the cabinet: a 1/4+ HP system rated at 1,926 BTU/hr for the refrigerated side, holding 33°F to 54°F, and a 1/2 HP system rated at 1,670 BTU/hr for the freezer, holding -10°F to 54°F. Both are top-mounted Blizzard R290 cartridges, detachable as complete assemblies so a failed system is swapped rather than brazed in place. Combined draw is 9 amps on one standard 115V NEMA 5-15P outlet, so the cabinet needs a single receptacle despite running two independent systems.

Specifications

Model ESWRF2
Type Dual-temperature wide reach-in refrigerator/freezer, top mount
Capacity 26 cu. ft. refrigerator / 26 cu. ft. freezer
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 59"W x 31-5/8"D x 74-1/4"H
Refrigerator temperature 33°F to 54°F (factory preset 35°F)
Freezer temperature -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressors 1/4+ HP refrigerator, 1/2 HP freezer, top mounted
Cooling capacity 1,926 BTU/hr refrigerator, 1,670 BTU/hr freezer
Electrical 115V / 60Hz / 1Ph, 9.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Electric heater (freezer), air defrost (refrigerator)
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 529 lbs. (crated shipping weight)

Warranty

Everest Refrigeration warrants this cabinet for three years on parts and labor, with the compressors covered for a total of five years. Service is arranged through the manufacturer's authorized agent network.
