Product Description

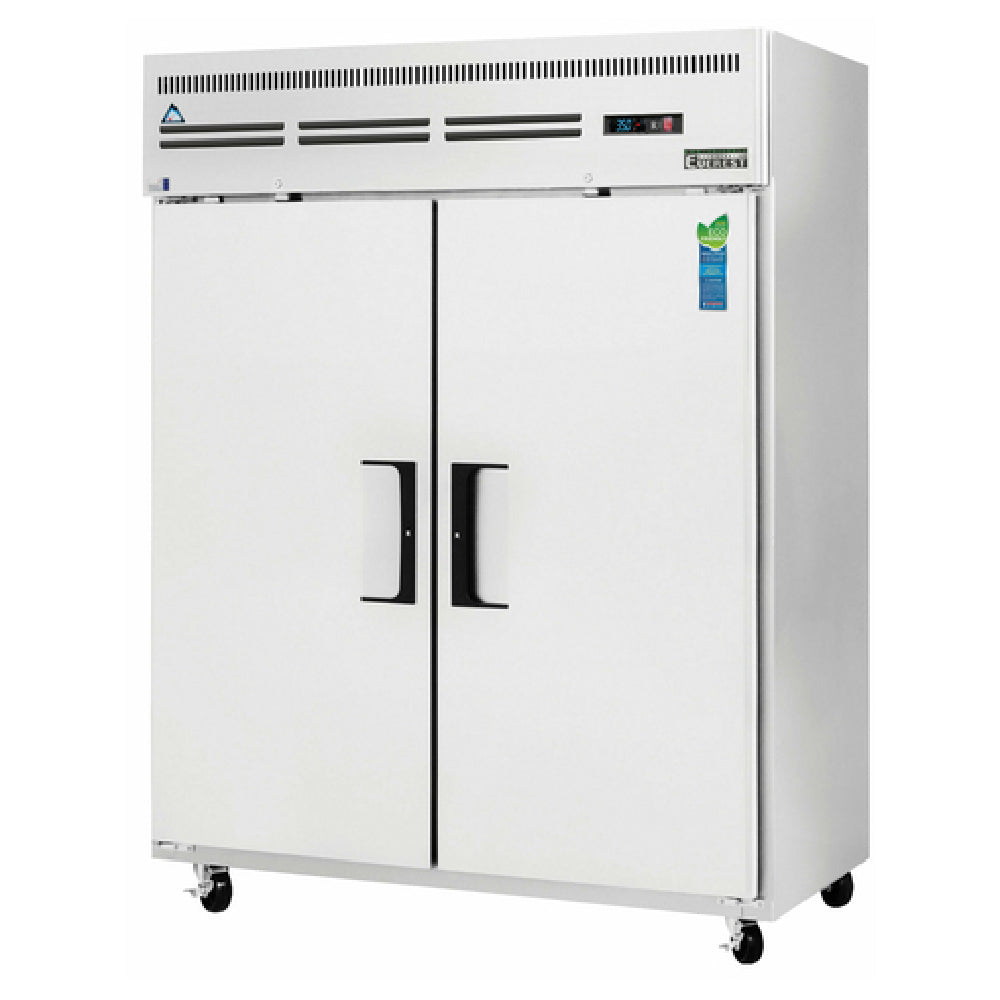

The Everest ESWF2 is a wide-body two-door reach-in freezer holding 55 cubic feet in a cabinet 59 inches across. It gains seven cubic feet over Everest's 49-inch freezer without going to a third door, which is the useful middle step for kitchens whose frozen inventory has outgrown a standard two-section box but that do not have room for a 75-inch cabinet. Six epoxy coated wire shelves are supplied on height-adjustable stainless clips.

Extra width, same door count

The nine additional inches of cabinet width go entirely into storage rather than into a third compartment, so each of the two doors opens onto a wider section. That is worth having when the load is full sheet pans or long boxes that would not fit a narrower opening, and it means less product shuffling to reach the back. It also means each door opening exposes more of the cabinet, so a self-closing door mechanism does more work here than on a narrow box. Everest fits an adjustable torsion closer and heated door frames to keep the perimeter dry and the seal intact.

Electrical requirement and refrigeration

Like Everest's other two-section freezers, the ESWF2 draws 7.5 amps and terminates in a NEMA 5-20P plug rather than the more common 5-15P. Verify a dedicated 20-amp circuit and a matching receptacle before the unit arrives, because the plug will not seat in a standard 15-amp outlet. The refrigeration side is a 1 HP top-mounted Blizzard R290 cartridge producing 2,840 BTU/hr, factory preset to -4°F with an adjustment range from -10°F to 54°F, and defrost is electric on a timed start with temperature termination.

Specifications

Model ESWF2
Type Two-section wide reach-in freezer, top mount
Capacity 55 cu. ft.
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 59"W x 31-5/8"D x 74-1/4"H
Temperature range -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressor 1 HP, top mounted
Cooling capacity 2,840 BTU/hr
Electrical 115V / 60Hz / 1Ph, 7.5 amps
Plug NEMA 5-20P, 9 ft. cord
Defrost Time-initiated, temperature-terminated electric defrost heater
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 507 lbs. (crated shipping weight)

Warranty

This freezer carries Everest Refrigeration's three-year parts and labor warranty with an additional five-year compressor warranty, serviced through the manufacturer's authorized agent network.
