Product Description

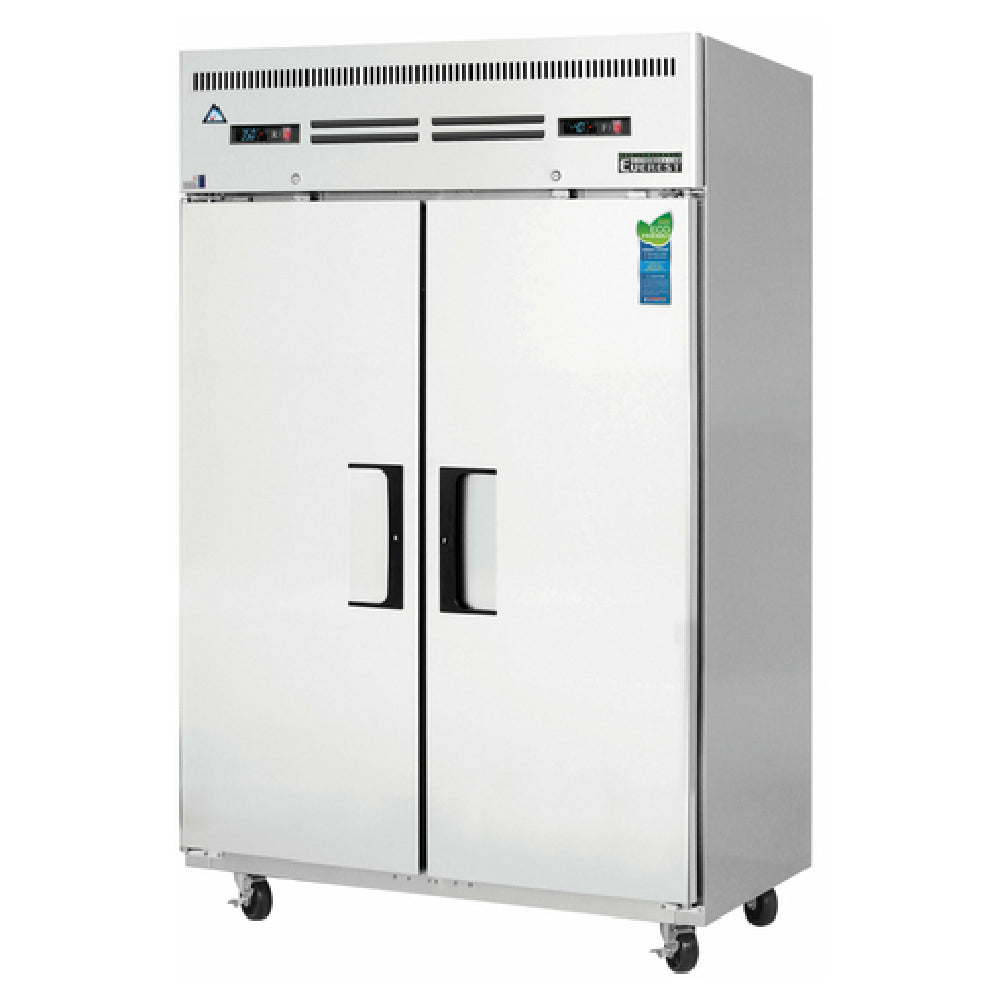

The Everest ESRF2A is a dual-temperature reach-in that divides a 49-5/8 inch cabinet evenly into 22 cubic feet of refrigeration and 22 cubic feet of freezer behind two solid doors. It is the top-mount counterpart to Everest's bottom-mount dual-temp cabinets, and the reason to choose it is placement rather than capacity: the condensing units live on the roof, clear of floor debris. Six epoxy coated wire shelves are supplied across the two sections on adjustable stainless clips.

An even 22/22 split

An insulated interior wall separates the two compartments, and each runs its own refrigeration circuit and its own digital controller. The refrigerator side uses a 1/4+ HP system rated at 1,926 BTU/hr and holds 33°F to 54°F; the freezer side uses a 1/2 HP system rated at 1,670 BTU/hr and holds -10°F to 54°F. An even split suits operations that run genuinely balanced inventories — ice cream and dairy shops, catering kitchens, commissaries staging both chilled and frozen product for the same service.

Two defrost methods in one cabinet

The two sections handle frost differently because their operating temperatures demand it. The freezer compartment runs an electric defrost heater on a timed start with temperature termination, ending the cycle as soon as the coil is clear so the load is not warmed unnecessarily. The refrigerated compartment uses air defrost instead, letting the off cycle melt frost with no added heat at all, which is both more efficient and gentler on product. Both circuits share one 115V cord drawing 9 amps in total.

Specifications

Model ESRF2A
Type Dual-temperature reach-in refrigerator/freezer, top mount
Capacity 22 cu. ft. refrigerator / 22 cu. ft. freezer
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 49-5/8"W x 31-5/8"D x 74-1/4"H
Refrigerator temperature 33°F to 54°F (factory preset 35°F)
Freezer temperature -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressors 1/4+ HP refrigerator, 1/2 HP freezer, top mounted
Cooling capacity 1,926 BTU/hr refrigerator, 1,670 BTU/hr freezer
Electrical 115V / 60Hz / 1Ph, 9.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Electric heater (freezer), air defrost (refrigerator)
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 500 lbs. (crated shipping weight)

Warranty

Everest Refrigeration's coverage on this cabinet runs three years for parts and labor and five years for the compressors, with service performed by authorized Everest agents.
