Product Description

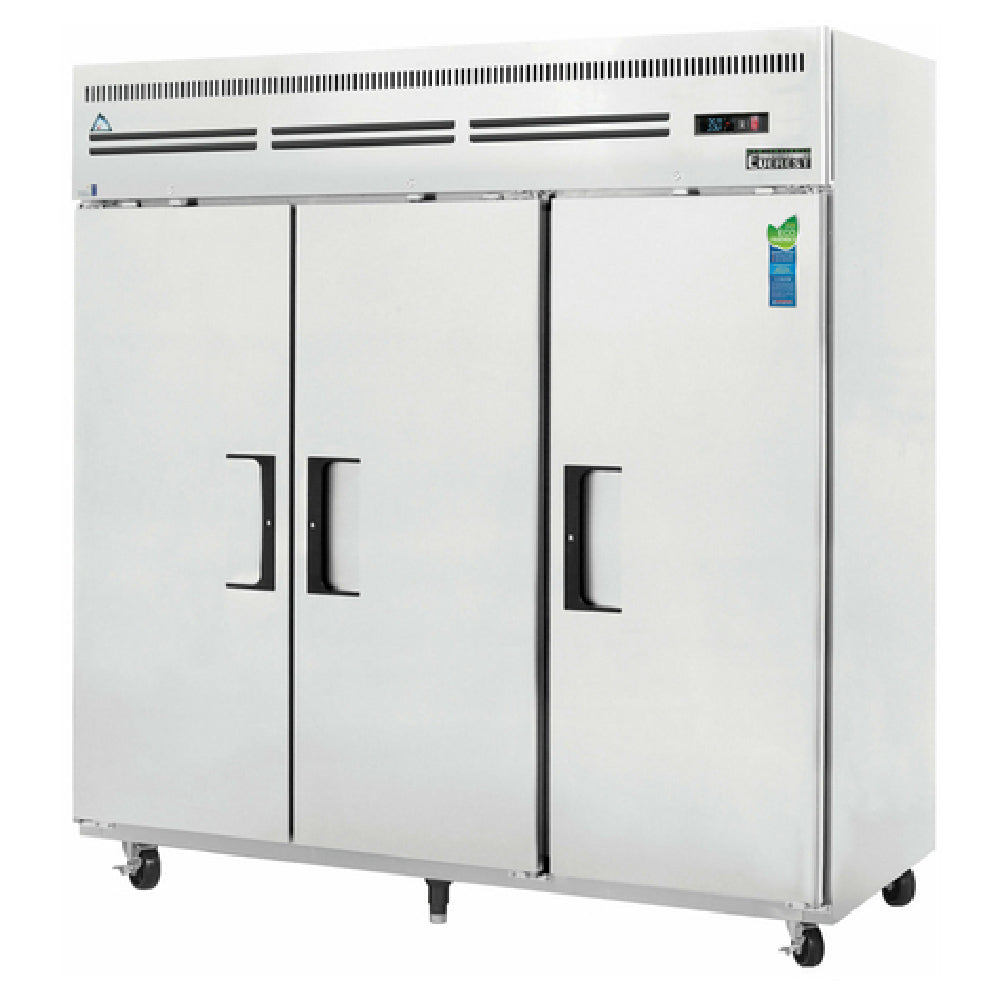

The Everest ESR3 is a three-door reach-in refrigerator holding 71 cubic feet in a cabinet 74-3/4 inches wide. It is the largest single-temperature cabinet in Everest's top-mount line and is generally specified where a walk-in is not practical — leased spaces, second-floor kitchens, or operations that want cold storage on the production floor instead of in a back room. Nine epoxy coated wire shelves are supplied, three per section, on height-adjustable stainless clips.

Three sections on one refrigeration circuit

All 71 cubic feet are served by a single 3/4 HP condensing unit rated at 4,445 BTU/hr, and the interior is open across all three sections with no walls between compartments. That matters for loading: a full-length rack or an oversized pan can go in sideways because there is nothing to route around. It also means the whole cabinet warms and recovers together, so opening one door affects the others. Operations that need genuinely independent zones should look at a dual-temp cabinet instead.

Airflow across a wide cabinet

Distributing cold air evenly gets harder as a cabinet gets wider, which is why the ESR3 uses a full-length air duct running the height of the interior rather than a single discharge point. Electronically commutated fan motors move air at lower power draw than the shaded-pole motors common in older cabinets and recover setpoint faster after a door cycle. The unit still draws only 8 amps on a standard 115V circuit, so no special electrical service is required despite the size. Defrost runs automatically on a timed start with a temperature-based finish.

Specifications

Model ESR3
Type Three-section reach-in refrigerator, top mount
Capacity 71 cu. ft.
Doors (3) solid, self-closing, field reversible, locking
Shelves (9) epoxy coated wire, adjustable
Exterior dimensions 74-3/4"W x 31-5/8"D x 74-1/4"H
Temperature range 33°F to 54°F (factory preset 35°F)
Refrigerant R-290
Compressor 3/4 HP, top mounted
Cooling capacity 4,445 BTU/hr
Electrical 115V / 60Hz / 1Ph, 8.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Time-initiated, temperature-terminated automatic
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 576 lbs. (crated shipping weight)

Warranty

Everest Refrigeration backs its refrigerators and freezers with three years of parts and labor coverage and five years on the compressor. Service is dispatched through Everest's authorized agent network.
