Product Description

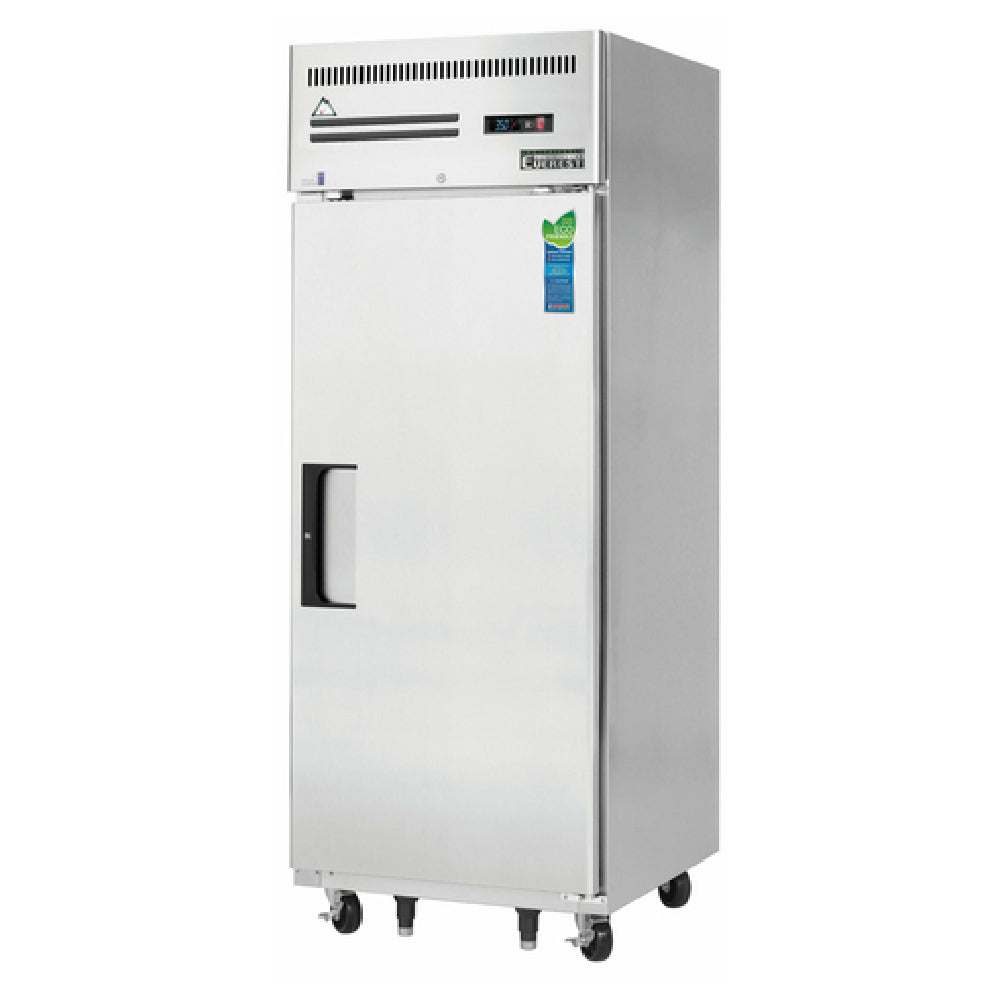

The Everest ESR1 is a single-door reach-in refrigerator with 23 cubic feet of storage in a cabinet 29-1/4 inches wide. It is the size most kitchens reach for when they need a dedicated cold box for one station — a garde manger line, a bar back area, a coffee shop, a small production bakery — without committing the floor space a two-door cabinet takes. Construction is stainless steel inside and out with rounded interior corners, and three epoxy coated wire shelves come standard on adjustable stainless clips.

Top-mounted condensing unit

The ESR1 carries its refrigeration system on the roof of the cabinet. That keeps the coil away from floor-level grease, dust and mop splash, which is the main reason top-mount units are chosen for bakeries, pastry rooms and any operation where flour or fine debris is in the air. It also frees the base of the cabinet, so the lowest shelf sits low and the full interior height is usable storage. The trade-off is that the condenser draws from the warmest air in the room, so a top-mount cabinet is better placed away from a cook line than beside one.

Slide-out R290 cooling cartridge

Everest's Blizzard R290 system is built as a single detachable module rather than a sealed circuit plumbed into the cabinet. A technician can pull and replace the whole assembly without brazing refrigerant lines on site, which turns a multi-hour repair into a swap. R-290 itself is a hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of three, so the unit is not exposed to the phase-down schedules affecting older HFC blends. Defrost is automatic, initiated on a timer and terminated on temperature, so the cycle ends as soon as the coil is clear rather than running a fixed duration.

Specifications

Model ESR1
Type Single-section reach-in refrigerator, top mount
Capacity 23 cu. ft.
Doors (1) solid, self-closing, field reversible, locking
Shelves (3) epoxy coated wire, adjustable
Exterior dimensions 29-1/4"W x 31-5/8"D x 74-1/4"H
Temperature range 33°F to 54°F (factory preset 35°F)
Refrigerant R-290
Compressor 1/4+ HP, top mounted
Electrical 115V / 60Hz / 1Ph, 3.3 amps
Plug NEMA 5-15P
Defrost Time-initiated, temperature-terminated automatic
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 296 lbs. (crated shipping weight)

Warranty

Everest Refrigeration warrants its refrigerators and freezers for three years on parts and labor and five years on the compressor. Service is arranged through Everest's authorized agent network rather than the selling dealer.
