Product Description

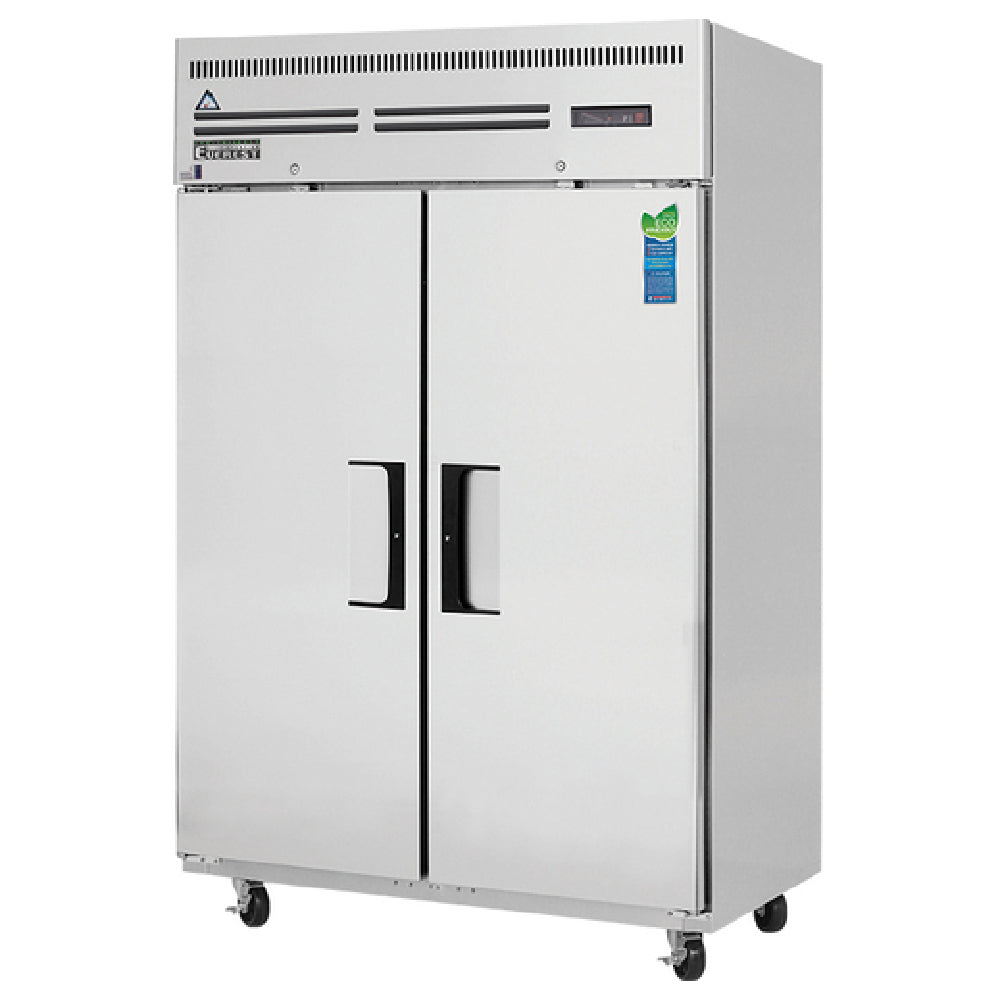

The Everest ESF2 is a two-door reach-in freezer with 48 cubic feet of frozen storage in a 49-5/8 inch wide cabinet. It replaces two single-door freezers with one machine and one circuit, which is usually the reason an operation moves up to this size — frozen inventory has grown past what a single 23 cubic foot box holds, but a walk-in freezer is not on the table. Six epoxy coated wire shelves ship with the unit, three per section, on adjustable stainless clips.

Plan for a 20-amp circuit

This is the specification most often missed on this model. The ESF2 draws 7.5 amps and ships with a NEMA 5-20P plug, not the 5-15P found on Everest's refrigerators. That plug has a horizontal blade and will not fit a standard 15-amp household-style receptacle, so a dedicated 20-amp circuit and matching receptacle need to be confirmed before delivery rather than discovered on installation day. It is a straightforward electrical job, but it is not something a delivery crew can solve on site.

Freezer defrost and airflow

A 1 HP compressor delivering 2,840 BTU/hr holds both sections at a factory preset of -4°F, adjustable down to -10°F or up to 54°F if the cabinet is later reassigned to refrigeration. Defrost is handled by an electric heater started on a timer and terminated on temperature, which keeps the evaporator clear without running long enough to soften the load. A full-length air duct with an airflow guard distributes cold air at every shelf level rather than only near the coil, and the interior is open across both sections so long pans and racks load without obstruction.

Specifications

Model ESF2
Type Two-section reach-in freezer, top mount
Capacity 48 cu. ft.
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 49-5/8"W x 31-5/8"D x 74-1/4"H
Temperature range -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressor 1 HP, top mounted
Cooling capacity 2,840 BTU/hr
Electrical 115V / 60Hz / 1Ph, 7.5 amps
Plug NEMA 5-20P, 9 ft. cord
Defrost Time-initiated, temperature-terminated electric defrost heater
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 450 lbs. (crated shipping weight)

Warranty

Everest Refrigeration's standard coverage applies: three years parts and labor on the cabinet and five years on the compressor. Service is arranged through Everest's authorized agent network.
