Product Description

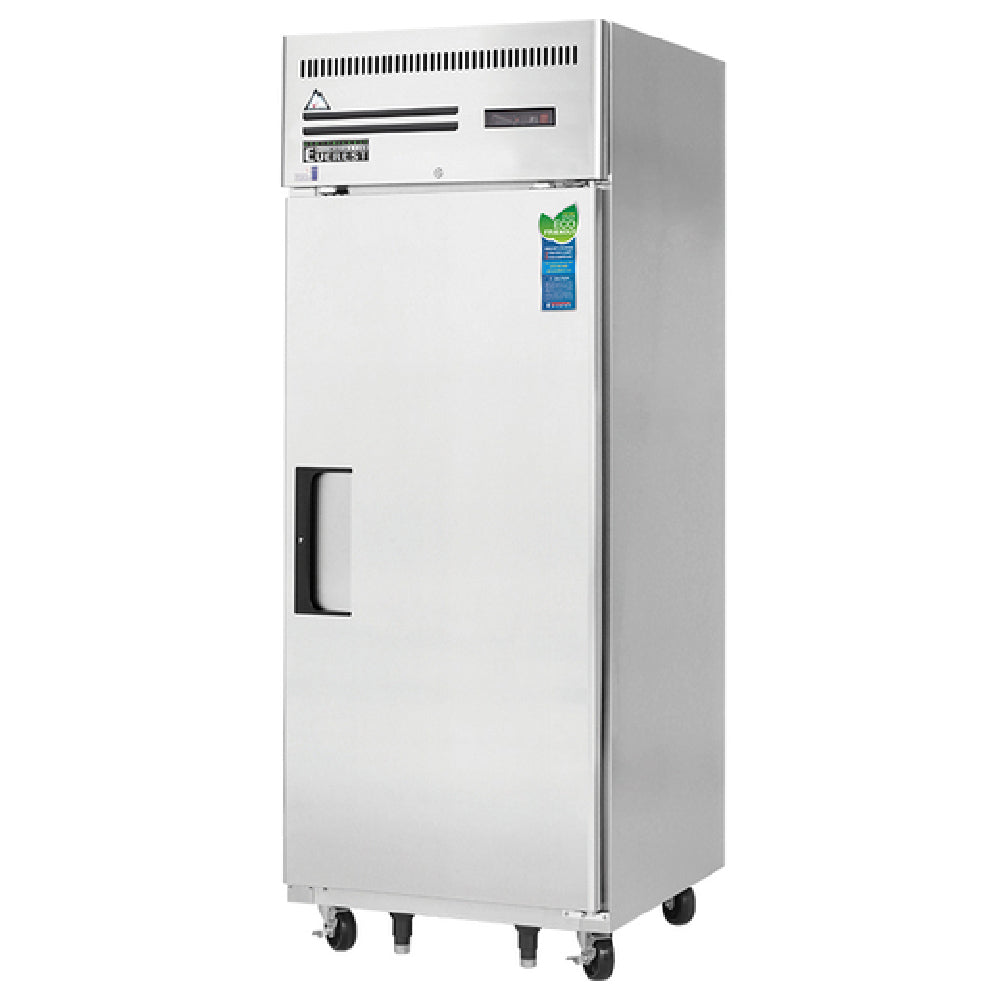

The Everest ESF1 is a single-door reach-in freezer with 23 cubic feet of frozen storage in a 29-1/4 inch wide cabinet. It is sized for the operation that needs one dedicated freezer alongside its refrigeration rather than a shared dual-temp box — a pizzeria holding dough, an ice cream counter, a bar keeping garnish and ice, a kitchen with a steady frozen protein rotation. The cabinet is stainless steel inside and out, and three epoxy coated wire shelves adjust on stainless clips.

Freezer-duty refrigeration and defrost

Pulling a cabinet to -4°F takes considerably more work than holding 35°F, which is why the ESF1 uses a 1/2 HP compressor where the equivalent refrigerator uses 1/4+ HP. It also means frost management becomes the deciding factor in how well the unit runs over years rather than months. The ESF1 uses an electric defrost heater on a timed start and temperature-based termination, so the cycle clears the evaporator and stops rather than running a fixed interval and pushing heat back into the load. The control range extends from -10°F up to 54°F, so the cabinet can be reassigned to refrigeration duty if the kitchen's needs change.

Sealing and moisture control

At freezer temperatures every air leak becomes an ice problem, so the door hardware carries more weight here than on a refrigerator. The ESF1's door is self-closing on an adjustable torsion system and seals against a snap-in magnetic gasket that lifts out by hand for cleaning or replacement. Heated door frames keep the outer perimeter from sweating and then freezing shut, a common failure point on freezers in humid kitchens. The door is field reversible and locks from the factory, and pressure relief devices let the door be reopened immediately after closing instead of fighting the vacuum.

Specifications

Model ESF1
Type Single-section reach-in freezer, top mount
Capacity 23 cu. ft.
Doors (1) solid, self-closing, field reversible, locking
Shelves (3) epoxy coated wire, adjustable
Exterior dimensions 29-1/4"W x 31-5/8"D x 74-1/4"H
Temperature range -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressor 1/2 HP, top mounted
Cooling capacity 1,670 BTU/hr
Electrical 115V / 60Hz / 1Ph, 5.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Time-initiated, temperature-terminated electric defrost heater
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 312 lbs. (crated shipping weight)

Warranty

Everest Refrigeration covers its freezers and refrigerators for three years on parts and labor, with the compressor warranted for five years. Warranty service is performed by Everest's authorized service agents.
