Product Description

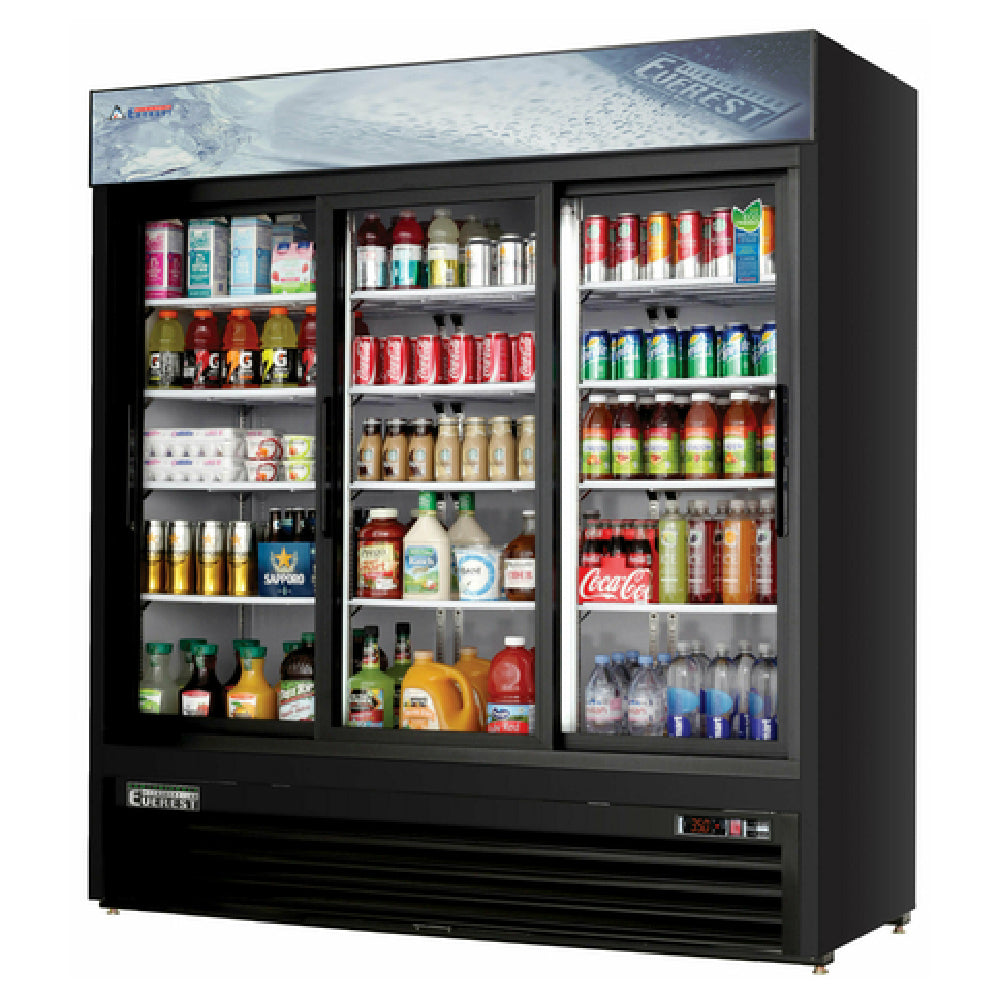

The Everest EMGR69B is a three-door glass merchandiser refrigerator with 69 cubic feet of display space in a cabinet 72-7/8 inches wide, rated by Everest at 672 twenty-ounce bottles. It is a beverage wall in a single machine, aimed at convenience stores, campus retail, cafeterias and any operation selling packaged drinks by volume. Twelve epoxy coated wire shelves with airflow guards are supplied, four per section, adjusting on stainless steel clips.

Sliding doors in a tight aisle

The three glass doors slide on stainless steel tracks rather than swinging out. In a retail aisle that is the difference between a usable and an unusable machine: a swing door on a 73-inch cabinet needs two or three feet of clear approach, while a sliding door needs none. The doors lift out of their tracks for cleaning, which matters because the track is where spilled product and grit collect, and heavy duty bumpers absorb the impact of a door pushed hard by a customer. Locks are fitted from the factory for overnight or unattended hours.

Merchandising glass and lighting

Each door is a double-pane low-emissivity glass panel in a black PVC frame. The low-e coating reflects UV and radiant heat away from the product, which reduces the cooling load a large glass front would otherwise impose and protects packaging and light-sensitive contents from fading. Shielded LED bar lighting runs on its own switch so the display can be darkened without cutting refrigeration, and it contributes far less heat to the cabinet than legacy tube lighting. A 3/4 HP bottom-mounted R-290 system holds the cabinet between 33°F and 54°F, preset at 35°F, on a 7-amp standard 115V circuit.

Specifications

Model EMGR69B
Type Three-door glass merchandiser refrigerator
Capacity 69 cu. ft.
Bottle capacity (672) 20 oz. bottles
Doors (3) low-emissivity double-pane sliding glass, removable, locking
Shelves (12) epoxy coated wire with airflow guard, adjustable
Exterior dimensions 72-7/8"W x 30-3/4"D x 80-1/8"H
Exterior finish Black coated steel; white interior with stainless steel floor
Temperature range 33°F to 54°F (factory preset 35°F)
Refrigerant R-290
Compressor 3/4 HP, bottom mounted
Electrical 115V / 60Hz / 1Ph, 7.0 amps
Plug NEMA 5-15P, 9 ft. cord
Lighting Shielded LED bar with on/off switch
Defrost Time-initiated, temperature-terminated automatic
Insulation 2-1/2" high density polyurethane
Legs (4) height-adjustable screw legs (casters optional)
Crated weight 684 lbs. (crated shipping weight)

Warranty

Everest Refrigeration backs this merchandiser with a three-year parts and labor warranty and a five-year compressor warranty, serviced through its authorized agent network.
