Product Description

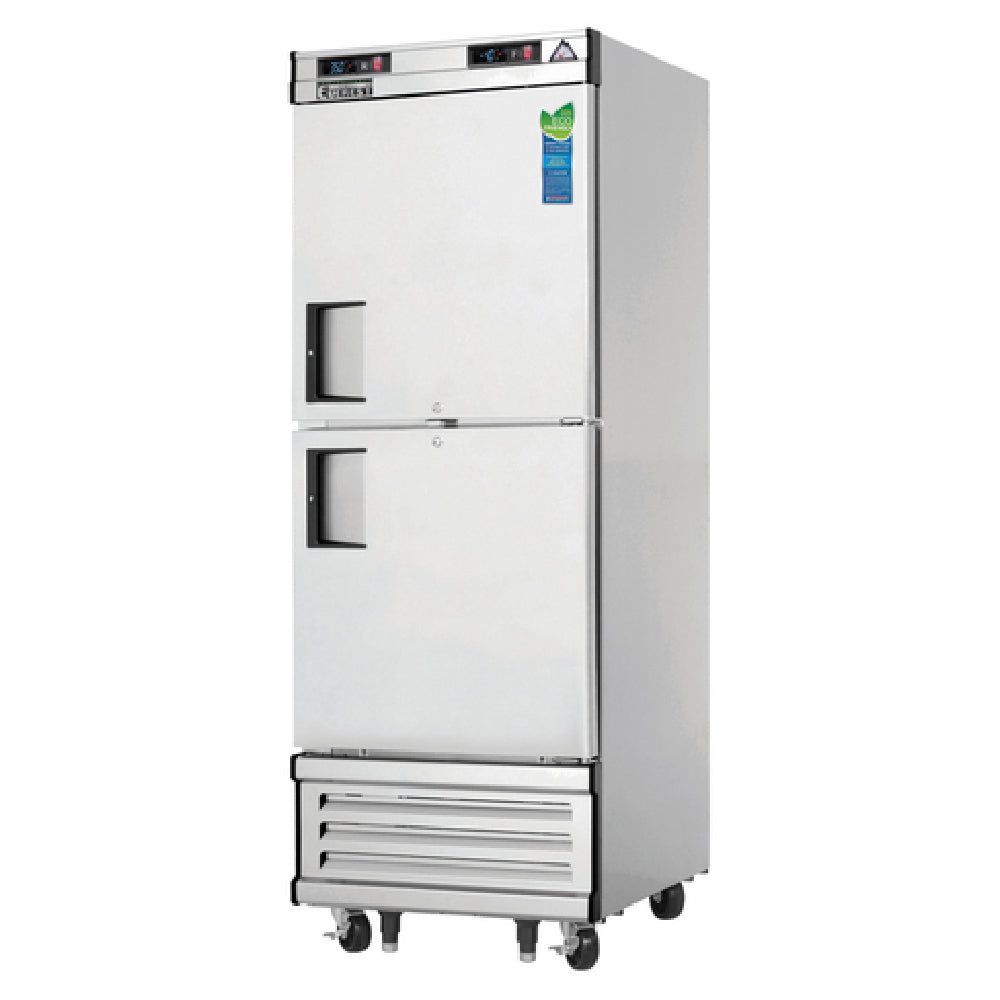

The Everest EBWRFH2 is a dual-temperature reach-in that fits 11 cubic feet of refrigeration and 11 cubic feet of freezer into a cabinet only 29-1/4 inches wide. It is the narrowest way Everest offers both temperatures in one machine, which makes it the answer for bar backs, coffee shops, concession stands, break rooms and prep alcoves where a 54-inch dual-temp cabinet simply will not go. Two epoxy coated wire shelves are supplied, adjustable on stainless steel clips.

Stacked half-door layout

Rather than placing two compartments side by side, the EBWRFH2 stacks them and gives each a half-height hinged door. That is what makes the 29-inch width possible, and it changes how the unit is used day to day: each door opening exposes only half the cabinet, so the section that is not being accessed holds its temperature undisturbed. Both doors are field reversible and lock from the factory, and both are self-closing on an adjustable torsion mechanism. The interior wall between the sections is insulated so the freezer does not overcool the refrigerated side.

One compressor, two defrost strategies

A single 1/2 HP bottom-mounted Blizzard R290 system rated at 3,435 BTU/hr serves the cabinet, with the refrigerator side controlled from 33°F to 54°F and the freezer side from -10°F to 54°F. The freezer compartment uses an electric defrost heater started on a timer and terminated on temperature; the refrigerator compartment uses air defrost, clearing the coil during the off cycle without adding heat to the load. Total draw is 5 amps on a standard 115V, NEMA 5-15P receptacle.

Specifications

Model EBWRFH2
Type Dual-temperature reach-in refrigerator/freezer, bottom mount
Capacity 11 cu. ft. refrigerator / 11 cu. ft. freezer
Doors (2) solid half doors, hinged, self-closing, field reversible, locking
Shelves (2) epoxy coated wire, adjustable
Exterior dimensions 29-1/4"W x 33-1/8"D x 77"H
Refrigerator temperature 33°F to 54°F (factory preset 35°F)
Freezer temperature -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressor 1/2 HP, bottom mounted
Cooling capacity 3,435 BTU/hr
Electrical 115V / 60Hz / 1Ph, 5.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Electric heater (freezer), air defrost (refrigerator)
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 341 lbs. (crated shipping weight)

Warranty

Everest Refrigeration covers this unit with a three-year parts and labor warranty and a five-year compressor warranty, serviced through the manufacturer's authorized agent network.
