Product Description

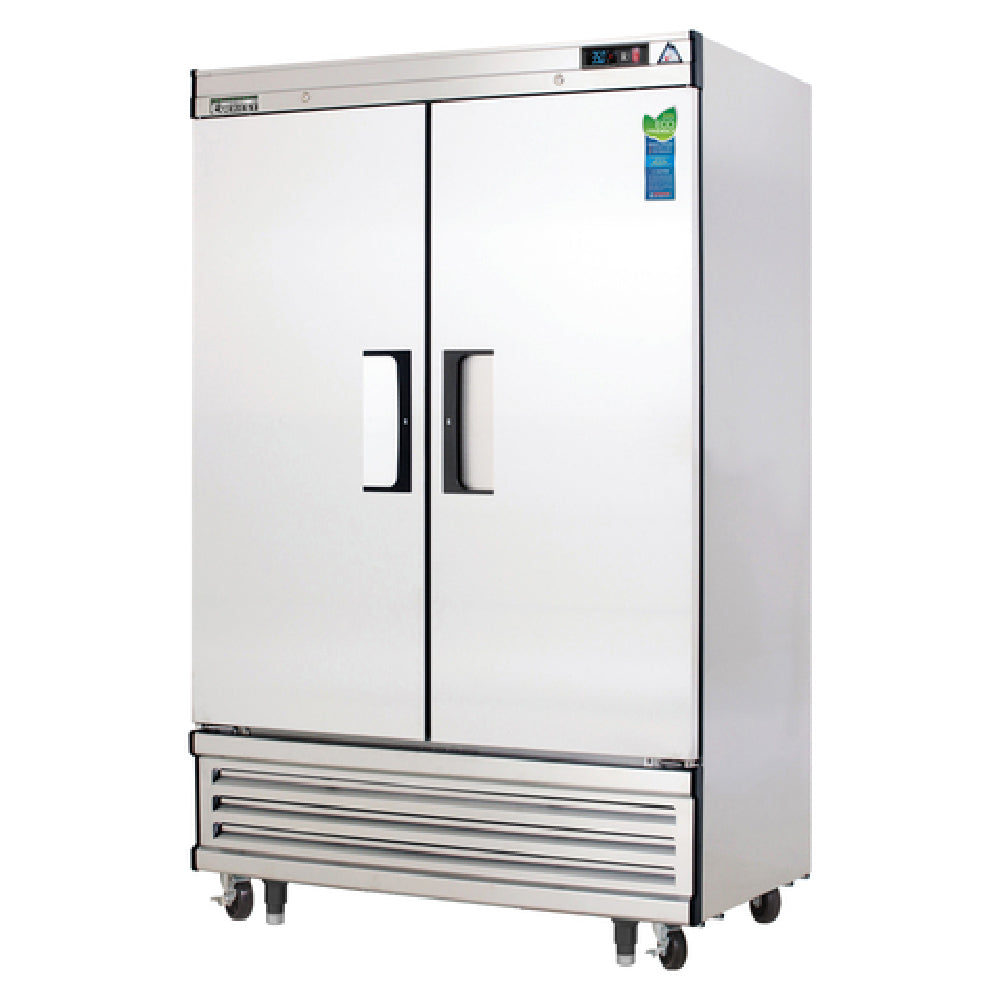

The Everest EBSR2 is a two-door reach-in refrigerator holding 48 cubic feet in a cabinet that measures just under 50 inches across. It suits kitchens that need full two-section capacity but cannot give up the extra four inches a 54-inch box demands, whether because of a doorway, a wall return or a fixed prep line. The cabinet is stainless steel inside and out with rounded interior corners, and the compartment is open across its full width with no center divider. Six adjustable epoxy coated wire shelves are supplied.

Bottom-mount refrigeration in a narrow cabinet

The condensing unit is mounted in the base, which is what allows the EBSR2 to keep its interior volume high relative to its width. Nothing is given up to a top-mounted machine compartment, so usable shelf height runs nearly the full 77 inches of cabinet. Servicing is done at floor level with the unit in place. The Blizzard R290 condensing assembly slides out as one detachable cartridge and requires no on-site brazing to replace, which shortens a service call considerably compared with a conventional sealed system.

Airflow and temperature control

A full-length duct runs the height of the cabinet so cold air is delivered at every shelf level rather than pooling at the bottom, and electronically commutated fan motors pull the cabinet down to setpoint quickly after a door has been open. The digital controller reads out on an LED display and adjusts between 33°F and 54°F, leaving the same cabinet usable for produce holding at the warm end or for tight food-safety margins at the cold end. An audible alarm sounds if the compressor or condenser coil overheats, giving warning before product is at risk.

Specifications

Model EBSR2
Type Two-section reach-in refrigerator, bottom mount
Capacity 48 cu. ft.
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 49-5/8"W x 33-1/8"D x 77"H
Temperature range 33°F to 54°F (factory preset 35°F)
Refrigerant R-290
Compressor 1/3 HP, bottom mounted
Cooling capacity 2,311 BTU/hr
Electrical 115V / 60Hz / 1Ph, 3.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Time-initiated, temperature-terminated automatic
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 471 lbs. (crated shipping weight)

Warranty

This cabinet carries Everest Refrigeration's standard coverage for refrigerators and freezers: three years on parts and labor, with the compressor covered for five years. Claims are handled through Everest's authorized service agent network.
