Product Description

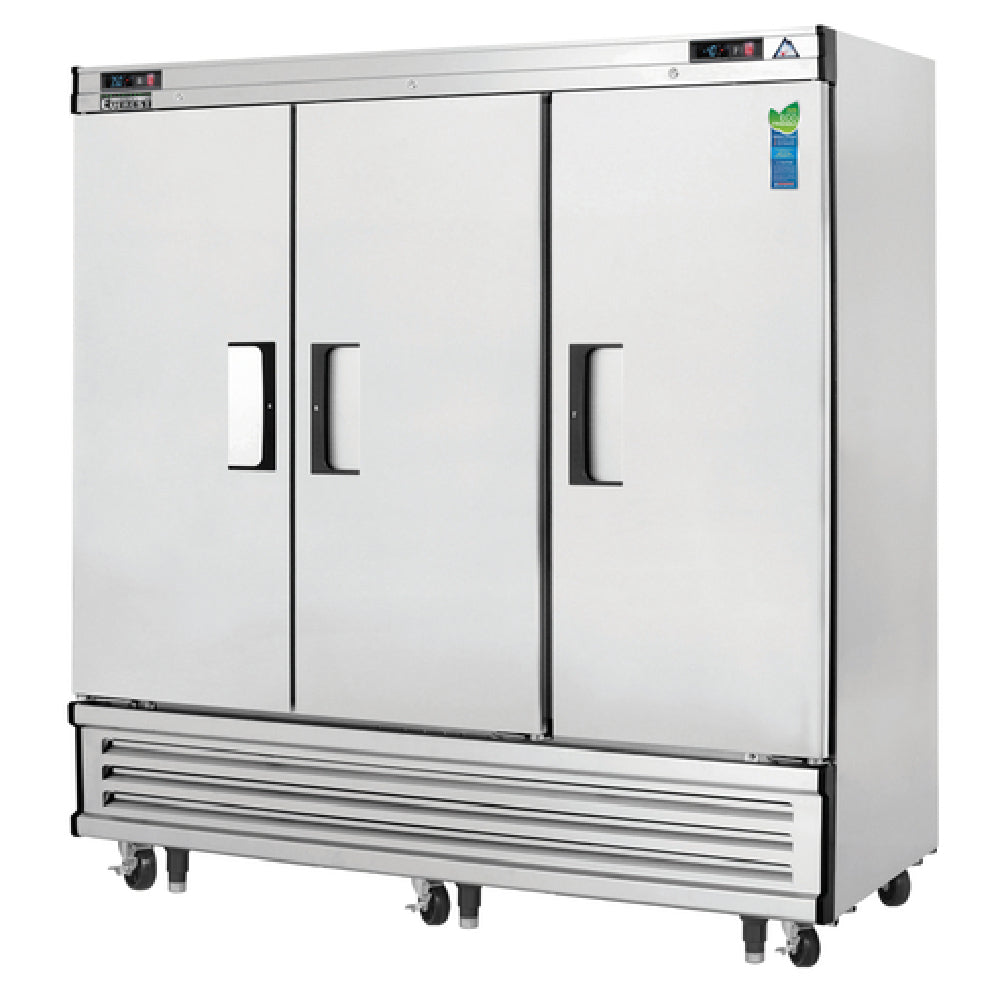

The Everest EBRF3 is a three-door dual-temperature reach-in that divides a 74-3/4 inch cabinet into 46 cubic feet of refrigeration and 22 cubic feet of freezer, 68 cubic feet in total. The split is deliberately uneven, which is the point: most kitchens use far more refrigerated storage than frozen, and this cabinet matches that ratio instead of forcing a 50/50 division. Nine epoxy coated wire shelves are supplied across the sections on height-adjustable stainless steel clips.

An asymmetric temperature split

Two of the three doors open onto the refrigerated side and one onto the freezer, with an insulated wall separating the compartments. Each side runs its own circuit — 1/3+ HP and 2,612 BTU/hr for refrigeration, 1/3 HP and 1,670 BTU/hr for the freezer — and each has its own digital controller, so the two never fight each other. In practice this replaces a two-door refrigerator plus a single-door freezer with one cabinet on one 8-amp receptacle, which frees both floor space and a circuit.

Six casters under a heavy cabinet

Because this is the largest and heaviest cabinet in the EB dual-temp line, Everest fits six 5-inch swivel casters rather than the usual four, with locks on the front set. The extra pair carries the middle span so the base does not flex when the cabinet is loaded and rolled, which is a real concern on a box this wide. Leg stabilizers are included as standard. The bottom-mounted condensing units keep both coils accessible at floor level for cleaning without moving the unit at all.

Specifications

Model EBRF3
Type Dual-temperature reach-in refrigerator/freezer, bottom mount
Capacity 46 cu. ft. refrigerator / 22 cu. ft. freezer (68 cu. ft. total)
Doors (3) solid, self-closing, field reversible, locking
Shelves (9) epoxy coated wire, adjustable
Exterior dimensions 74-3/4"W x 33-1/8"D x 77"H
Refrigerator temperature 33°F to 54°F (factory preset 35°F)
Freezer temperature -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressors 1/3+ HP refrigerator, 1/3 HP freezer, bottom mounted
Cooling capacity 2,612 BTU/hr refrigerator, 1,670 BTU/hr freezer
Electrical 115V / 60Hz / 1Ph, 8.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Electric heater (freezer), air defrost (refrigerator)
Insulation 2-1/2" high density polyurethane
Casters (6) 5" swivel, locking front set
Crated weight 698 lbs. (crated shipping weight)

Warranty

Everest Refrigeration provides three years of parts and labor coverage on this cabinet and five years on the compressors. Warranty service is dispatched through Everest's authorized service agents.
