Product Description

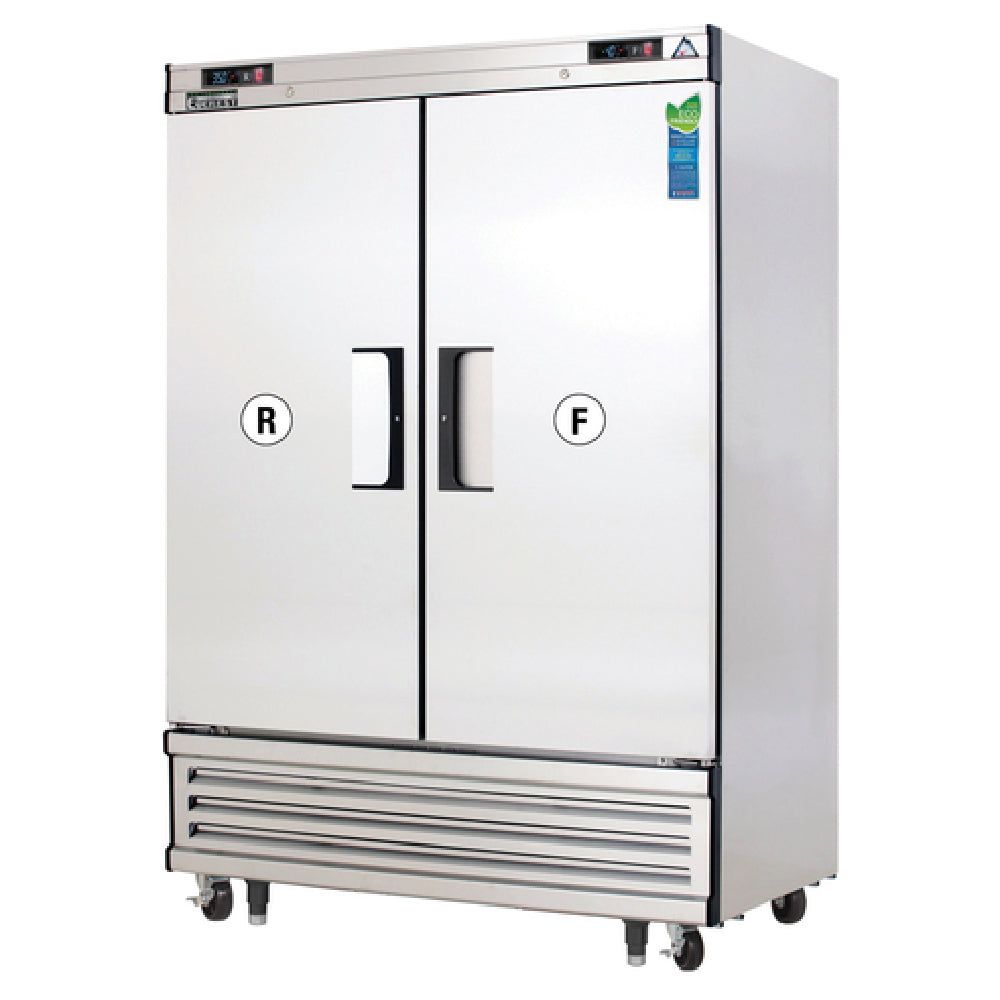

The Everest EBRF2 is a dual-temperature reach-in that splits a 54-1/8 inch cabinet evenly into 24 cubic feet of refrigeration and 24 cubic feet of freezer, each behind its own solid door. It exists for kitchens that need both temperatures but only have floor space and electrical capacity for one machine — a common situation in bar-forward restaurants, cafes and satellite kitchens. Six epoxy coated wire shelves are supplied across the two sections on adjustable stainless clips.

Two sections, two circuits, one plug

Unlike a single-temperature cabinet, the EBRF2 has an insulated wall between the compartments and independent refrigeration for each: a 1/4+ HP circuit producing 1,672 BTU/hr on the refrigerator side and a 1/2 HP circuit producing 3,435 BTU/hr on the freezer side. The refrigerator holds 33°F to 54°F and the freezer -10°F to 54°F, set separately, so opening one door does not disturb the other section's temperature. Both circuits run from a single 115V cord drawing 8 amps total, which is what makes this a one-receptacle installation rather than two.

Bottom-mount service access and defrost

The condensing units sit in the base of the cabinet, keeping the coils reachable at floor level and out of the hot air near the ceiling. The two sections defrost differently because they have to: the freezer uses an electric defrost heater on a timed start with temperature termination, while the refrigerator side uses air defrost, relying on the off-cycle to clear the coil without adding heat. Four 5-inch swivel casters with locks on the front pair let a loaded cabinet be rolled out for cleaning behind it.

Specifications

Model EBRF2
Type Dual-temperature reach-in refrigerator/freezer, bottom mount
Capacity 24 cu. ft. refrigerator / 24 cu. ft. freezer
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 54-1/8"W x 33-1/8"D x 77"H
Refrigerator temperature 33°F to 54°F (factory preset 35°F)
Freezer temperature -10°F to 54°F (factory preset -4°F)
Refrigerant R-290
Compressors 1/4+ HP refrigerator, 1/2 HP freezer, bottom mounted
Cooling capacity 1,672 BTU/hr refrigerator, 3,435 BTU/hr freezer
Electrical 115V / 60Hz / 1Ph, 8.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Electric heater (freezer), air defrost (refrigerator)
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 613 lbs. (crated shipping weight)

Warranty

Everest Refrigeration warrants this cabinet for three years on parts and labor and five years on the compressors, with service handled through its authorized agent network.
