Product Description

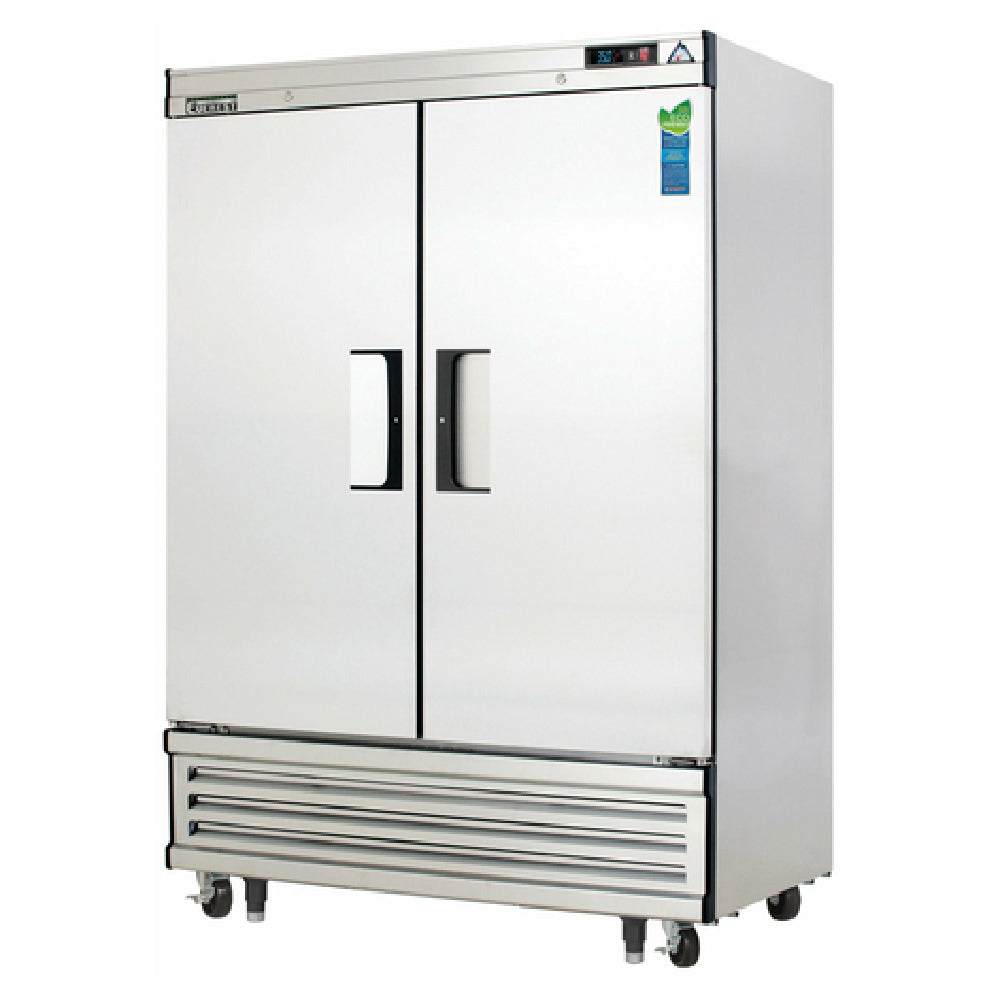

The Everest EBR2 is a two-section reach-in refrigerator that holds 50 cubic feet behind two solid doors in a cabinet 54-1/8 inches wide. It is built for restaurant, bakery, school and institutional kitchens that need bulk cold storage on one footprint rather than several undercounter boxes. The interior is a single open compartment with no dividing wall between sections, so sheet pans, hotel pans and tall stock containers can be loaded across the full width. Six epoxy coated wire shelves ship with the unit and reposition on stainless steel clips.

Bottom-mounted condensing unit

The refrigeration system sits in the base of the cabinet instead of on top of it. That places the condenser coil at floor level, where staff can brush it clean without a ladder, and it keeps the compressor out of the hot air layer that collects near a kitchen ceiling. In a line position next to fryers or under a hood, that difference shows up as less run time. The trade-off is proximity to floor dust and mop water, so the coil needs cleaning on a shorter interval; an air circulation guard keeps boxes and mats from blocking the intake. The Blizzard R290 assembly is a self-contained cartridge that detaches as a unit, so a failed system is swapped rather than brazed in place on site.

Doors, insulation and shelving

Both doors are field reversible, which means the swing direction is set during installation to suit the aisle rather than fixed at the time of order. A torsion mechanism pulls each door closed from a partly open position, worth having in a kitchen where doors get bumped and left ajar, and frame heaters keep condensation from forming on the outer edge. Cabinet walls and doors are insulated with 2-1/2 inches of high density polyurethane foam, and the magnetic door gasket snaps in and out by hand for washing or replacement. Locks are fitted to both doors from the factory.

Specifications

Model EBR2
Type Two-section reach-in refrigerator, bottom mount
Capacity 50 cu. ft.
Doors (2) solid, self-closing, field reversible, locking
Shelves (6) epoxy coated wire, adjustable
Exterior dimensions 54-1/8"W x 33-1/8"D x 77"H
Temperature range 33°F to 54°F (factory preset 35°F)
Refrigerant R-290
Compressor 1/3 HP, bottom mounted
Cooling capacity 2,311 BTU/hr
Electrical 115V / 60Hz / 1Ph, 3.0 amps
Plug NEMA 5-15P, 9 ft. cord
Defrost Time-initiated, temperature-terminated automatic
Insulation 2-1/2" high density polyurethane
Casters (4) 5" swivel, locking front pair
Crated weight 520 lbs. (crated shipping weight)

Warranty

Everest Refrigeration covers its refrigerators and freezers with a three-year parts and labor warranty plus an additional five-year compressor warranty. Service is carried out through Everest's authorized service agent network, so keep the model and serial plate legible and accessible for any claim.
