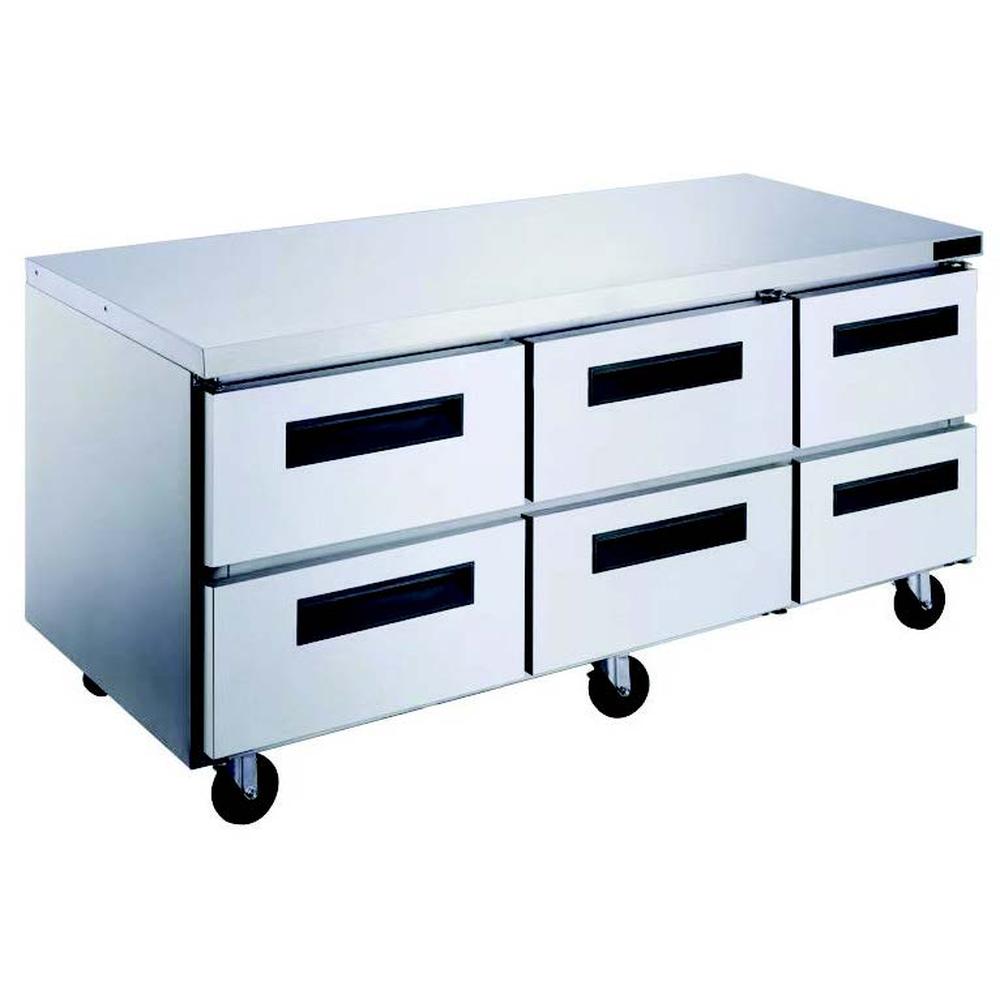

Dukers DUC72R-D6 six drawer undercounter refrigerator in stainless steel

Product Description

The Dukers DUC72R-D6 is a six-drawer undercounter refrigerator holding 18.96 cu. ft. in a 72-1/2" wide cabinet at counter height. Six independently opening drawers across six feet of bench make it the configuration for a multi-position cook line where several people work the same run of counter at once.

Six drawers, six people's worth of access

The point of six drawers on a 72" cabinet is not more volume — it is that two or three cooks can be in the cabinet simultaneously without reaching across each other. Each drawer opens independently, holds where it is left on a stay-open detent, and self-closes. Only a sixth of the cabinet is exposed on any access, so the interior stays close to setpoint even through the busiest part of service.

Back-mounted 1/3 HP compressor

The compressor sits at the back of the cabinet rather than below the drawers. That keeps the full drawer height usable for product and puts the condenser where a technician can reach it without pulling the unit apart or emptying it first — a real consideration on a 242 lb cabinet built into a bench run. It draws 3.4 amps and 380 watts to hold 33°F to 41°F.

Pans, controls and construction

All six drawers are sized around 6" deep food pans, which are not included. R290 hydrocarbon refrigerant with a 4.41 oz charge. Digital control with an LED display. Brushed stainless steel inside and out. The shipping crate is 73-7/8" x 33-1/8" x 39-3/8", so confirm doorways and turns before delivery day.

Specifications

Model DUC72R-D6
Type Undercounter refrigerator, 6 self-closing drawers with stay-open feature
Capacity 18.96 cu. ft.
Exterior dimensions (W x D x H) 72-1/2" x 31-1/2" x 36"
Crate dimensions (W x D x H) 73-7/8" x 33-1/8" x 39-3/8"
Net weight 242 lbs
Temperature range 33°F to 41°F
Compressor 1/3 HP, back mounted
Electrical 115V / 60Hz / 3.4 amps / 380 watts
Plug NEMA 5-15P
Refrigerant R290, 4.41 oz charge
Pan capacity Drawers accept 6" deep food pans (pans not included)
Certifications ETL Listed; NSF compliant
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
