Product Description

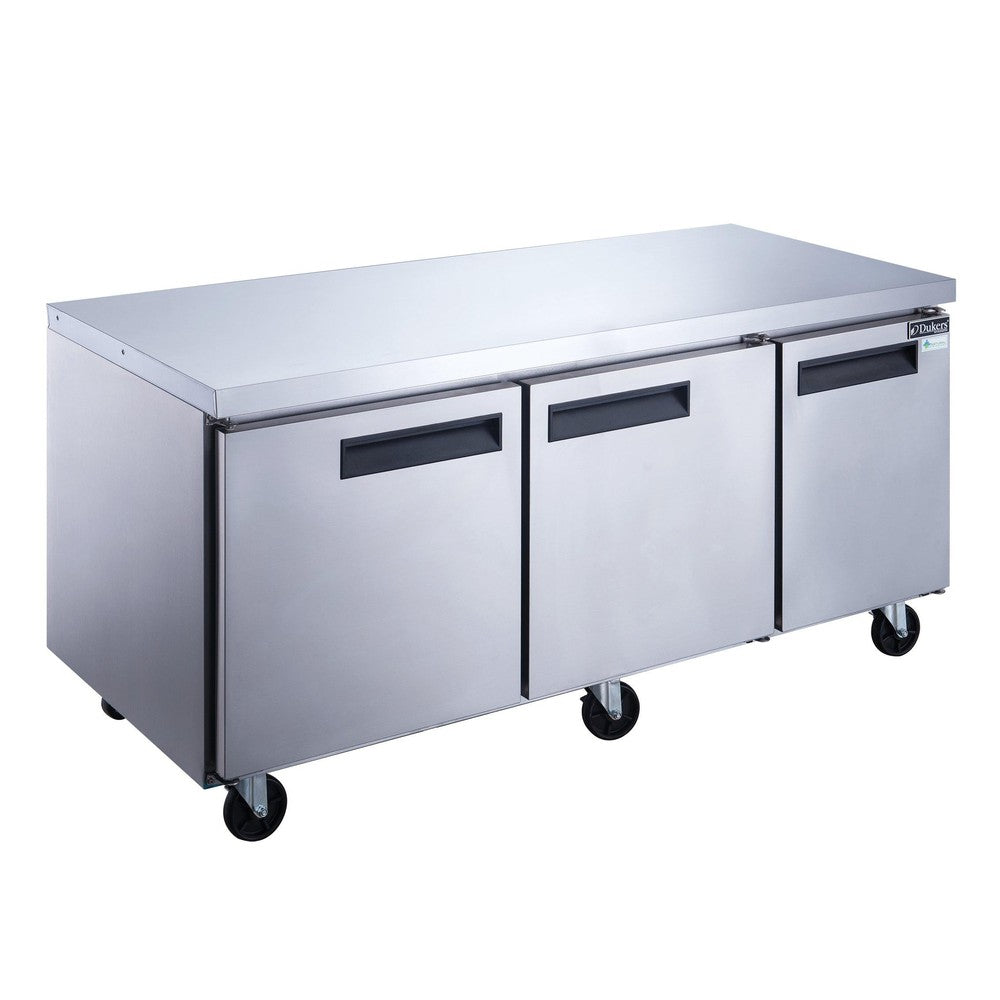

The Dukers DUC72F is a three-door undercounter freezer with 18.96 cu. ft. of storage at 0°F to -8°F, in a 72-1/2" wide cabinet finished to counter height. It is the largest undercounter freezer in the Dukers line and is intended to hold a full line's frozen inventory beneath the bench.

A 3/4 HP system, and what it means for your circuit

Freezing 18.96 cu. ft. in a hot kitchen takes real capacity: this unit runs a 3/4 HP compressor on 8.0 amps and 1050 watts. That is close to the practical ceiling for a 15-amp branch circuit, so it should have its own dedicated receptacle rather than sharing with a toaster or a mixer. Confirm the circuit before delivery — it is the most common surprise on an install of this size.

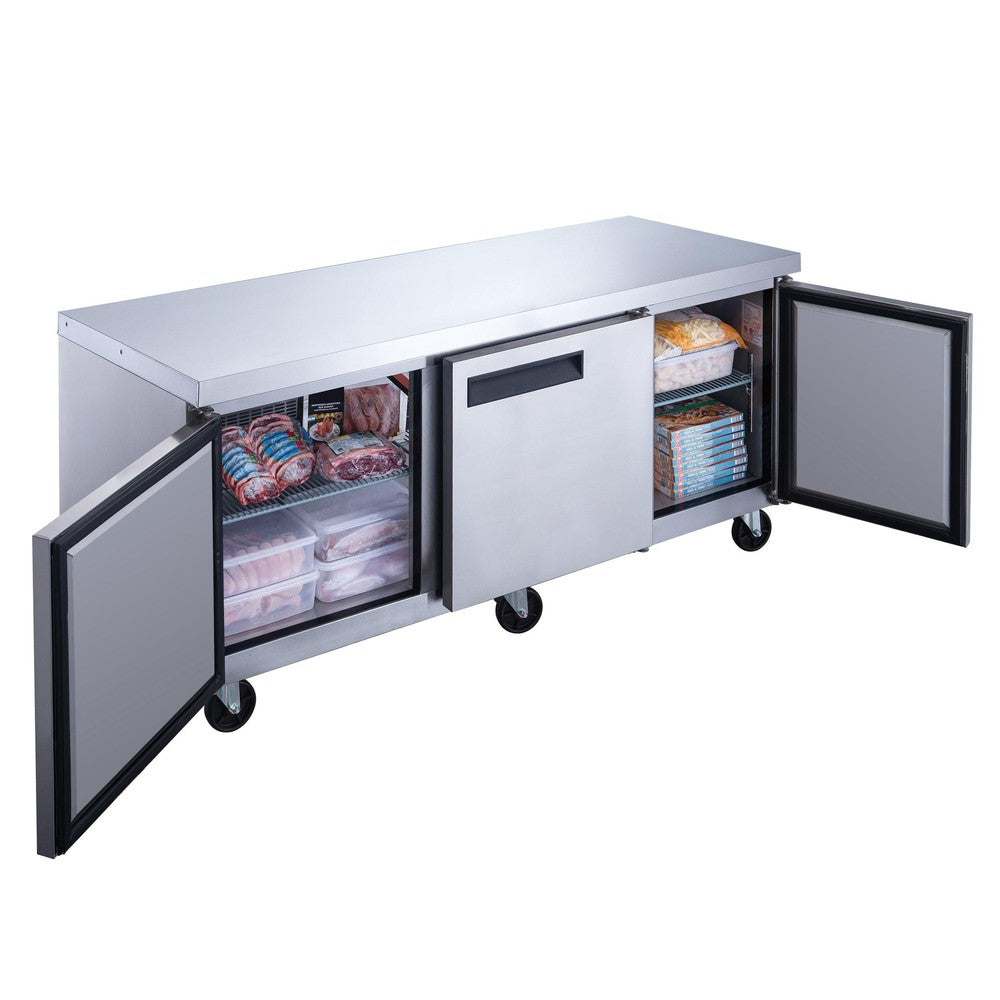

Three sections, three doors

Splitting six feet of freezer across three self-closing doors matters more here than on a refrigerator. Every opening on a freezer admits warm humid air that condenses and frosts on the evaporator, and frost is what degrades performance over a season. Opening one third of the cabinet at a time keeps that intake down and keeps defrost cycles shorter.

Refrigerant and construction

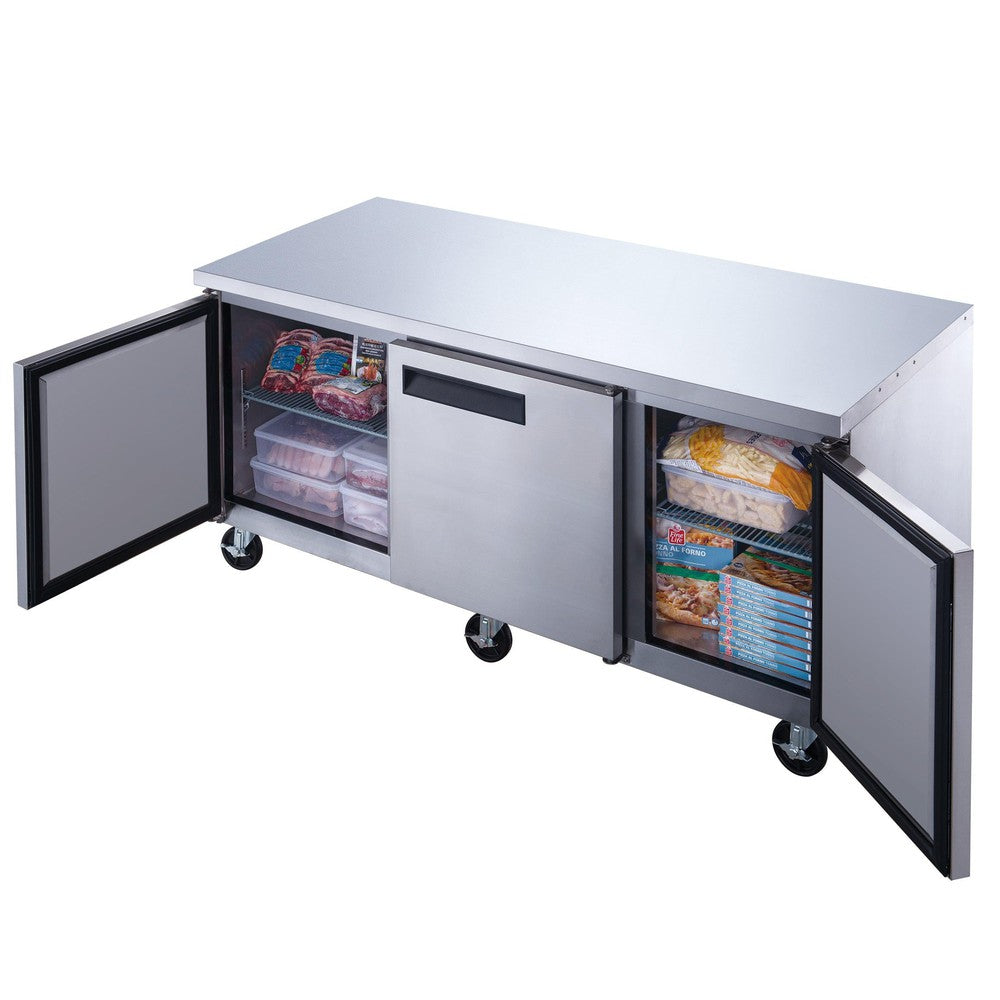

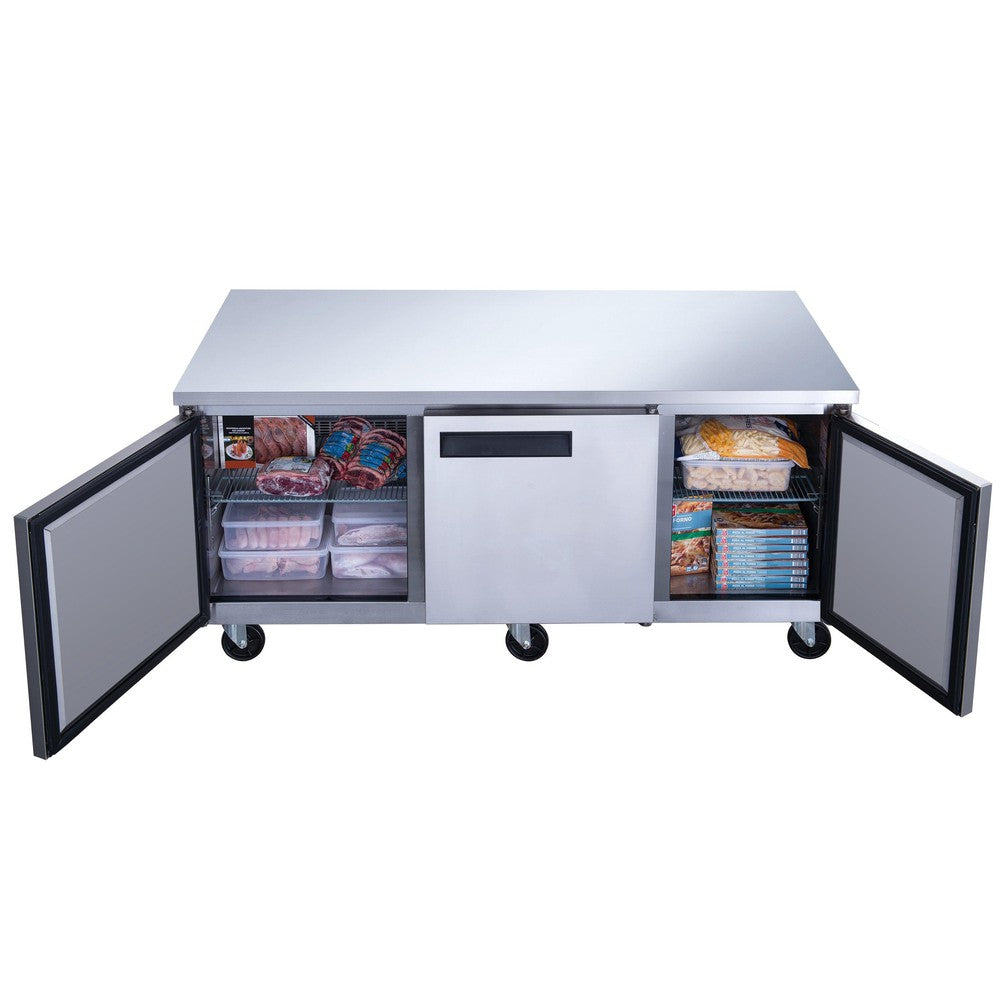

R290 hydrocarbon refrigerant with a 4.76 oz charge, brushed stainless steel inside and out, and three adjustable removable wire shelves — one per section. At 242 lbs net in a 73-7/8" x 33-1/8" x 39-3/8" crate, plan the delivery route before the truck arrives.

Specifications

Model DUC72F
Type Undercounter freezer, three solid self-closing doors
Capacity 18.96 cu. ft.
Exterior dimensions (W x D x H) 72-1/2" x 31-1/2" x 36"
Crate dimensions (W x D x H) 73-7/8" x 33-1/8" x 39-3/8"
Net weight 242 lbs
Temperature range 0°F to -8°F
Compressor 3/4 HP
Electrical 115V / 60Hz / 8.0 amps / 1050 watts
Plug NEMA 5-15P
Refrigerant R290, 4.76 oz charge
Shelves 3, adjustable and removable
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
