Product Description

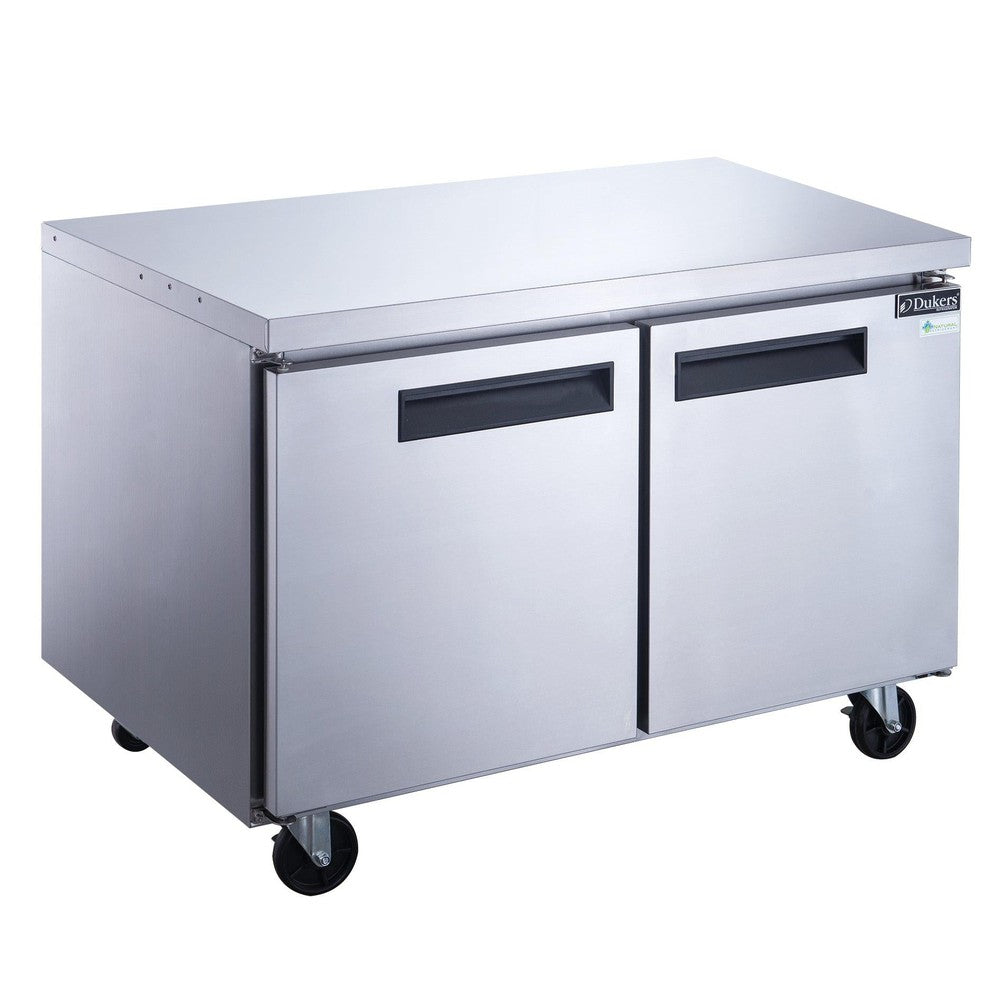

The Dukers DUC60R is a two-door undercounter refrigerator carrying 15.53 cu. ft. in a 60-1/8" wide cabinet at standard counter height. At this width it becomes the primary cold storage for a station rather than a top-up cabinet, holding enough for a full service on a busy line.

Volume that changes how the station runs

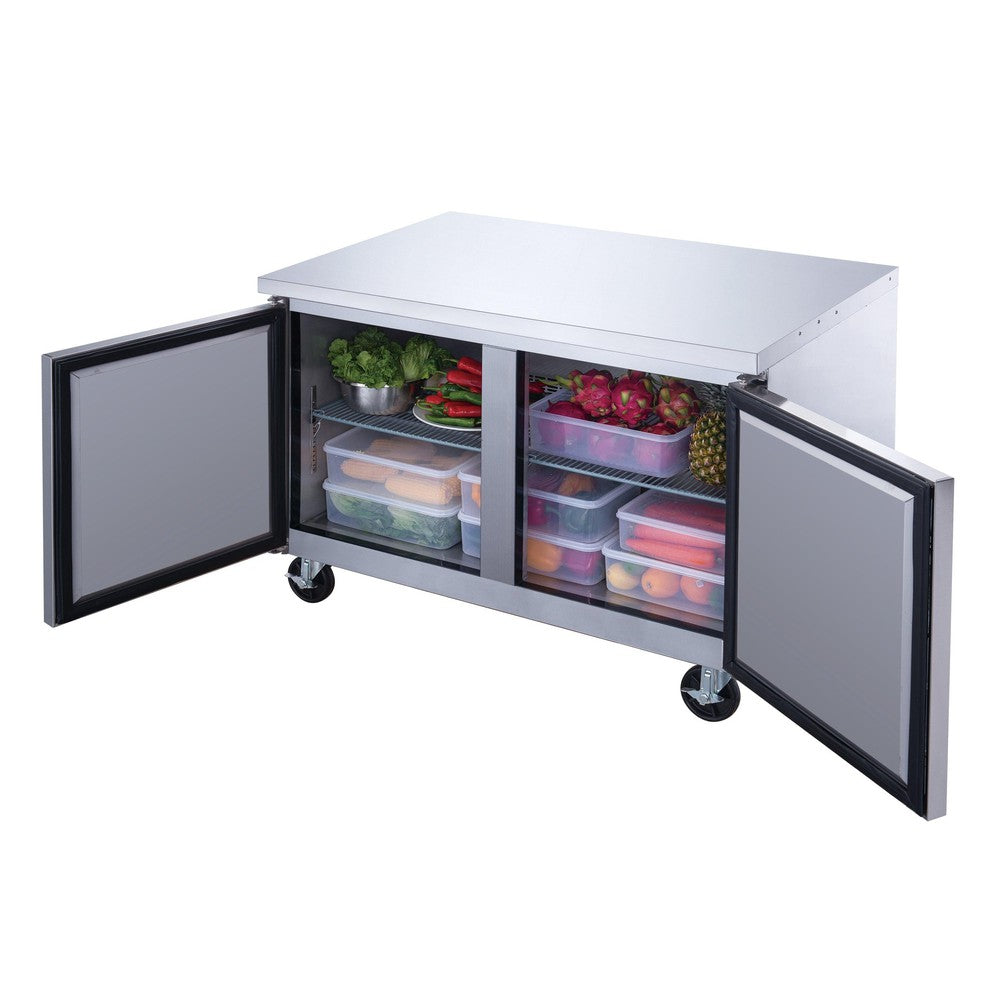

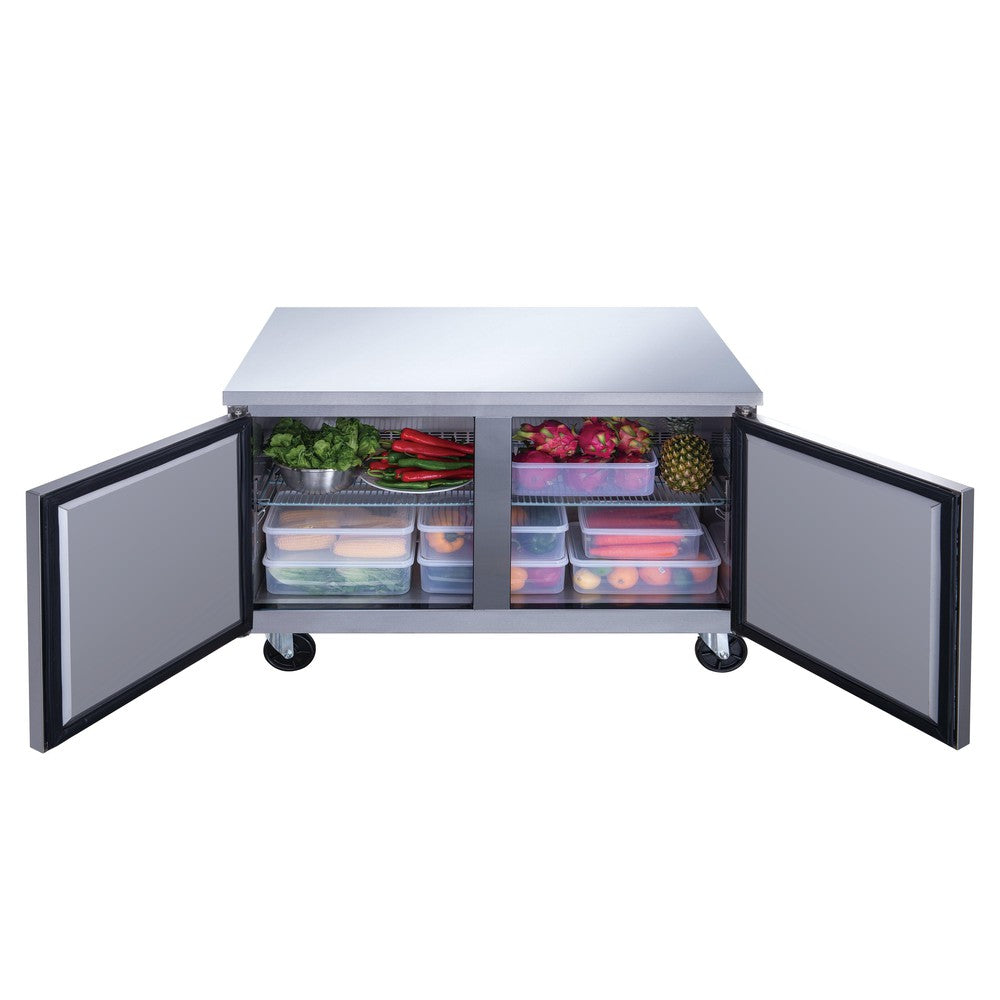

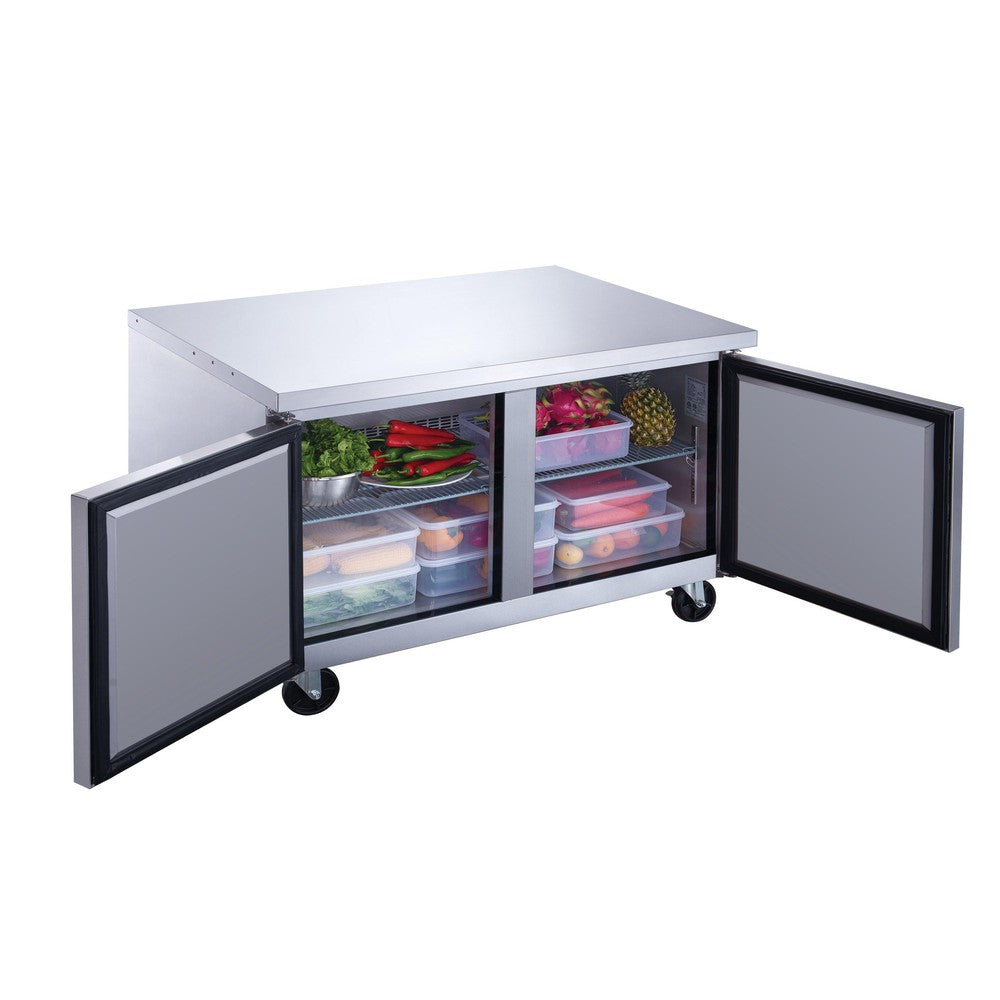

15.53 cu. ft. is roughly two and a half times what a 29" unit holds, which is usually the point at which a station stops needing mid-service runs to the walk-in altogether. Two adjustable, removable wire shelves divide the cabinet, and because the width is spread over only two doors, each half is deep enough to take full-size pans laid flat rather than forcing everything onto its side.

Small compressor, large cabinet

The 1/5 HP system draws 2.4 amps and 280 watts to hold 33°F to 41°F — the same electrical load as the 48" model despite the extra volume. That is possible because R290 hydrocarbon refrigerant, here with a 3.88 oz charge, transfers heat more efficiently than the HFC blends it replaced, and because a well-insulated cabinet at counter height has relatively little surface area exposed per cubic foot of storage.

Getting it into the space

The crate is 61-5/8" x 33-1/8" x 39-3/8" and the unit is 231 lbs net. A 60" undercounter is one of the pieces most often ordered for a space it will not turn into, so measure the delivery path, not just the final slot. Brushed stainless steel inside and out, with self-closing doors.

Specifications

Model DUC60R
Type Undercounter refrigerator, two solid self-closing doors
Capacity 15.53 cu. ft.
Exterior dimensions (W x D x H) 60-1/8" x 31-1/2" x 36"
Crate dimensions (W x D x H) 61-5/8" x 33-1/8" x 39-3/8"
Net weight 231 lbs
Temperature range 33°F to 41°F
Compressor 1/5 HP
Electrical 115V / 60Hz / 2.4 amps / 280 watts
Plug NEMA 5-15P, 9 ft. cord
Refrigerant R290, 3.88 oz charge
Shelves 2, adjustable and removable
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
