Product Description

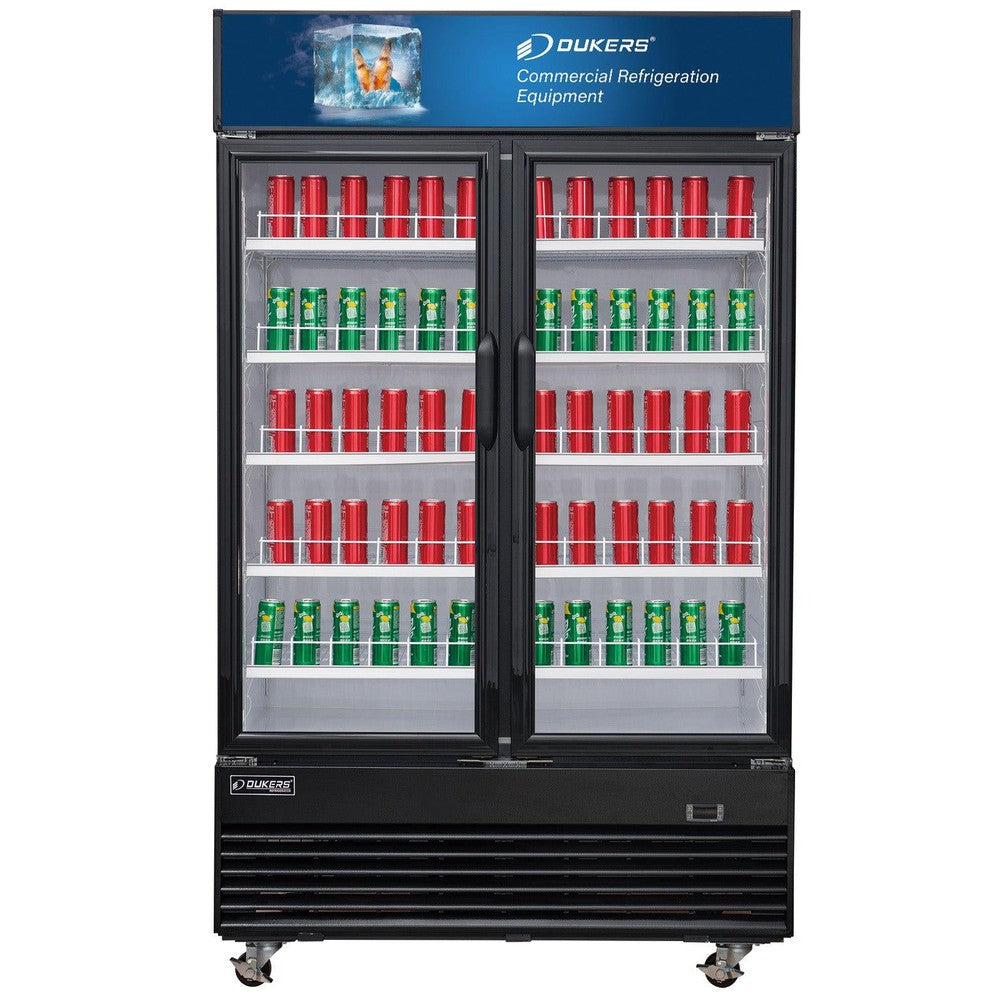

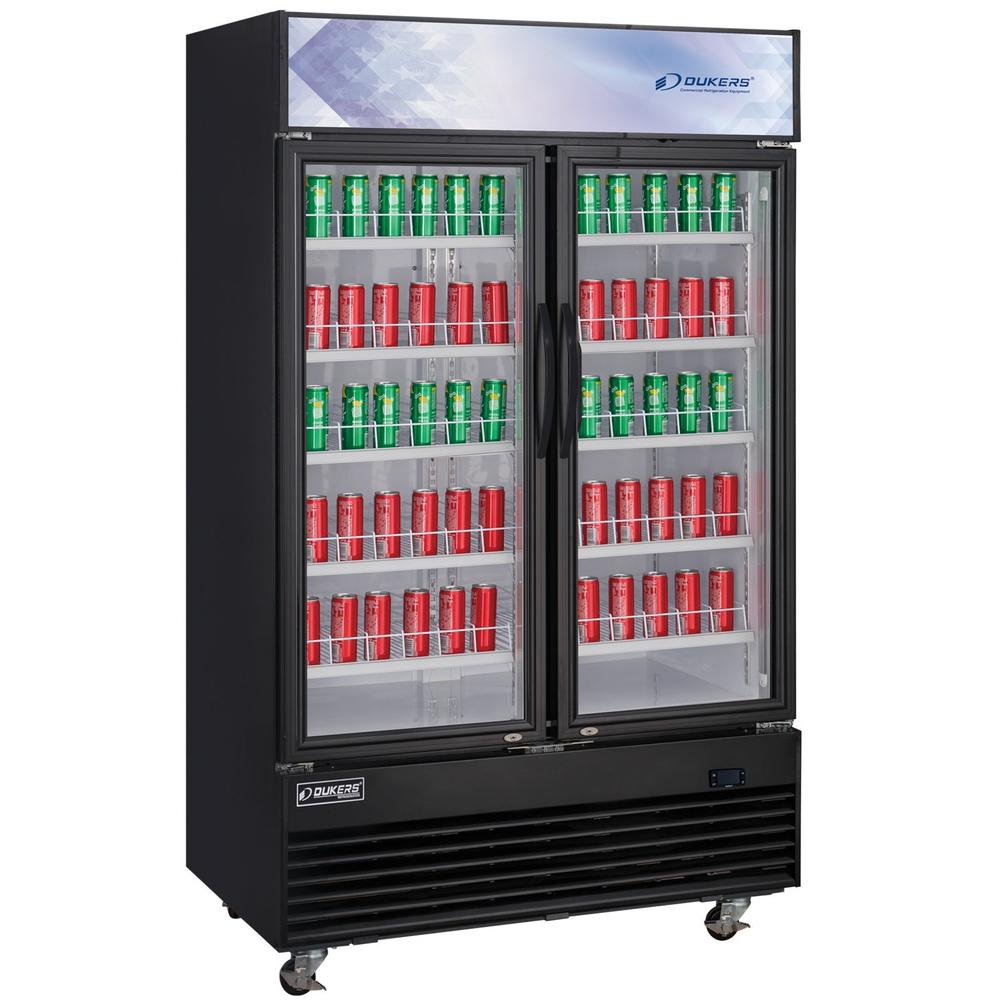

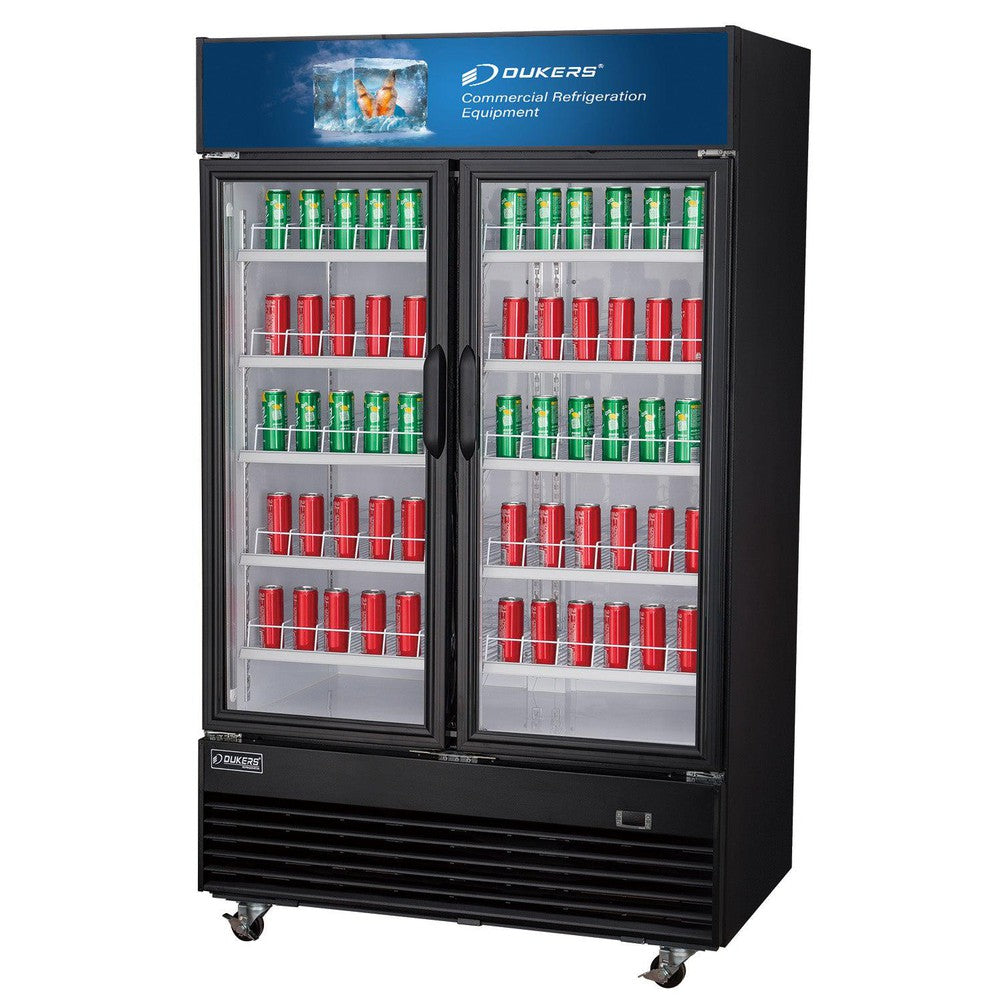

The Dukers DSM-48R holds 48.73 cu. ft. behind two hinged glass doors in a 54-1/8" wide black cabinet. It is the largest two-door hinged merchandiser Dukers builds, and the practical choice when a store wants the deep cold volume of a three-door case but only has four and a half feet of wall to give it.

Hinged doors on the widest two-door cabinet

Each door here covers roughly 27 inches of cabinet, which is the widest single opening in this class. On restock that means a full case goes in flat, in one motion, and a shelf can be faced end to end without repositioning. The trade-off is aisle depth: allow around two feet of clear floor in front of the unit so a customer is never blocking traffic while a door is open. If that clearance is not available, the sliding-door DSM-47SR covers nearly the same volume.

Ten adjustable shelves and a black surround

Five adjustable, removable wire shelves per section give ten levels, each adjustable independently of the other side. The black cabinet is a merchandising decision as much as a cosmetic one — lit product reads brighter and edges sharper against a dark surround, which is why branded beverage coolers are almost universally specified in black.

1/2 HP bottom mounted system on R290

The 1/2 HP compressor sits in the base, drawing 9.8 amps and 690 watts; give it a dedicated 115V branch circuit. Bottom mounting keeps the full height of both glass panels available for merchandising and puts the condenser coil at floor level where it can actually be cleaned. Refrigerant is R290 hydrocarbon with a 5.11 oz charge, holding the cabinet between 33°F and 40°F.

Specifications

Model DSM-48R
Type Glass door merchandiser refrigerator, two sections, swing doors
Capacity 48.73 cu. ft.
Exterior dimensions (W x D x H) 54-1/8" x 31-7/8" x 80-3/8"
Crate dimensions (W x D x H) 56-1/8" x 32-7/8" x 82-3/8"
Net weight 385 lbs
Temperature range 33°F to 40°F
Compressor 1/2 HP, bottom mounted
Electrical 115V / 60Hz / 9.8 amps / 690 watts
Refrigerant R290, 5.11 oz charge
Shelves 10 (5 per section), adjustable and removable
Doors 2 glass swing doors with lock
Finish Black
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
