Product Description

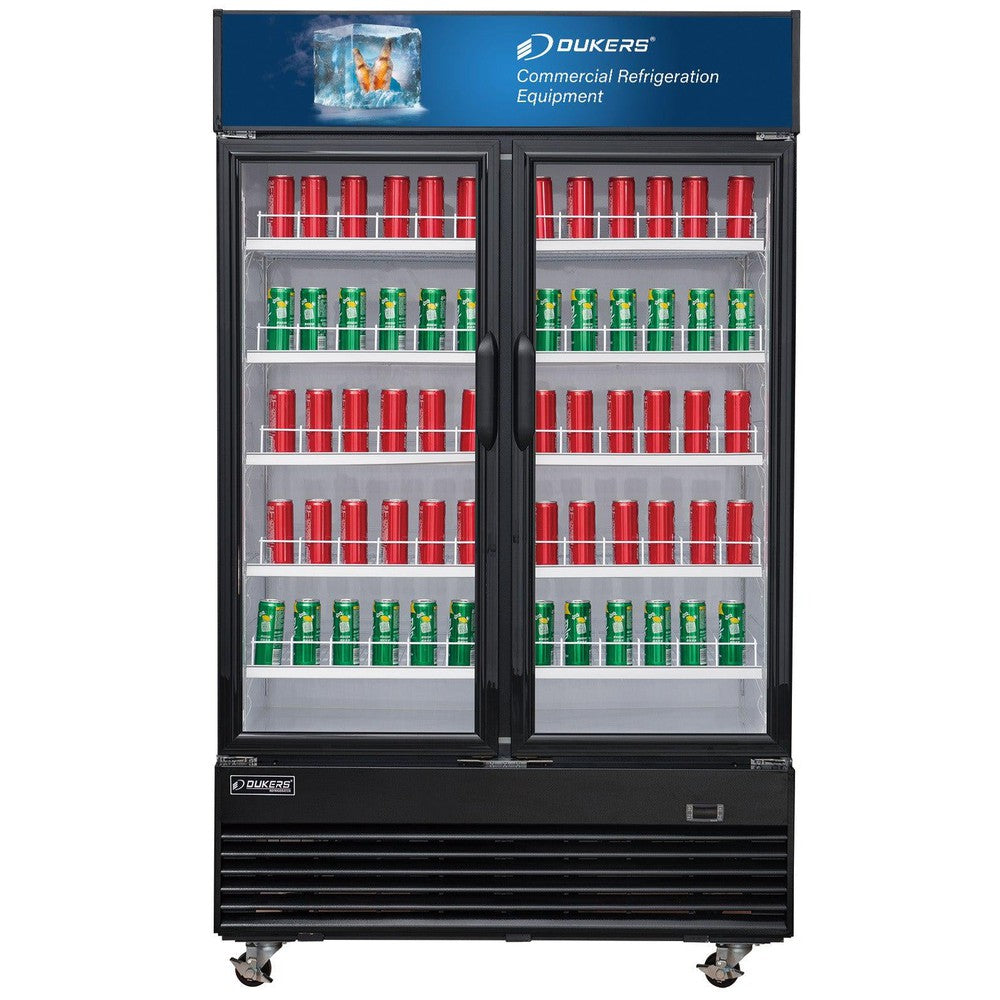

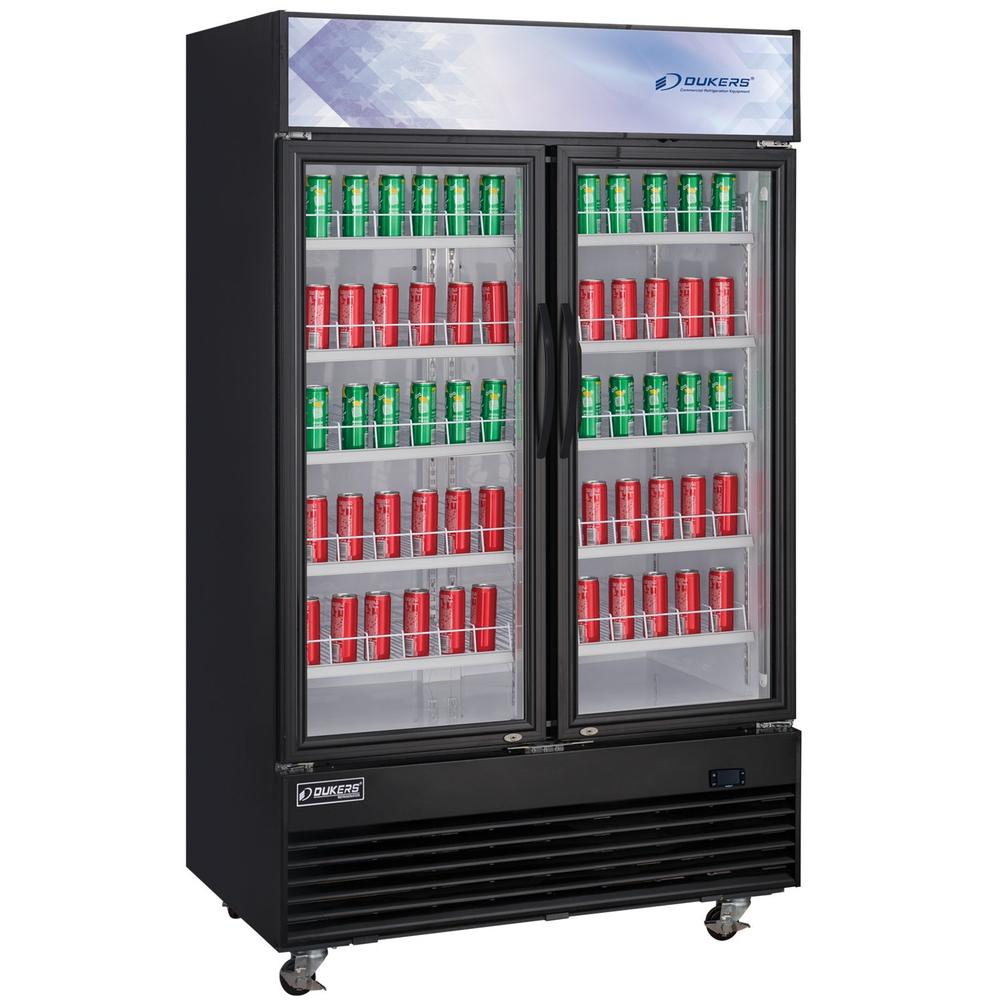

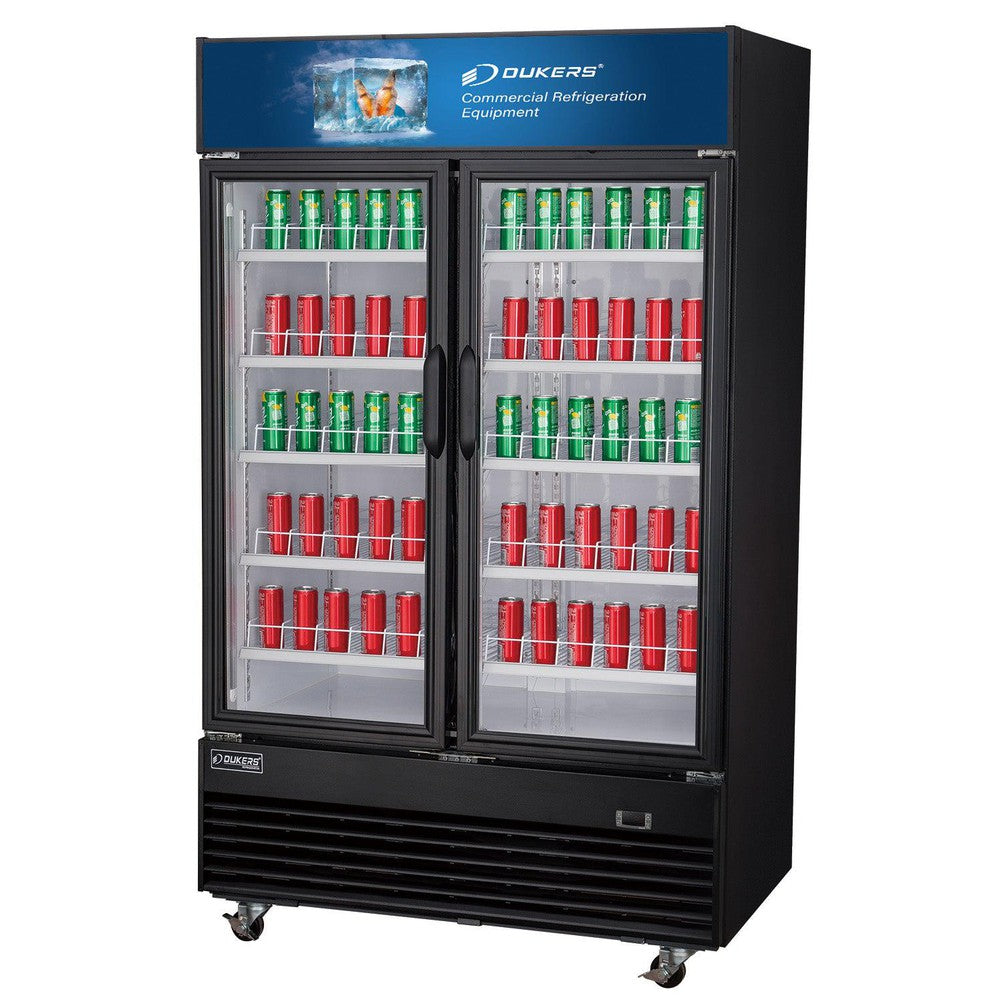

The Dukers DSM-41R is a two-door hinged glass merchandiser holding 41.28 cu. ft. in a 47-1/4" wide cabinet. It is the volume step between the 39" two-door and the 54" two-door: eight more cubic feet than the DSM-33R for eight more inches of wall, which is usually the better trade when floor space allows it.

Widest doors in the two-door class

Each hinged section on this cabinet is close to 23 inches wide, which is enough to slide a full case of 12 oz cans straight in without turning it. That matters on delivery day more than it does on the sales floor — the wider the door, the less handling per case, and the less time a restock leaves the box open to room air.

Ten adjustable shelves

Five adjustable, removable wire shelves per section give ten levels. The two sections adjust independently, so one side can be set up on tight spacing for cans and single-serve while the other runs taller bays for two-liter bottles, gallon jugs or packaged deli.

1/2 HP bottom mounted system on R290

A 41 cu. ft. cabinet behind glass needs real capacity to recover after a rush, so this model carries a 1/2 HP compressor drawing 8.8 amps and 690 watts — plan on a dedicated 115V branch circuit. Mounting it in the base keeps both glass panels clear top to bottom and puts the condenser coil where it can be brushed out without pulling the unit from the line. Refrigerant is R290 hydrocarbon, holding 33°F to 40°F.

Specifications

Model DSM-41R
Type Glass door merchandiser refrigerator, two sections, swing doors
Capacity 41.28 cu. ft.
Exterior dimensions (W x D x H) 47-1/4" x 31-7/8" x 80-3/8"
Net weight 363 lbs
Temperature range 33°F to 40°F
Compressor 1/2 HP, bottom mounted
Electrical 115V / 60Hz / 8.8 amps / 690 watts
Refrigerant R290
Shelves 10 (5 per section), adjustable and removable
Doors 2 glass swing doors with lock
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
