Product Description

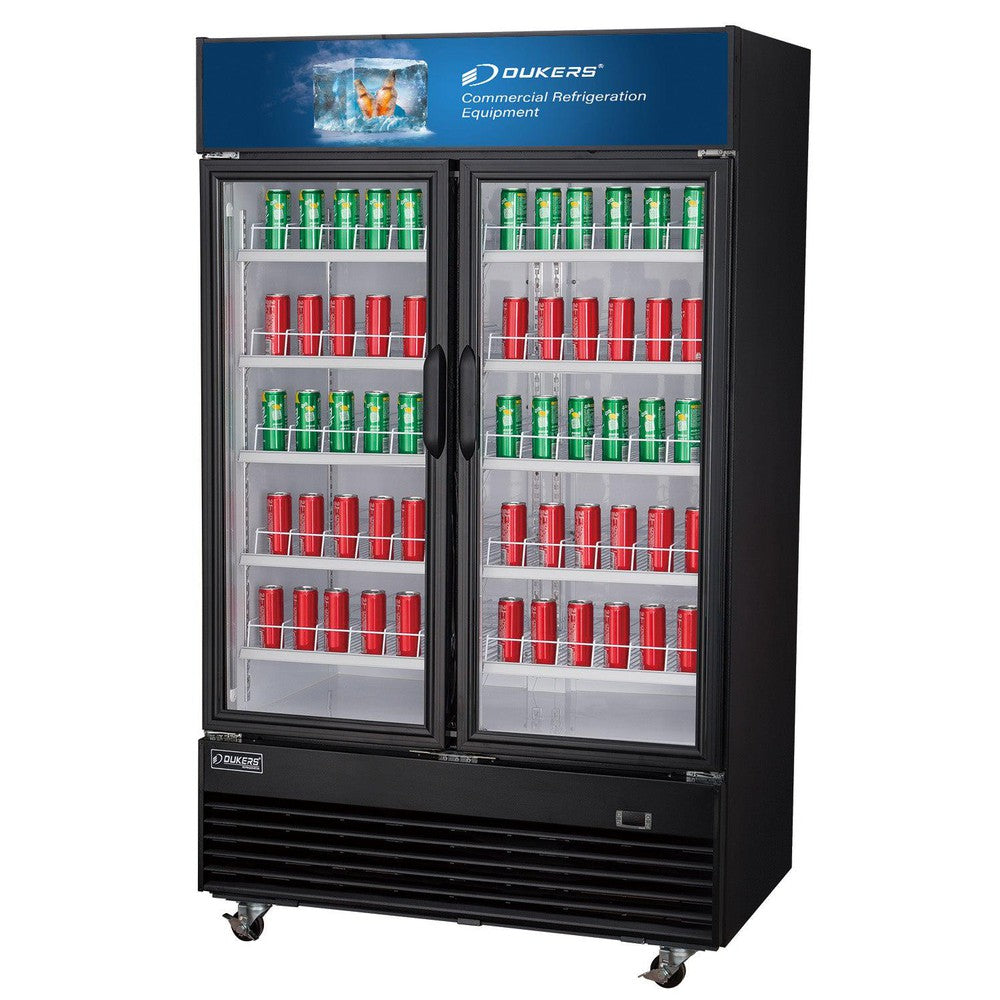

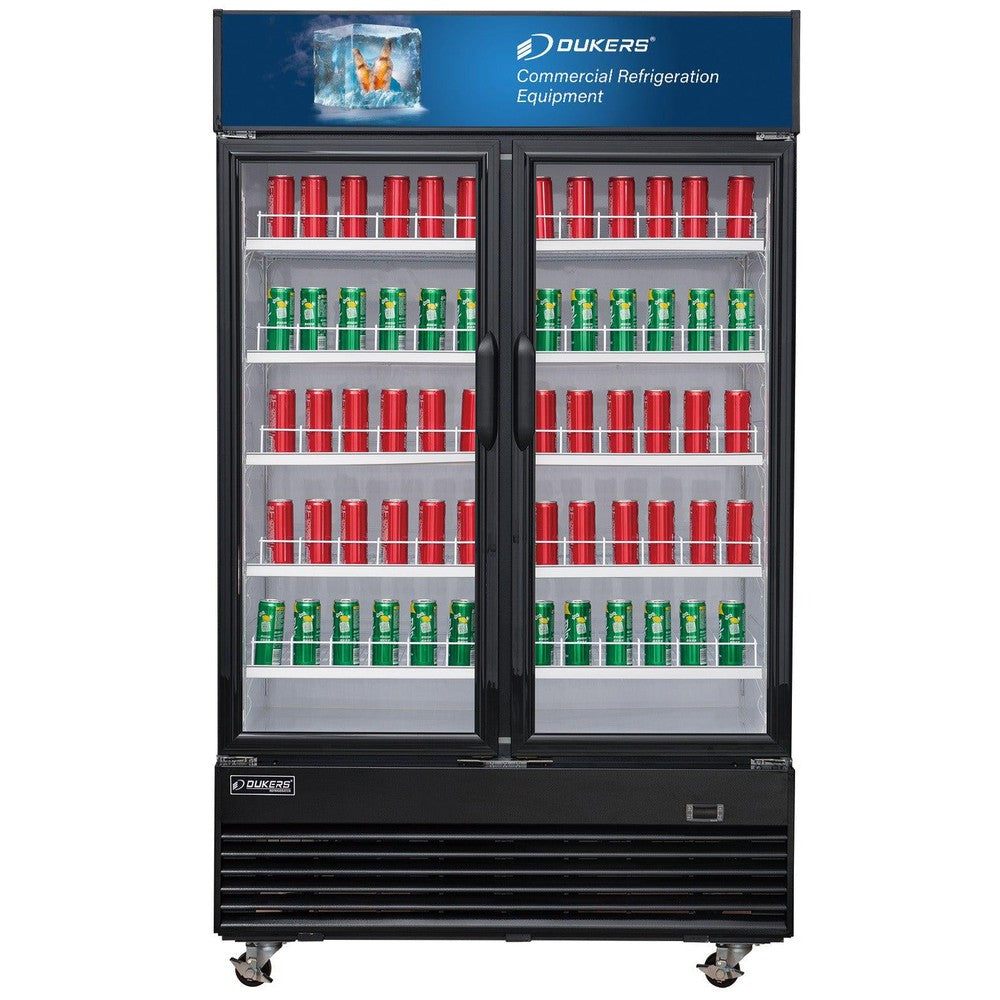

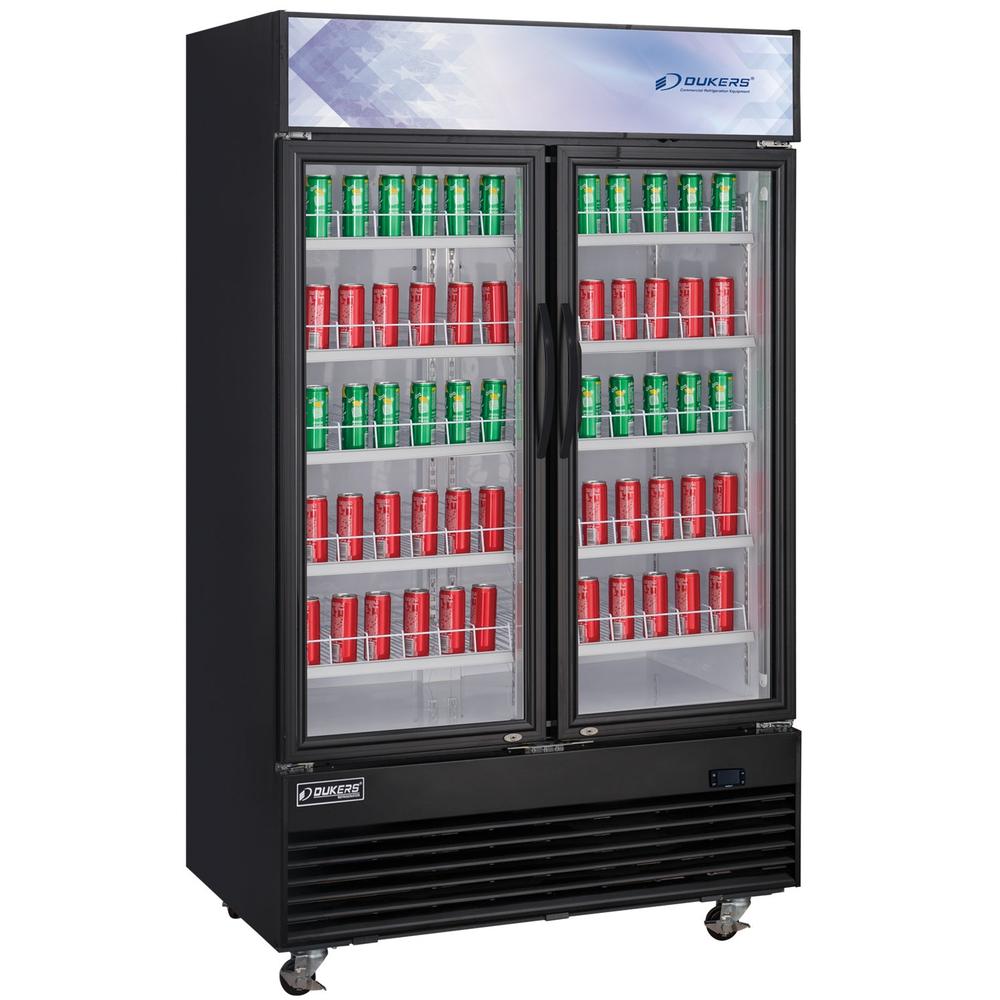

The Dukers DSM-33R is a two-door glass merchandiser holding 33.55 cu. ft. behind a pair of hinged, self-closing glass doors in a 39-3/8" wide cabinet. It is the standard two-door display cooler for a store that has the aisle depth to let doors swing and wants the widest possible opening when restocking.

Hinged doors restock faster than sliding ones

The practical difference between this and the sliding DSM-32SR shows up at delivery time. A hinged door opens the full section at once, so a whole shelf can be faced or a case dropped in with one motion, where a sliding panel forces you to work half a section at a time. Self-closing hinges mean the door does not get left ajar during a busy restock — the most common cause of a merchandiser drifting warm.

Ten adjustable shelves, five per section

Each section carries five epoxy-coated wire shelves that adjust independently, so the two halves can run entirely different planograms — tall bottles on one side, cans and single-serve on the other. Epoxy coating resists the corrosion that plain chrome wire develops where condensate collects along shelf fronts.

Bottom mounted refrigeration and R290

The 1/3 HP compressor and condenser are in the base of the cabinet. That keeps both glass panels clear from top to bottom for merchandising and puts service access at floor level rather than behind an overhead panel. The system holds 33°F to 40°F on 5.11 oz of R290 hydrocarbon refrigerant, drawing 3.8 amps and 430 watts from a standard 115V circuit.

Specifications

Model DSM-33R
Type Glass door merchandiser refrigerator, two sections, swing doors
Capacity 33.55 cu. ft.
Exterior dimensions (W x D x H) 39-3/8" x 31-7/8" x 80-3/8"
Crate dimensions (W x D x H) 40-3/8" x 32-7/8" x 82-3/8"
Net weight 297 lbs
Temperature range 33°F to 40°F
Compressor 1/3 HP, bottom mounted
Electrical 115V / 60Hz / 3.8 amps / 430 watts
Refrigerant R290, 5.11 oz charge
Shelves 10 epoxy coated wire shelves (5 per section), adjustable and removable
Doors 2 hinged glass doors, self-closing, with lock
Certifications NSF/ANSI 7; cETLus; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
