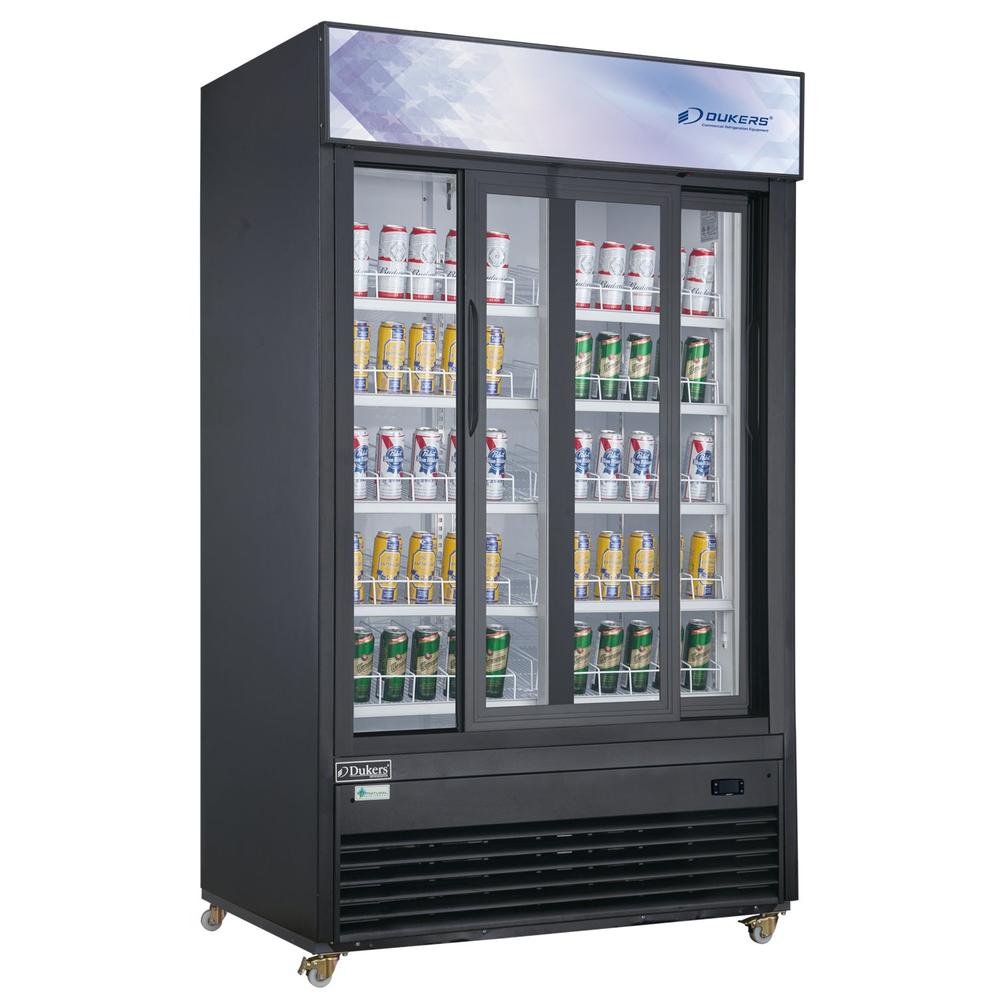

Dukers DSM-32SR two sliding glass door merchandiser refrigerator, front view

Product Description

The Dukers DSM-32SR is a two-section glass merchandiser with sliding doors, holding 33.29 cu. ft. in a 39-3/8" wide cabinet. Sliding doors are the reason to pick this model over the hinged DSM-33R: nothing swings out into the aisle, so the case can sit in a four-foot walkway or directly across from a fixture without a customer having to back up to open it.

Sliding doors and aisle clearance

A hinged glass door on a 39" cabinet needs roughly 20 inches of swing clearance in front of it. Sliding doors need none. In a convenience store, deli or cafeteria queue where the merchandiser has to go against a traffic lane, that difference decides whether the unit fits at all. Sliding panels also mean a customer can only ever open half the case at once, which cuts the air exchange on every reach-in.

Ten shelves across two sections

Five epoxy-coated wire shelves per section give you ten independently adjustable levels. Running two sections lets you separate categories cleanly — carbonated on one side, dairy and prepared food on the other — without the two planograms bleeding into each other.

Bottom mounted 1/3 HP system on R290

The 1/3 HP compressor sits under the cabinet, keeping the full glass face clear and putting the condenser within reach for cleaning. It carries 5.11 oz of R290 hydrocarbon refrigerant and holds 33°F to 40°F, drawing 3.8 amps and 430 watts from a standard 115V/60Hz circuit.

Specifications

Model DSM-32SR
Type Glass door merchandiser refrigerator, two sections, sliding doors
Capacity 33.29 cu. ft.
Exterior dimensions (W x D x H) 39-3/8" x 31-7/8" x 80-1/4"
Net weight 297 lbs
Temperature range 33°F to 40°F
Compressor 1/3 HP, bottom mounted
Electrical 115V / 60Hz / 3.8 amps / 430 watts
Refrigerant R290, 5.11 oz charge
Shelves 10 epoxy coated wire shelves (5 per section), adjustable and removable
Doors 2 sliding glass doors with lock
Certifications NSF/ANSI 7; cETLus; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
