Product Description

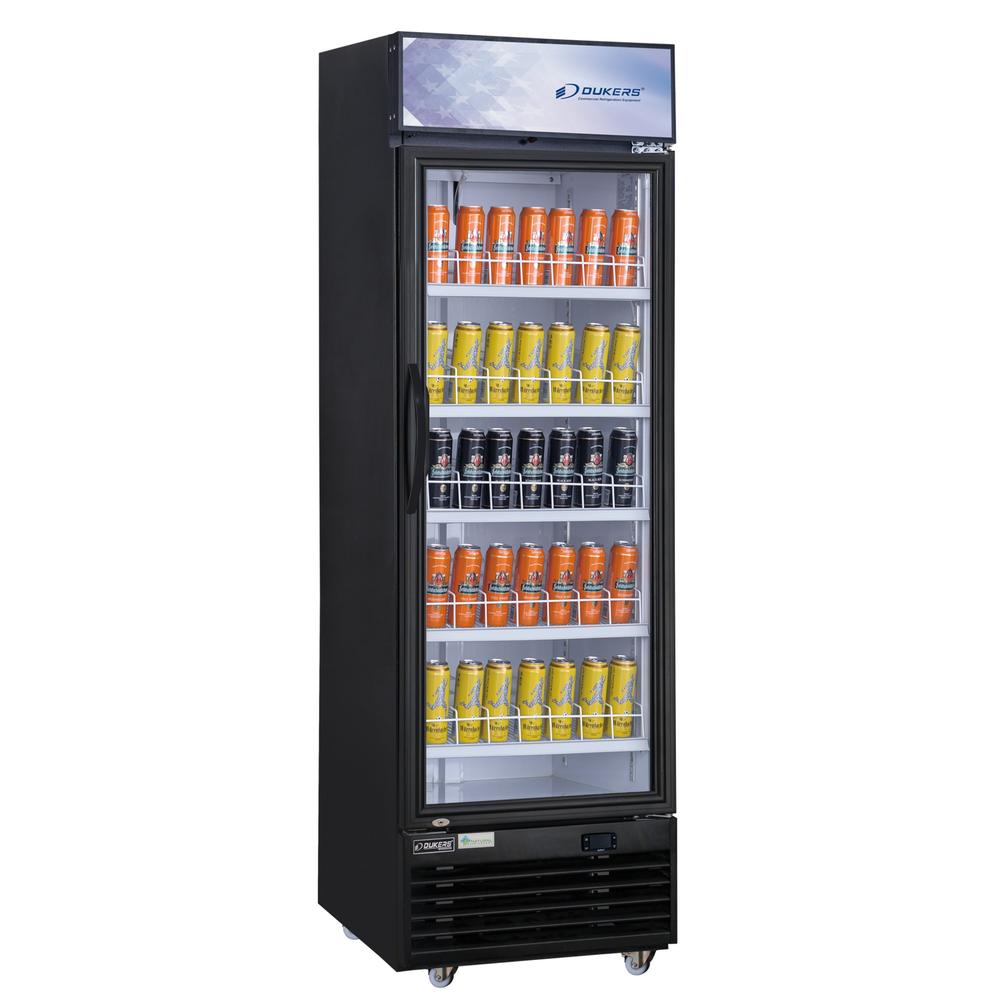

The Dukers DSM-15R is a 27-1/8" wide single glass door merchandiser holding 14.72 cu. ft. of chilled product. It is a step up from the narrow 24" class — the extra width buys a fifth shelf and a noticeably wider facing, which is what determines how much of an assortment a customer actually sees when they walk past.

Five shelves instead of four

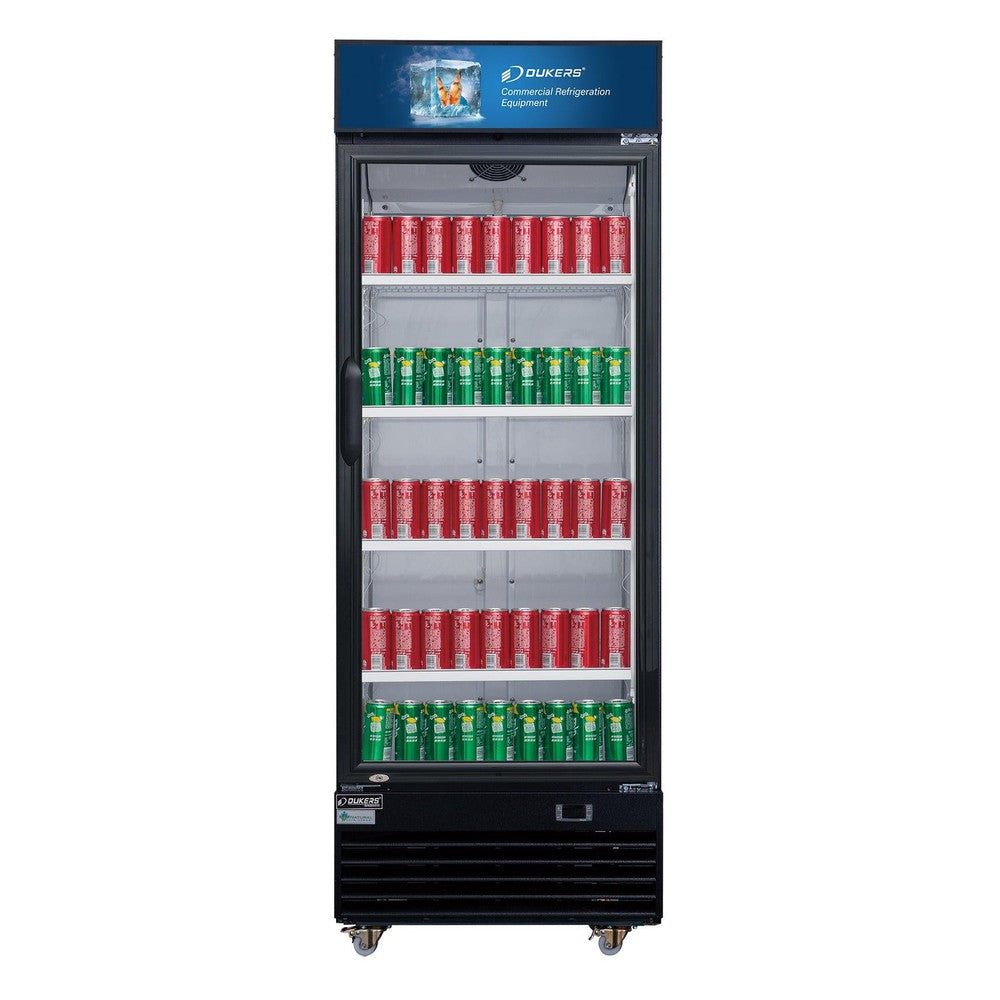

The five adjustable wire shelves let you run tighter vertical spacing across the middle of the cabinet, where impulse product sells best, and leave a taller bay at the bottom for gallon jugs or two-liter bottles. Each shelf lifts out completely, so a spilled case of soda does not turn into an hour of scrubbing around fixed racks.

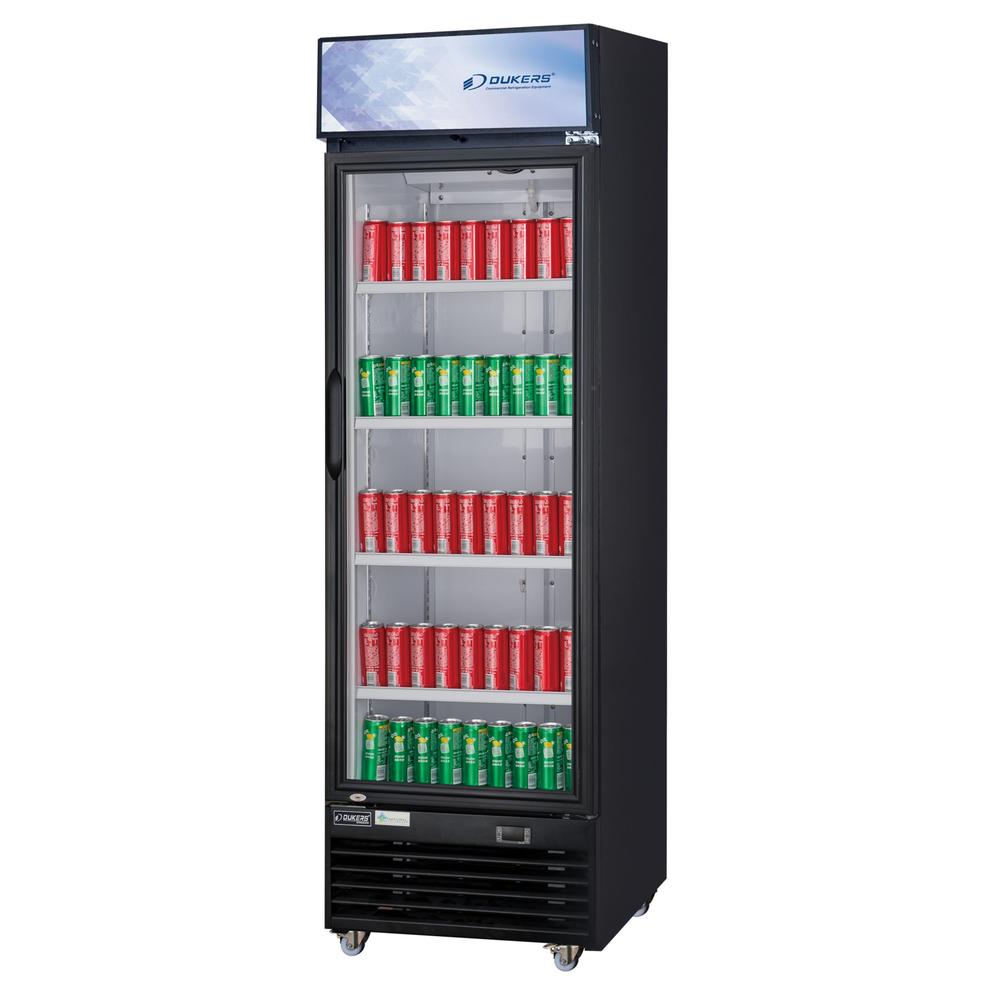

Bottom mounted refrigeration

Housing the 1/5 HP compressor and condenser in the base keeps the full height of the glass clear for merchandising and puts the service access at waist level. It also means the heat rejected by the condenser leaves at floor level rather than warming the top of your product stack.

R290 and standard 115V power

The system uses R290 hydrocarbon refrigerant with a 2.82 oz charge and holds the cabinet between 33°F and 40°F. Draw is 2.3 amps and 260 watts on a standard 115V/60Hz circuit, which is low enough that the unit can go almost anywhere on a retail floor without an electrician's involvement.

Specifications

Model DSM-15R
Type Glass door merchandiser refrigerator, one section, swing door
Capacity 14.72 cu. ft.
Exterior dimensions (W x D x H) 27-1/8" x 26" x 75-7/8"
Net weight 241 lbs
Temperature range 33°F to 40°F
Compressor 1/5 HP, bottom mounted
Electrical 115V / 60Hz / 2.3 amps / 260 watts, NEMA 5-15P plug
Refrigerant R290, 2.82 oz charge
Shelves 5, adjustable and removable
Doors 1 glass swing door with lock
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
