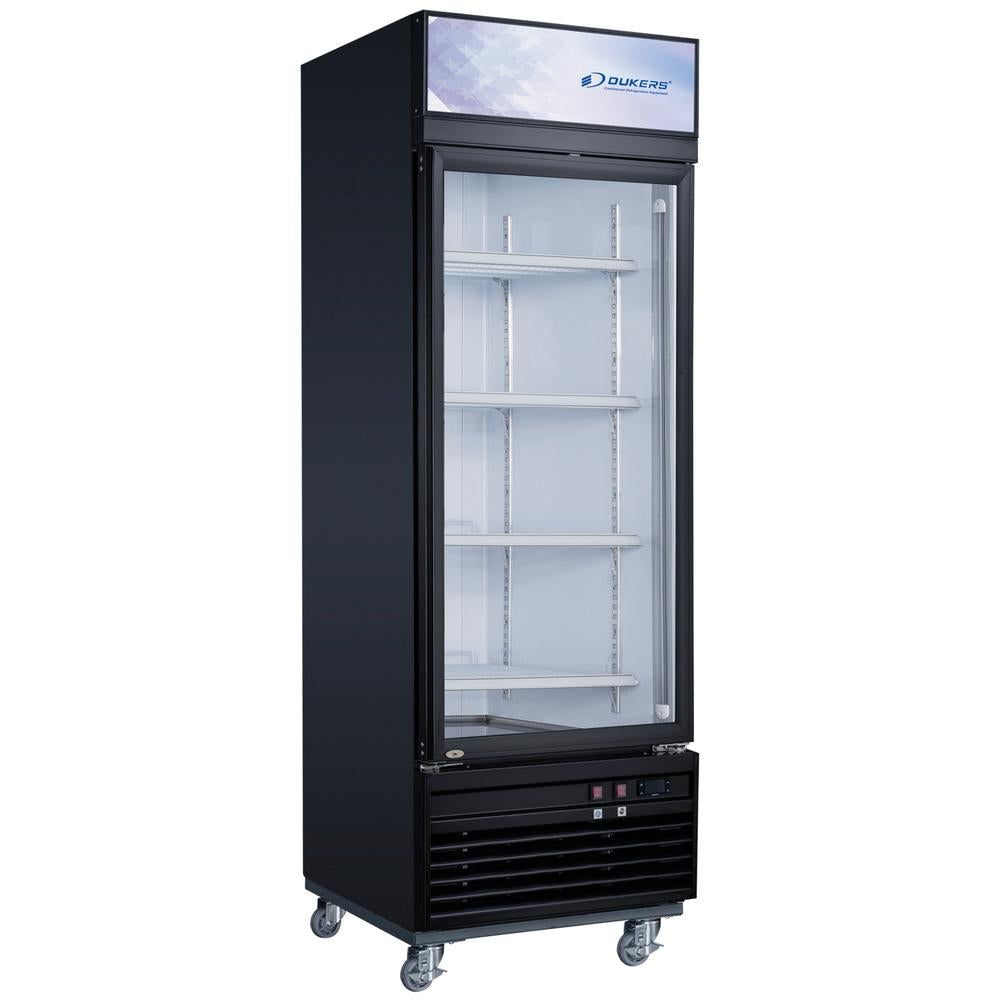

Dukers DSM-15F single glass swing door merchandiser freezer, front view

Product Description

The Dukers DSM-15F is a single glass door merchandiser freezer that holds 14.9 cu. ft. at true frozen temperature in a 27-1/8" wide cabinet. It is the unit to reach for when frozen product has to be visible to sell — novelty ice cream, frozen meals, ice, bagged fruit — in a convenience store, bodega, cafeteria line or small grocery.

Freezer-grade refrigeration, not a cold refrigerator

This cabinet holds 0°F down to -8°F, which is the range that keeps ice cream scoopable-hard and prevents the freeze-thaw cycling that puts ice crystals in packaged product. Getting there through a glass door takes considerably more work than a solid door, which is why the DSM-15F carries a 3/4 HP compressor — roughly four times the horsepower of a same-size glass door refrigerator.

Glass door on a frozen cabinet

The door glass is what allows a frozen product to be merchandised at all, but it is also the biggest heat path into the box. Keep the unit out of direct sunlight and away from the discharge of a nearby make-up air diffuser; both will drive condensation on the outer pane and force longer run times. The door locks, so the case can be secured overnight without moving product.

Coated stainless shelving and R290

Four adjustable, removable coated stainless steel shelves handle the moisture load of a freezer better than plain wire, and they come out entirely when it is time to clean. The system uses R290 hydrocarbon refrigerant with a 5.11 oz charge, and runs on a standard 110V/60Hz circuit through a NEMA 5-15P plug — no dedicated high-voltage drop required.

Specifications

Model DSM-15F
Type Glass door merchandiser freezer, one section, swing door
Capacity 14.9 cu. ft.
Exterior dimensions (W x D x H) 27-1/8" x 29-1/4" x 80-1/4"
Crate dimensions (W x D x H) 29-1/8" x 30-1/8" x 82-5/8"
Net weight 264 lbs
Temperature range 0°F to -8°F
Compressor 3/4 HP, bottom mounted
Electrical 110V / 60Hz, NEMA 5-15P plug
Refrigerant R290, 5.11 oz charge
Shelves 4, coated stainless steel, adjustable and removable
Doors 1 glass swing door with lock
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this glass door merchandiser freezer with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
