Product Description

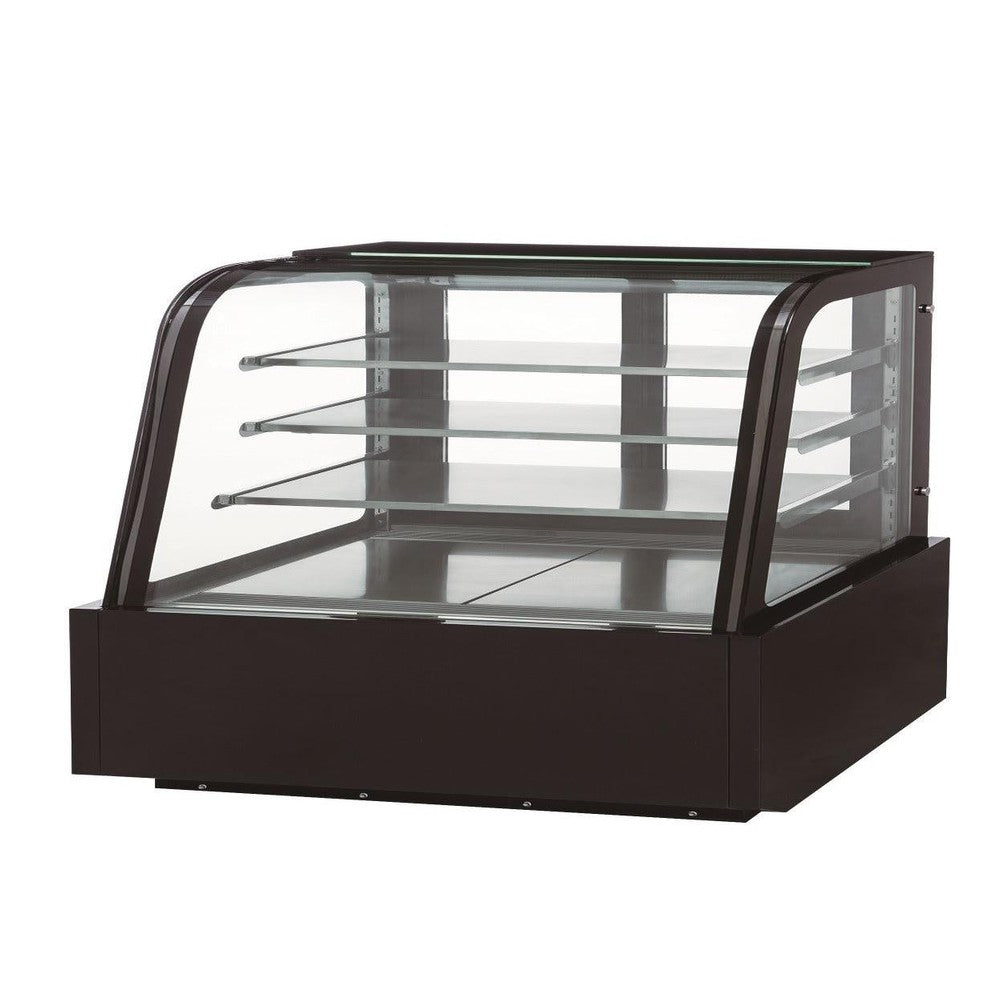

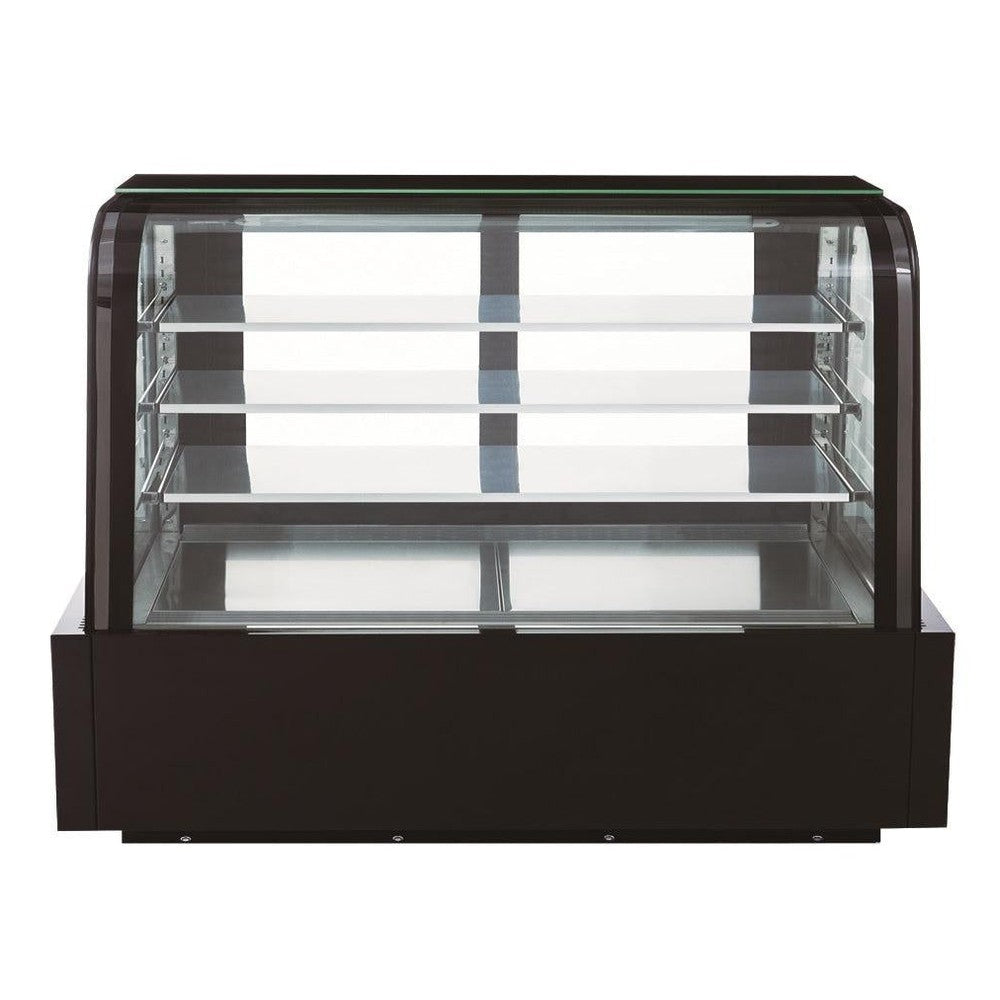

The Dukers DDM72R-CB is the largest curved glass cake showcase in this Dukers line, sized for production bakeries, supermarket pastry departments and hotel banquet service. It presents product on three shelves behind bowed front glass in a 72" wide cabinet held at 33°F to 41°F.

Curved glass across six feet

Curved glass exists to solve one problem: from where a customer actually stands, a vertical pane shows the front edge of a shelf, while a bowed pane carries the display plane forward and shows the decorated top. Across six feet that turns the whole case into a single sweep of visible product. Check the space first, though — at 29-7/8" deep and 53-1/2" tall the curved cabinet runs deeper and taller than the straight glass DDM72R's 28-1/2" and 51".

A larger compressor for the larger cabinet

Where the 36" through 60" curved cases use a 4/9 HP compressor, this one steps up to 4/7 HP. That reserve is what holds temperature evenly from one end of a six-foot cabinet to the other when the case is fully loaded and opened repeatedly through a morning rush — the alternative is a system that runs continuously and lets the far end from the evaporator drift out of the 33°F to 41°F band.

Construction, lighting and controls

Stainless steel interior and exterior in a black finish over a copper evaporator coil; copper moves heat more efficiently than aluminum and stands up better to the humidity swings a pastry case cycles through during service. Interior and canopy LED lighting is switched from the right side so it can be killed at close without touching refrigeration, a digital readout shows actual cabinet temperature for the log, and defrost is automatic. The system uses R290 natural refrigerant and a standard NEMA 5-15P outlet.

Specifications

Model DDM72R-CB
Type Refrigerated bakery display case, curved glass with side glass
Exterior dimensions (W x D x H) 72" x 29-7/8" x 53-1/2"
Crate dimensions (W x D x H) 74-5/8" x 33-3/8" x 56-1/8"
Net weight 661 lbs
Gross weight 728 lbs
Temperature range 33°F to 41°F
Compressor 4/7 HP
Electrical NEMA 5-15P plug
Refrigerant R290 natural refrigerant
Evaporator Copper
Defrost Automatic

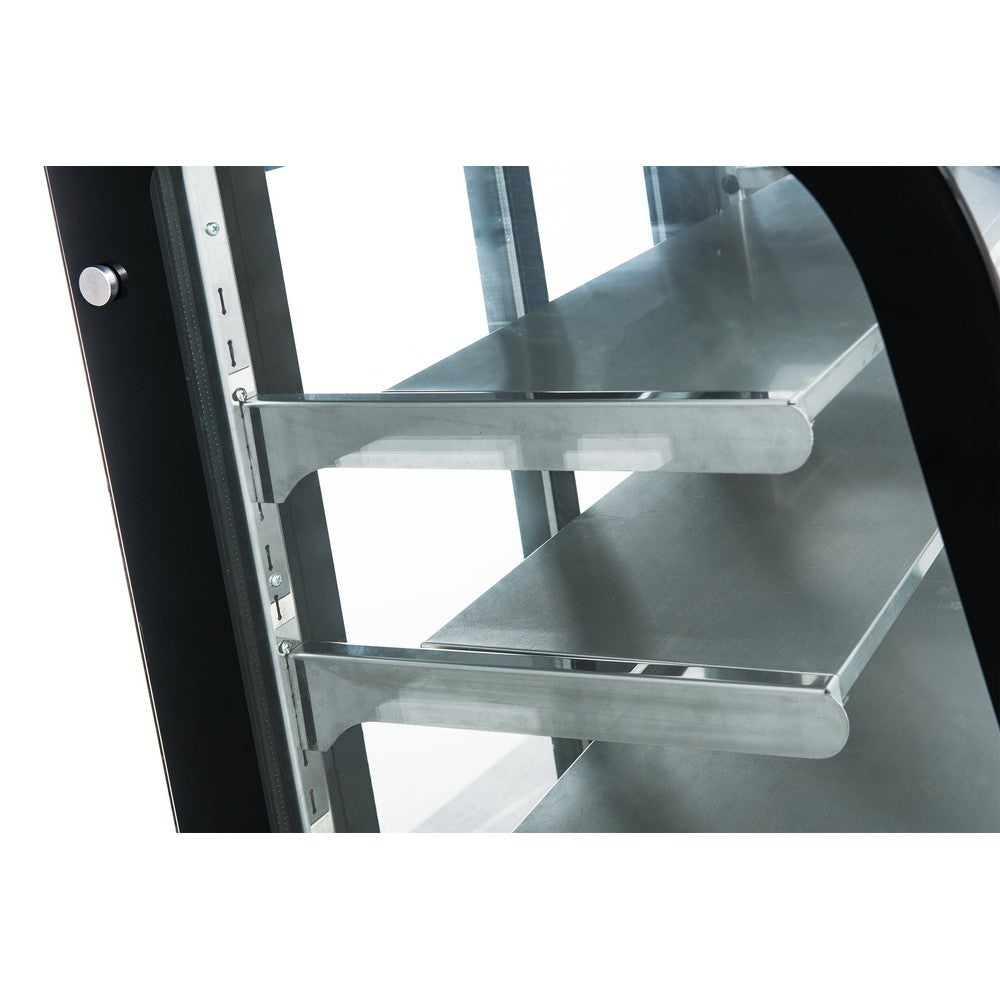

Shelves 3
Lighting Interior and canopy LED with switch on the right side
Display Digital temperature readout
Construction Stainless steel interior and exterior, black finish
Certifications Sanitation Listed
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
