Product Description

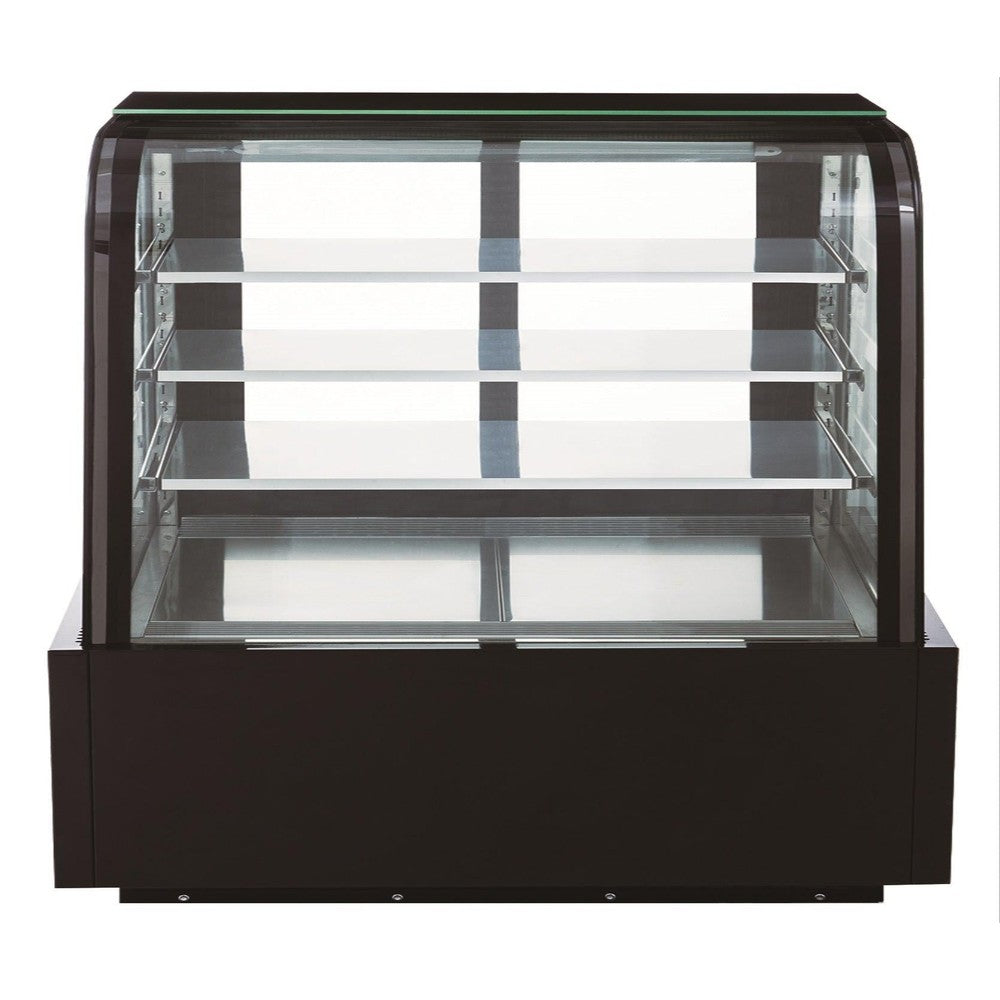

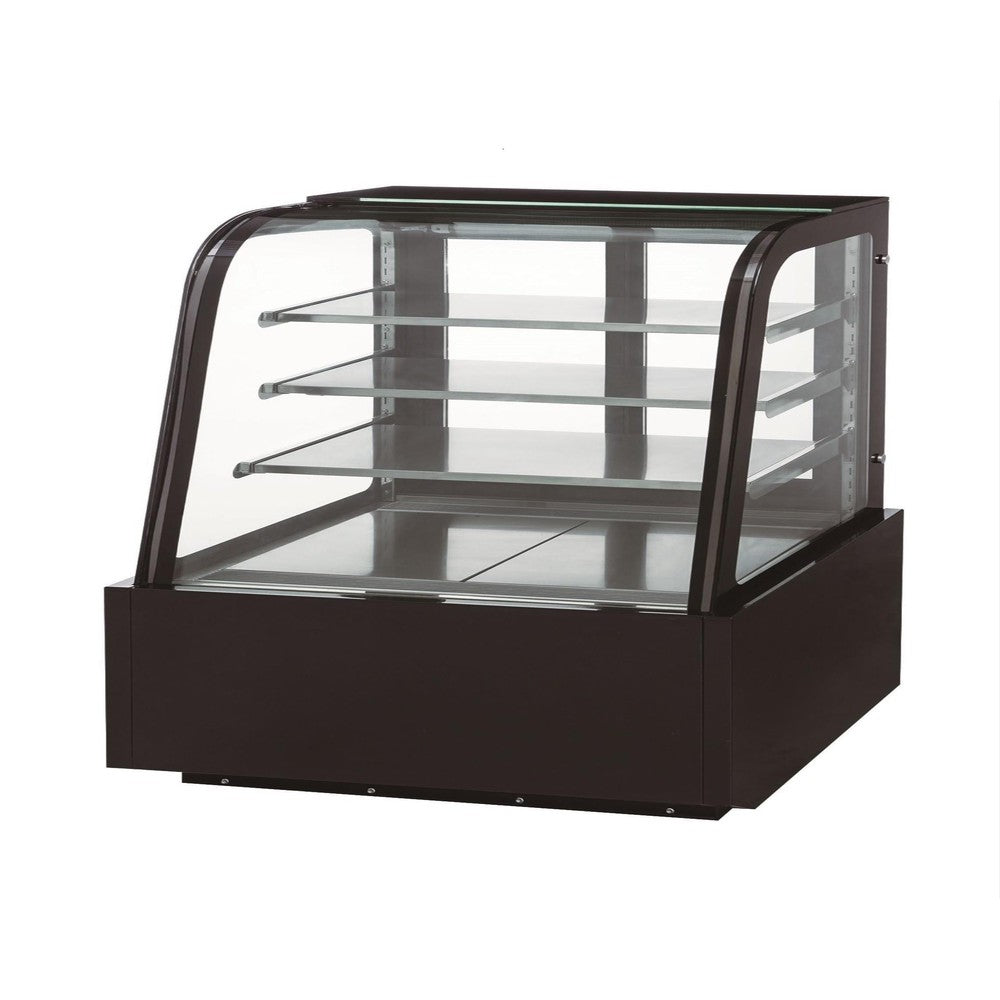

The Dukers DDM60R-CB is a five-foot curved glass cake showcase for production bakeries, supermarket pastry departments and hotel service counters. It holds product on three shelves in a 60" wide cabinet at 33°F to 41°F — safe for cream and custard fillings without stiffening buttercream.

Curved glass across five feet

The bowed front pane carries the display surface forward at eye level, so the customer sees the decorated top of each shelf rather than its front edge. Across a five-foot case that presentation covers a whole assortment at once. Plan the space accordingly: at 29-7/8" deep and 53-1/2" tall this cabinet is over an inch deeper and two and a half inches taller than the straight-glass DDM60R, which is enough to matter under a soffit or against a tight service aisle.

Lighting and controls

Interior and canopy LED lighting switches from the right side, so the case can be lit for trade and darkened at close without interrupting refrigeration. A digital display gives the actual cabinet temperature rather than a dial position, which is what your temperature log and an inspector both want. Defrost is automatic, so no shutdown needs scheduling and the cabinet does not swing warm while a cycle runs.

Construction and refrigeration

Stainless steel interior and exterior in a black finish, over a copper evaporator coil — copper transfers heat better than aluminum and holds up to the repeated humidity cycling a display case experiences during service. The 4/9 HP system uses R290 natural refrigerant, with a global warming potential in the single digits rather than the thousands, and runs from a standard NEMA 5-15P outlet.

Specifications

Model DDM60R-CB
Type Refrigerated bakery display case, curved glass with side glass
Exterior dimensions (W x D x H) 60" x 29-7/8" x 53-1/2"
Crate dimensions (W x D x H) 63" x 33-3/8" x 56-1/8"
Net weight 595 lbs
Gross weight 661 lbs
Temperature range 33°F to 41°F
Compressor 4/9 HP
Electrical NEMA 5-15P plug
Refrigerant R290 natural refrigerant
Evaporator Copper
Defrost Automatic

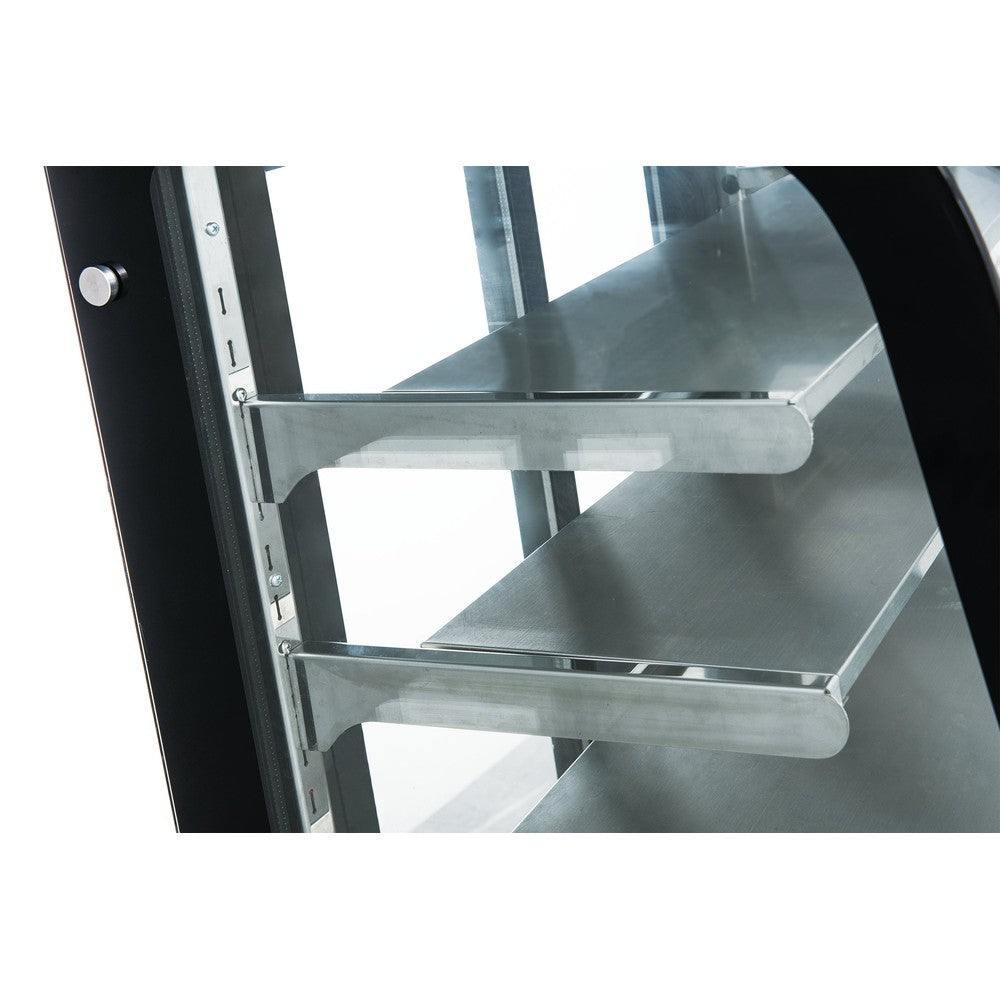

Shelves 3
Lighting Interior and canopy LED with switch on the right side
Display Digital temperature readout
Construction Stainless steel interior and exterior, black finish
Certifications Sanitation Listed
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
