Product Description

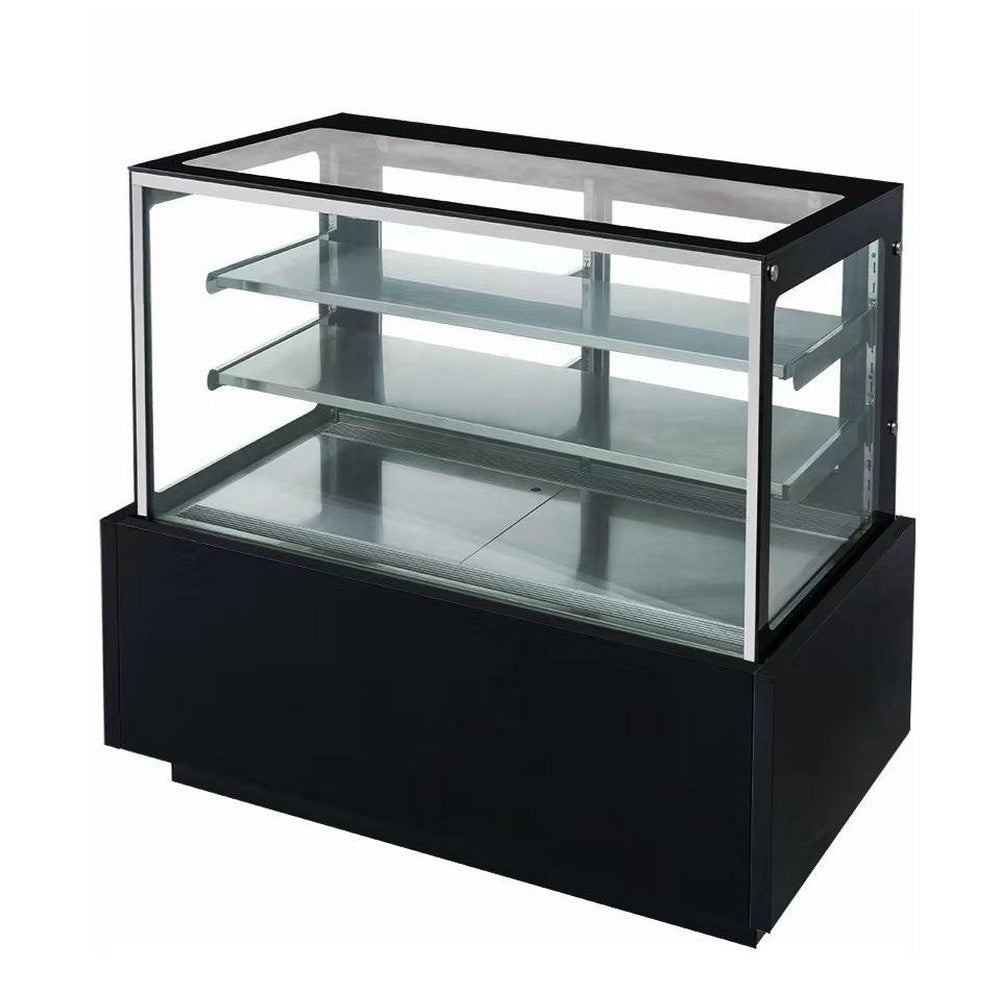

The Dukers DDM48R is a four-foot refrigerated cake showcase for bakeries, cafes, delis and grocery pastry departments. It carries product on three shelves behind straight front glass in a 48" wide cabinet, holding 33°F to 41°F — cold enough for cream and custard fillings, warm enough that buttercream and sponge do not stiffen.

The extra foot of display face

Stepping from 36" to 48" adds a full foot of frontage on every one of the three shelves without changing depth or height, which stay at 28-1/2" and 51". In practice that is the difference between merchandising one product family per shelf and running two side by side — whole cakes next to slices, or savoury next to sweet — so the case can hold a wider assortment without a second cabinet or a second compressor to service.

Straight glass and side panels

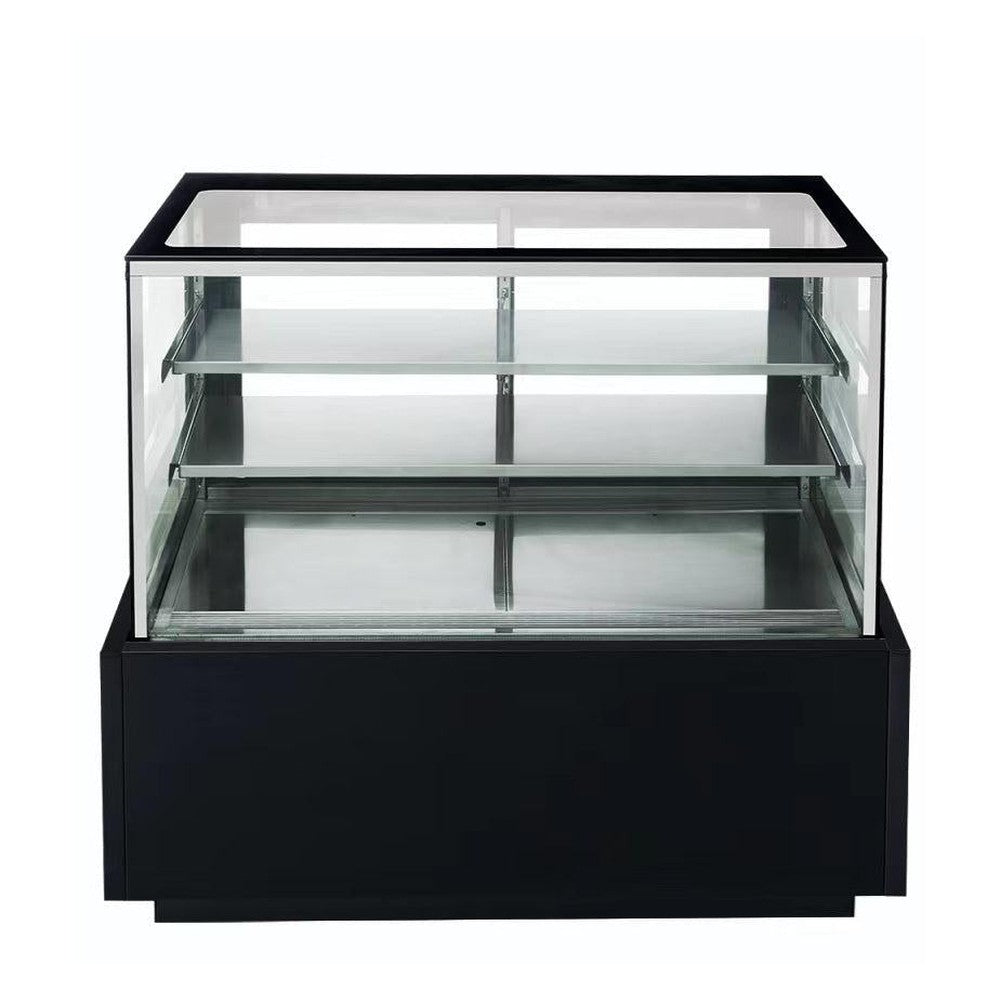

The vertical front pane keeps reflections predictable under overhead lighting and shows decorated tops and lettering without the optical bend a curved pane introduces. Glass side panels open the case at both ends so it works as an island or the end of a counter run, visible to customers approaching from an angle rather than only head-on.

Lighting, controls and refrigeration

Switched interior and canopy LED lighting lets staff light the case for trade and shut it off at close without touching refrigeration. A digital readout shows the actual cabinet temperature, which is what a HACCP log needs, and defrost is automatic so there is no manual cycle to schedule. Construction is stainless steel inside and out in a black finish over a copper evaporator; the 4/9 HP system runs on R290 natural refrigerant from a standard NEMA 5-15P outlet.

Specifications

Model DDM48R
Type Refrigerated bakery display case, straight glass with side glass
Exterior dimensions (W x D x H) 48" x 28-1/2" x 51"
Crate dimensions (W x D x H) 51-1/8" x 33-1/2" x 56-1/4"
Net weight 485 lbs
Gross weight 540 lbs
Temperature range 33°F to 41°F
Compressor 4/9 HP
Electrical NEMA 5-15P plug
Refrigerant R290 natural refrigerant
Evaporator Copper
Defrost Automatic
Shelves 3
Lighting Interior and canopy LED with switch
Display Digital temperature readout
Construction Stainless steel interior and exterior, black finish
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
